SIPLACE Pro V13.1 / Software Version Description 05/2016 Edition
30

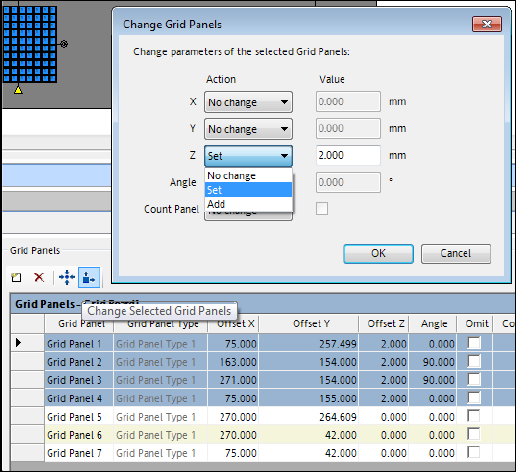

Figure 4-26:Changing grid panels
4.15 SIPLACE SiCluster Professional – Enhancements
As of this SIPLACE Pro version, the existing CSV file import function as available for SIPLACE
SiCluster Multiline has been integrated into SIPLACE SiCluster Professional. Only the import mode
of the production order data is relevant for SIPLACE SiCluster Professional.
Each row of the CSV file will be imported as a Cluster Recipe of the Cluster Job opened in
SIPLACE SiCluster Professional.
4.16 SIPLACE SiCluster Multiline – Enhancements
As of this SIPLACE Pro version, the Line Specific Output Folders option has been introduced in
SIPLACE SiCluster Multiline.
If the option is enabled, the output objects are created in subfolders. The name of each subfolder is
the name of the line object (without the path) of the corresponding line.
The following further SIPLACE SiCluster MultiLine enhancements were added since the initial
release:
– A new "Different Line Rule" rule type allows selecting recipes that have to be assigned to
different lines.
– The CSV wizard supports automatic creation of SameJob groups.
– The CSV wizard is able to add board objects from subfolders.
– Ideal cycle times can be calculated or invalidated selectively.
– The rule and process requirement dialogs now supports object filtering.
SIPLACE Pro V13.1 / Software Version Description 05/2016 Edition
31
4.17 Discontinued Features
Aegis CAD parser is not available in the CAD Data Import wizard under Tools/Import/ in
SIPLACE Pro Desk any more.
4.18 SIPLACE Pro Installation
– SIPLACE Pro will be installed by using a new installation program based on Windows Installer
XML (short: WiX Toolset).
4.19 Exporting to Previous SIPLACE Pro Versions
SIPLACE Pro 13.1 supports the export of SiPro files to the following versions:
– SIPLACE Pro 12.1
– SIPLACE Pro 13.0
The export is only possible if compatible features to the target version are used, otherwise an error
message is displayed.
The target version of the export can be selected in the Save As file dialog of the Data Model
Export.
SIPLACE Pro V13.1 / Software Version Description 05/2016 Edition
32
5 Restrictions
In the following, existing restrictions in SIPLACE Pro are described.
Miscellaneous
– 10-fold and 15-fold stick magazines can not be combined on the same linear feeder.
– SIPLACE Pro object names (e.g., recipe) must not exceed 125 ASCII characters (including
folder names). If the station software is 504 or older, these names are shortened to 20 ASCII
characters.
– If various users optimize the same job at the same time, the job which was most recently
completed successfully will overwrite all corresponding recipes
– The operator must manually place manual tray carriers (Carrier 30, Carrier 51, Carrier X,
Carrier SX, Arbitrary Carrier), glue feeders and dip modules in the initial setup.
– If you work with reduced acceleration for a component shape, this is seen as a "special case"
and the accuracy of 5% for the simulated Optimizer production time will not be achieved.
– The Optimizer does not check if the tray size is bigger than the carrier.
– The WPC can take up to 10 different component types per level. This restriction does not apply
for machines from station software version 70x.
Station-wise Download
– When the line control server is rebooted, station-wise downloading will be canceled. After
rebooting, you will need to perform a complete line download to restart production.
– Station-wise downloading supports setup changes in asynchronous dual operation only when
you have the same definition for both lanes.
– Station-wise downloading supports synchronous dual operation as of station software version
704.
ASCII Centroid Import
If component shapes are selected in the ASCII Centroid Import Wizard, all the existing links
between components and component shapes will be overwritten with the imported information.
WPC5 / WPC6
– Components up to a height of 30mm can be placed with a force of 70N with the WPC5 as of
serial number 1485 and the WPC6 as of serial number C1486 only.
– Components up to a height of 40mm can be placed with the WPC5 as of serial number B3000
and the WPC6 as of serial number C3000.
– Due to the refill module, components > 25mm cannot be positioned on the levels 1 – 3 and
27 – 28 on the WPC6. The levels 4 – 28 will be set up automatically by the SIPLACE Pro
Optimizer. The levels 1 – 3 have to be blocked manually by the operator.
X4i S placement machine
– The traveling range in X direction is limited for the gantries 2 and 4 on the X4i S placement
machine.
– If a pin picker is installed on the X4i S placement machine, the maximum board length is
410mm.
