User’s Manual Test Program S ITEST 0 Introduction to the User Interface of the Test P rogram Software Version 403.xx Edition 12/97 0.3 User Interface - Displays 0 - 25 0.3.6 "Flux Dispenser" Display, SIPLACE 80…
0 Introduction to the User Interface of the Test Program User’s Manual Test Program SITEST
0.3 User Interface - Displays Software Version 403.xx Edition 12/97
0 - 24
0.3.5 "IC Head" Display, SIPLACE 80F
4
From the "IC head" display, all functions concerning the IC head can be called up.

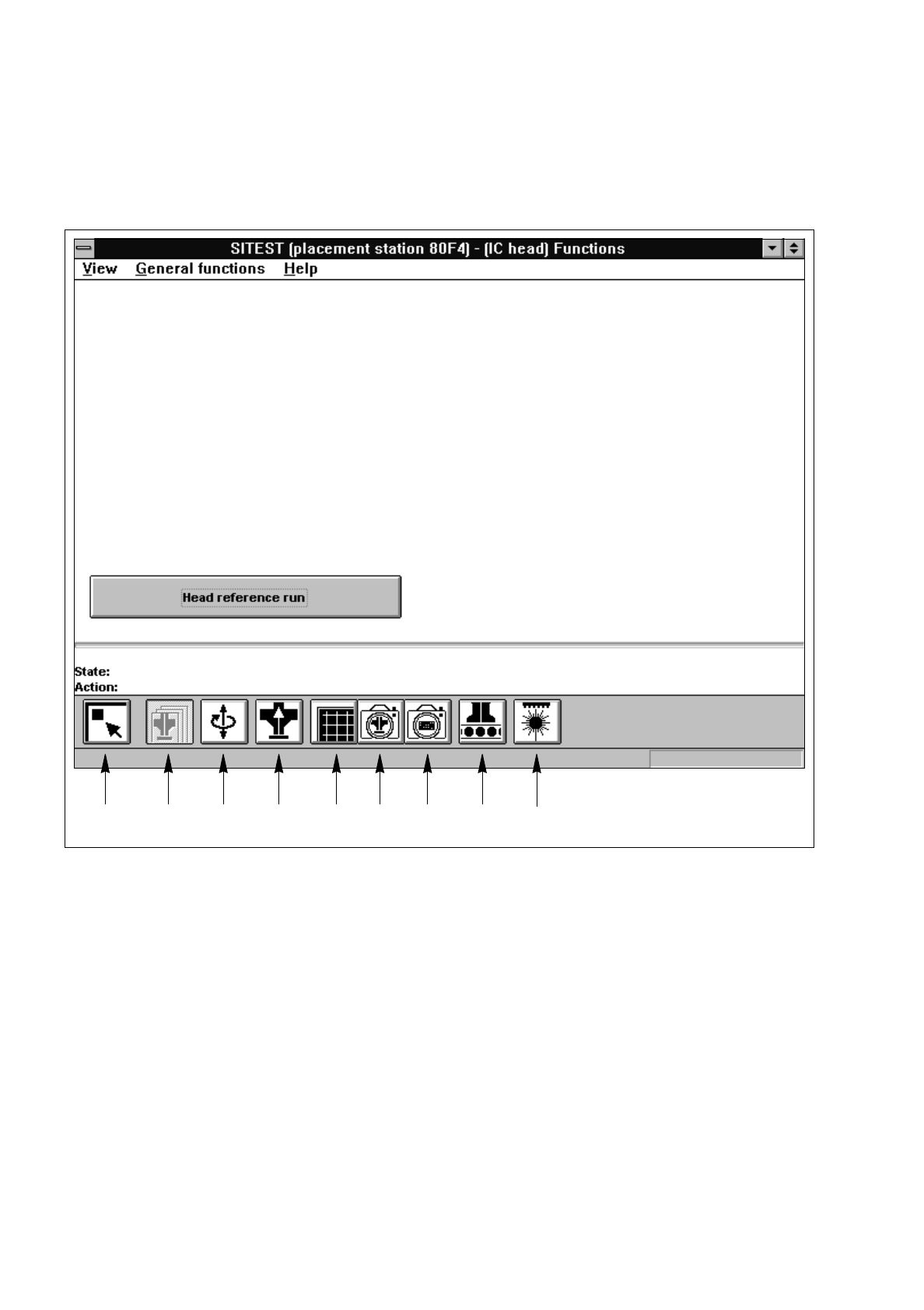

Fig. 0.3.6 "IC Head" Display (Example "IC head functions")
Legend pertaining to
Fig. 0.3.6
➀
Main view
➁
IC head functions
➂
Axis functions
➃
Head board
➄
IC mapping
➅
IC head and IC camera
➆
Flip-chip camera
➇
IC nozzle changer
➈
Coplanarity module
➀➁➂➃➄➅➆➇ ➈
User’s Manual Test Program SITEST 0 Introduction to the User Interface of the Test Program
Software Version 403.xx Edition 12/97 0.3 User Interface - Displays
0 - 25
0.3.6 "Flux Dispenser" Display, SIPLACE 80F
4
The "Flux dispenser" display contains all buttons required for testing the functions of the flux dispenser.

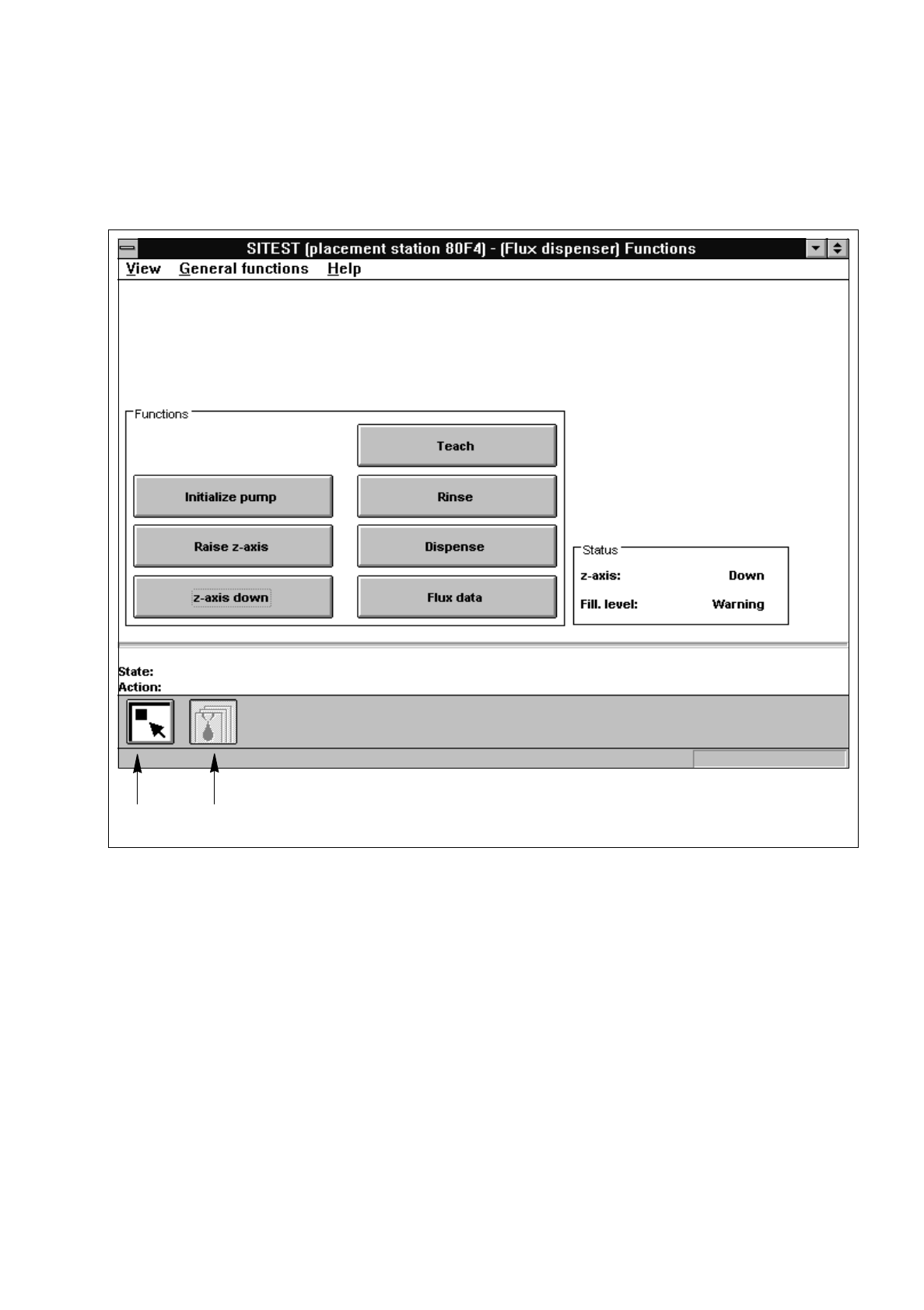

Fig. 0.3.7 "Flux dispenser" Display (Example "Flux dispenser functions")
Legend pertaining to
Fig. 0.3.7
➀
Main view
➁
Flux dispenser functions
➀
➁
0 Introduction to the User Interface of the Test Program User’s Manual Test Program SITEST
0.3 User Interface - Displays Software Version 403.xx Edition 12/97
0 - 26
0.3.7 "PCB Conveyor" Display
From the "PCB conveyor" display, all functions concerning the selected PCB conveyor can be called up.

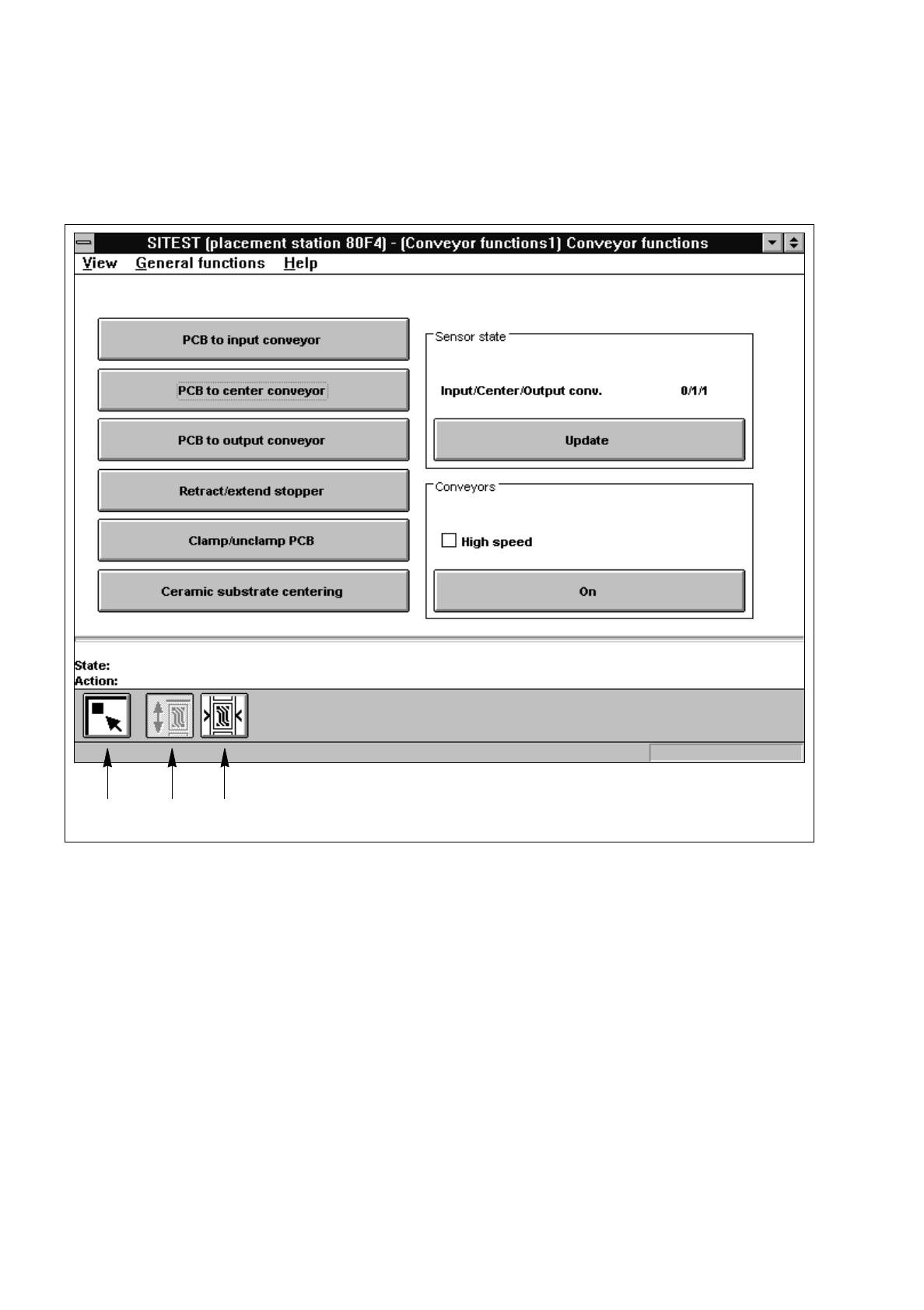

Fig. 0.3.8 "PCB Conveyor" Display (Example "PCB conveyor functions", SIPLACE 80F
4
)
Legend pertaining to
Fig. 0.3.8
➀
Main view
➁
PCB conveyor functions
➂
Conveyor width
➀➁➂
