1.7 Saving Machine Data
1.7.1 Saving Calibration Data and/or Axis Data
Newly determined calibration data or modified MA data can be saved using the "Save machine data" menu com-
mand on the "Settings" menu.
●
Click on
Settings
-->
Save machine data
.
The data is saved to the corresponding files (e.g. REAL.MA).
NOTE
The menu command can only be executed if data was newly determined or modified.
1.7.2 Copying Machine Data to Diskette or Hard Disk
MA data can be copied from the hard disk to diskette or from diskette to the hard disk using the "Copy
machine data" menu command on the "Settings" menu.
●
Click on Settings --> Copy machine data.

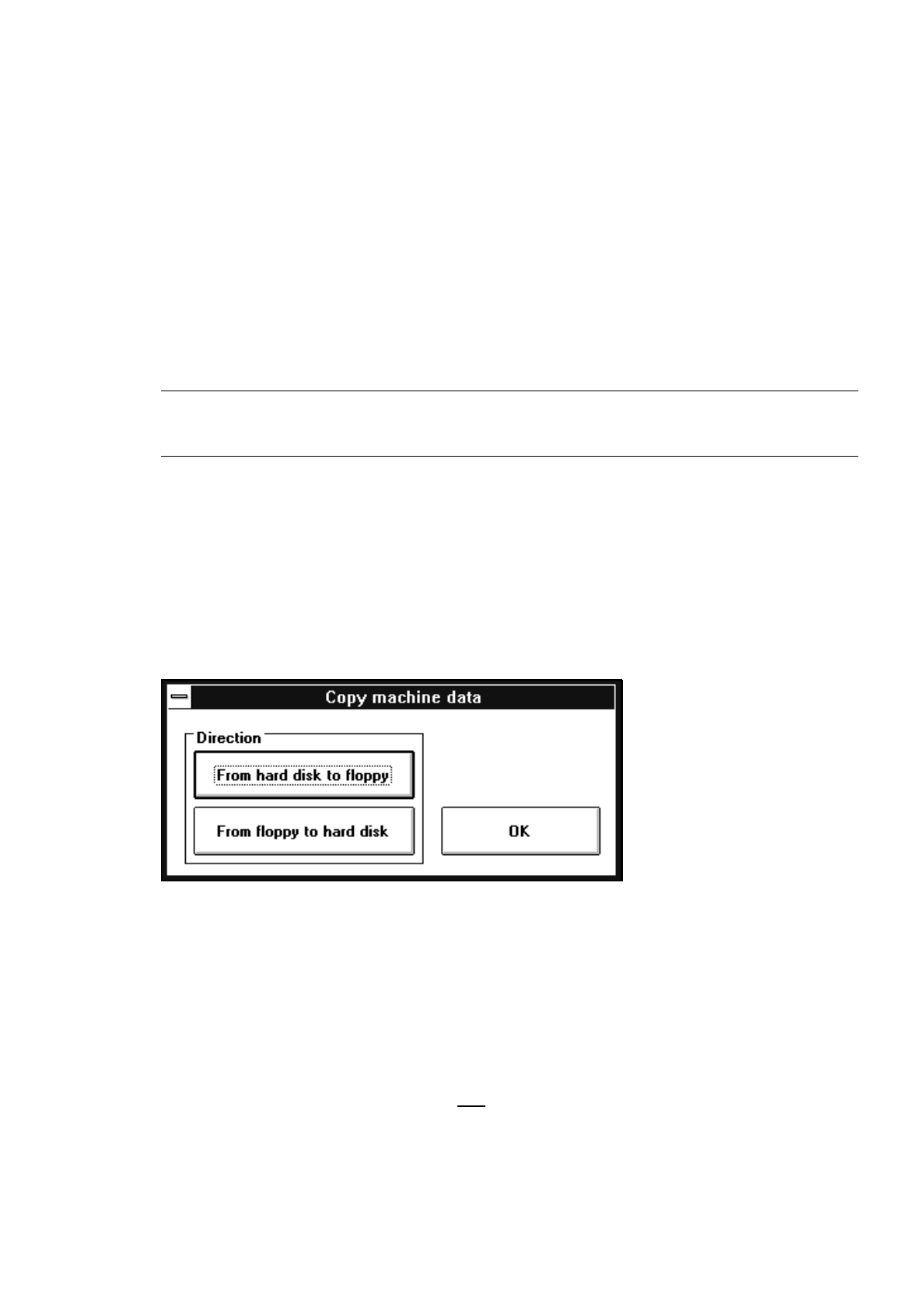

The setting box below opens.
Copying MA data to diskette:
●
Insert a blank, formatted diskette into the floppy drive.
●
Click on the From hard disk to floppy button.
●
Click on the OK button. The MA data will be copied to diskette.
Copying MA data to the hard disk:
●
Insert the diskette containing the MA data (only version 403.xx) into the floppy drive.
●
Click on the From floppy to hard disk button.
●
Click on the OK button. The MA data will be copied to the hard disk.
●
Restart the machine to activate the copied MA data.
1 General Functions User’s Manual Test Program SITEST
1.7 Saving Machine Data Software Version 403.xx Edition 12/97
1 - 16
User’s Manual Test Program SITEST 1 General Functions
Software Version 403.xx Edition 12/97 1.8 Saving WPC Machine Data
1 - 17
1.8 Saving WPC Machine Data
1.8.1 Writing MA Data to the Memory of the RAM Chip
Newly determined calibration data or modified machine data can be written to the memory of the wafflepack
changer’s battery-buffered RAM chip using the "Save WPC machine data" menu command (SIPLACE 80F
4
)
on the "Settings" menu.
●
Click on
Settings
-->
Save WPC machine data
.
The data are saved to the MC hard disk.
NOTE
The menu command can only be executed if data for the wafflepack changer was newly determined
or modified.
1.8.2 Saving MA Data to Hard Disk or Diskette
●
In the "Wafflepack Changer" display (see Fig. 0.3.10) click on the icon to switch to the "WPC
machine data" display.
Fig. 1.8.1 "WPC machine data" display
