P-0237-001.pdf - 第205页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10M 0404-001 203 MA-2 102 630 1 16 9774 ST A Y 1 818MA-010-102 103 630 1 16 9781 ST A Y 1 818MA-010-103 104 630 1 16 9798 ST A Y 1 818MA-010-104 105 630 1 16 …
MODEL TCM-X110M
0404-001
202

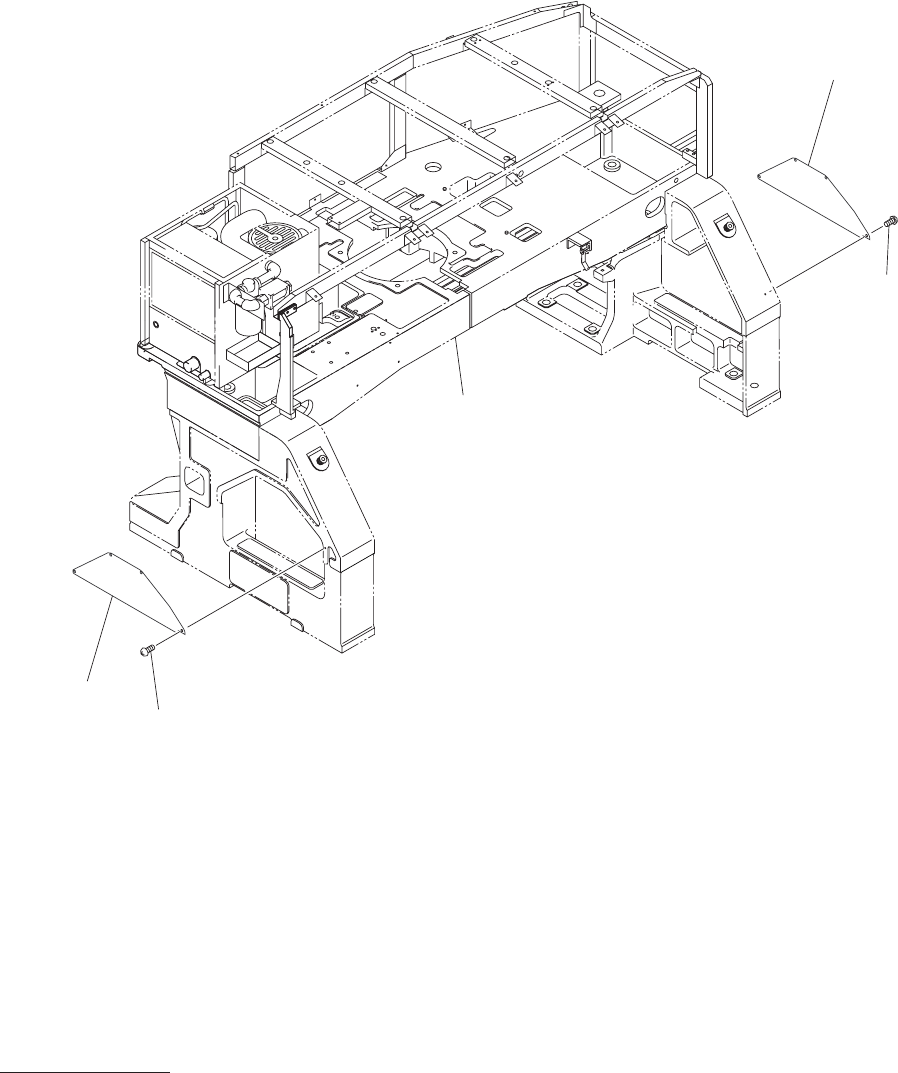

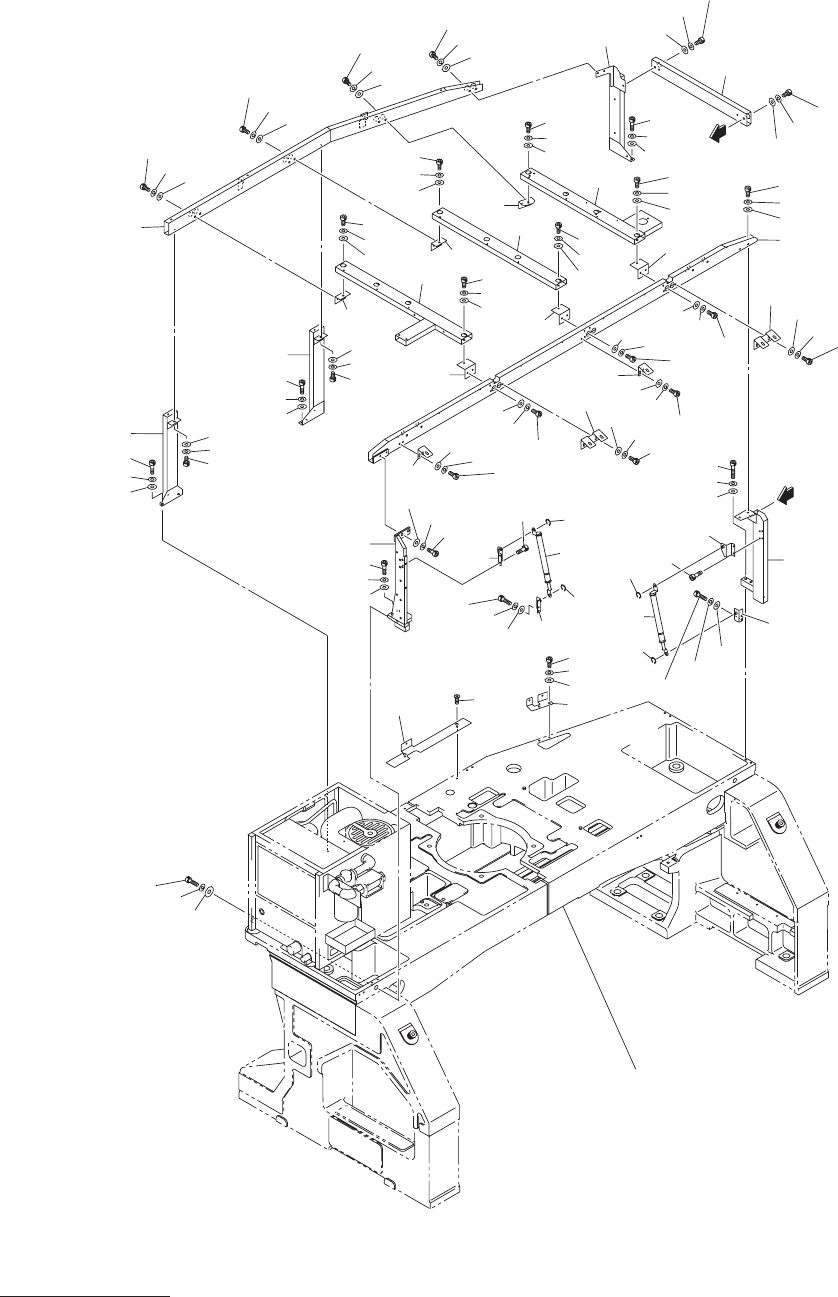

カバー部
COVER SECTION
Fig. MA-2
上部フレーム
Upper Frame
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0404-001
203
MA-2
102 630 116 9774 STAY 1 818MA-010-102
103 630 116 9781 STAY 1 818MA-010-103
104 630 116 9798 STAY 1 818MA-010-104
105 630 116 9804 STAY 1 818MA-010-105
106 630 116 9811 FRAME 1 818MA-010-106
107 630 116 9828 FRAME 1 818MA-010-107
108 630 122 7610 FRAME 1 818MA-010-108
109 630 116 9842 FRAME 1 818MA-010-109
111 630 116 9859 FRAME 1 818MA-010-111
112 630 119 6626 BRACKET 1 818MA-010-112
113 630 119 8644 FRAME 1 818MA-010-113
115 630 119 6633 BRACKET 1 818MA-010-115
116 630 035 6694 SPRING 2 2004 818MA-010-116
118 630 119 6640 BRACKET 2 818MA-010-118
119 630 115 4268 BLOCK 1 818MA-010-119
120 630 115 4275 BLOCK 1 818MA-010-120
121 630 115 4282 BLOCK 1 818MA-010-121
122 630 115 4343 BLOCK 1 818MA-010-122
123 630 008 1985 RING 4 818MA-010-123
126 411 002 4307 SCR FLT 5X10 2 818MA-010-126
127 630 119 6657 BRACKET 3 818MA-010-127
128 630 119 6664 BRACKET 2 818MA-010-128
129 630 119 6688 BRACKET 2 818MA-010-129
131 630 098 7126 FRAME 1 818MA-010-131
132 630 119 6701 BRACKET 1 818MA-010-132
133 630 029 1391 WASHER 8 818MA-010-133
135 630 000 7893 BOLT,HEX-SCT 10 818MA-010-135
138 630 000 7787 BOLT,HEX-SCT 4 818MA-010-138
139 630 000 7770 BOLT,HEX-SCT 4 818MA-010-139
140 630 000 7756 BOLT,HEX-SCT 35 818MA-010-140
141 630 000 7763 BOLT,HEX-SCT 2 818MA-010-141
146 411 141 6705 WASHER SPR 5 41 818MA-010-146
147 411 141 4107 WASHER V 5X10X1 33 818MA-010-147
148 411 141 3001 WASHER SPR 6 10 818MA-010-148
149 411 141 4305 WASHER V 6X12.5X1.6 10 818MA-010-149
159 630 000 8050 BOLT,HEX-SCT 1 818MA-010-239
165 411 141 3100 WASHER SPR 8 1 818MA-010-245
166 630 001 0244 WASHER 1 818MA-010-246
MODEL TCM-X110M
0404-001
204
カバー部
COVER SECTION
Fig. MA-3
保護カバー
Protection Cover
225
224
225
See Fig.L-1
Key No.12
224
