Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10M 0405-001 253 RE-1 51 630 1 16 8760 RELA Y 1 K10 818RE-010-051 52 630 1 16 9569 RELA Y 4 K29,K41,K60,K61 818RE-010-052 53 630 049 2064 SOCKET 4 818RE-010-0…
MODEL TCM-X110M
0405-001
252
100V
電源部
100V POWER SUPPLY SECTION
Fig. RE-1 100V
電源１
100V Power Supply 1
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
253
RE-1
51 630 116 8760 RELAY 1 K10 818RE-010-051
52 630 116 9569 RELAY 4 K29,K41,K60,K61 818RE-010-052
53 630 049 2064 SOCKET 4 818RE-010-053
54 630 099 1765 CIRCUIT PROTECTOR 2 Q110,Q111 818RE-010-054
55 630 099 1765 CIRCUIT PROTECTOR 1 Q112 818RE-010-055
56 630 094 1463 CIRCUIT PROTECTOR 1 Q113 818RE-010-056
57 630 053 8588 EM-CONTACTOR 2 KM3,KM4 818RE-010-057
58 630 100 1357 COMP,CR 2 818RE-010-058
59 630 116 8838 CIRCUIT PROTECTOR 1 Q205 818RE-010-059
60 630 109 1488 FUSE HOLDER 3 818RE-010-060
61 424 005 9408 FUSE 600V 20A 1 F120 818RE-010-061
62 424 005 9408 FUSE 600V 20A 2 F201,F203 818RE-010-062
63 630 000 1273 ACCESSORY,WIRING 1 818RE-010-063
64 630 091 1749 BRACKET,WIRING 2 818RE-010-064
65 630 119 5148 PANEL 1 818RE-010-065
66 630 071 3343 COVER 7 818RE-010-066
67 630 071 3350 COVER 5 818RE-010-067
68 630 127 0937 TERMINAL 2 818RE-010-068
69 630 127 0975 ACCESSORY,WIRING 1 818RE-010-069
70 630 048 3833 MECH PARTS(MOUNTING BASES 6 818RE-010-070
95 411 113 7501 SCR TRS 4X10 6 818RE-010-095
96 630 000 7602 BOLT,HEX-SCT 2 818RE-010-096
97 630 000 7633 BOLT,HEX-SCT 4 818RE-010-097
98 411 141 2905 WASHER SPR 4 6 818RE-010-098
99 630 001 0213 WASHER 6 818RE-010-099
MODEL TCM-X110M
0405-001
254
100V
電源部
100V POWER SUPPLY SECTION

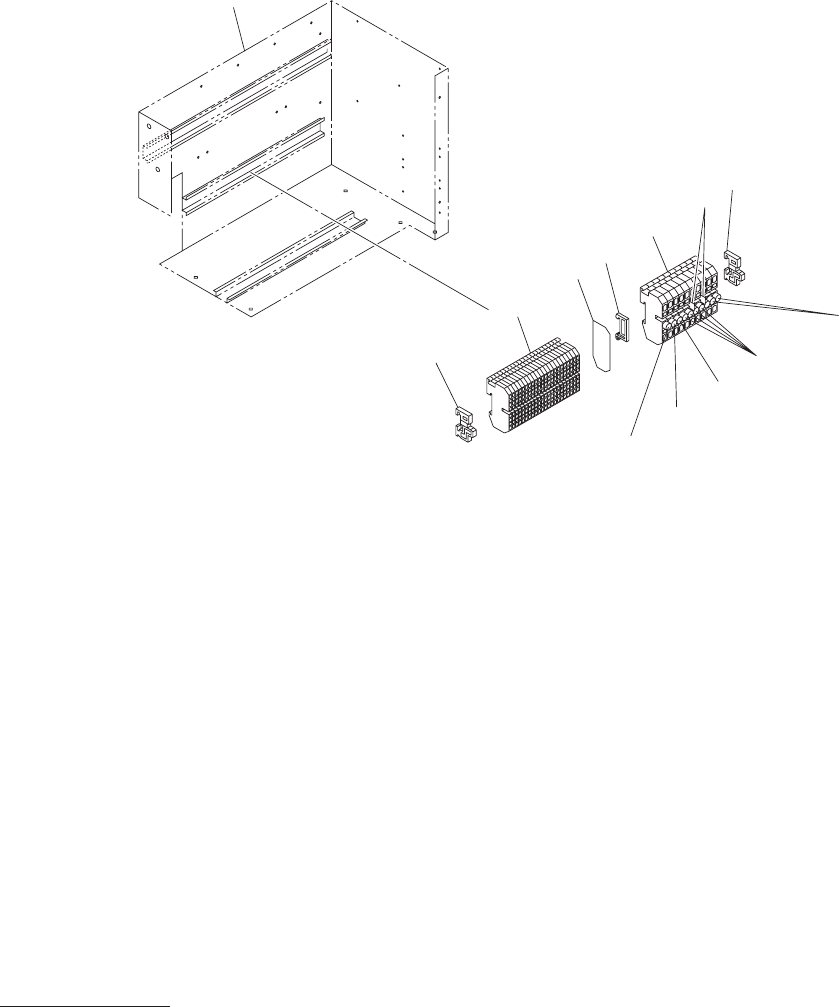

Fig. RE-2 100V
電源２
100V Power Supply 2
