MODEL TCM-X110M
0405-001
218
フィーダキャリッジカバー部

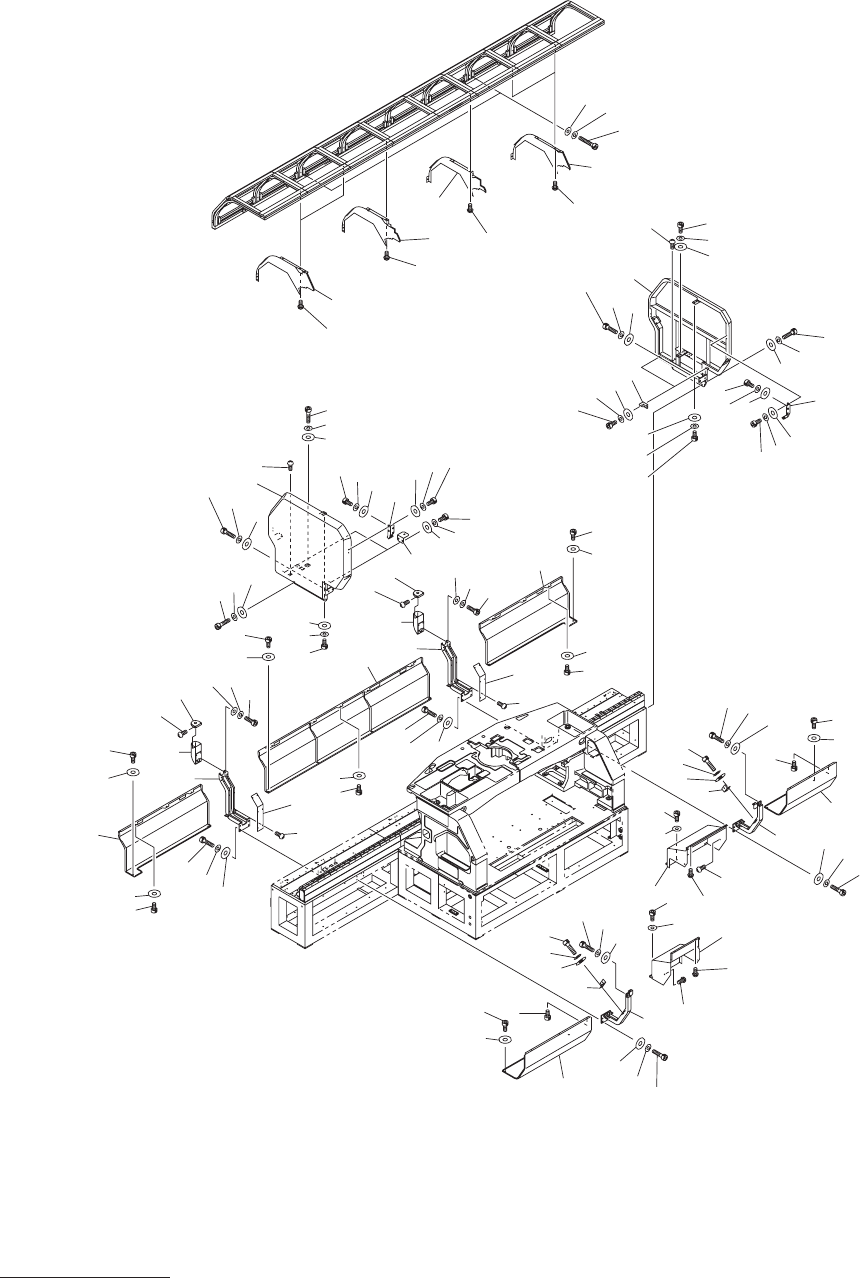

FEEDER CARRIAGE COVER SECTION
Fig. MB-1
後面
カバー
Rear Cover
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
219
MB-1
1 630 128 7133 FRAME 1 818MB-010-001
2 630 128 7140 FRAME 1 818MB-010-002
4 630 119 7104 FRAME 1 818MB-010-004
5 630 119 7111 FRAME 1 818MB-010-005
6 630 102 4998 FRAME 2 818MB-010-006
7 630 127 2900 FRAME 2 818MB-010-007
8 630 097 1019 COVER 2 818MB-010-008
14 630 128 7409 SUPPORT 4 818MB-010-014
16 630 128 7348 COVER(R) 1 818MB-010-016
17 630 128 7362 COVER(L) 1 818MB-010-017
18 630 127 3327 PLATE(R) 2 818MB-010-018
19 630 127 3334 PLATE(L) 2 818MB-010-019
20 630 102 5476 BRACKET(STOP) 2 818MB-010-020
21 630 000 8456 BOLT,HEX-SCT 20 818MB-010-021
24 630 127 3051 SUPPORT 1 818MB-010-024
25 630 127 3068 SUPPORT 1 818MB-010-025
26 630 120 4123 COVER 1 818MB-010-026
27 630 127 7394 COVER 1 818MB-010-027
29 630 128 7379 COVER(R) 1 818MB-010-029
30 630 127 3013 COVER 1 818MB-010-030
32 630 128 7386 COVER(L) 1 818MB-010-032
33 630 008 1213 BOLT,HEX-SCT 11 818MB-010-033
34 630 117 6703 BRACKET 2 818MB-010-034
35 630 127 3341 PLATE(L) 1 818MB-010-035
36 630 127 3358 PLATE(R) 1 818MB-010-036
38 411 113 9000 SCR TRS 5X8 40 818MB-010-038
39 630 000 7794 BOLT,HEX-SCT 4 818MB-010-039
40 630 000 7893 BOLT,HEX-SCT 28 818MB-010-040
41 411 141 3001 WASHER SPR 6 28 818MB-010-041
42 630 001 0237 WASHER 28 818MB-010-042
43 630 000 7756 BOLT,HEX-SCT 8 818MB-010-043
44 411 113 9109 SCR TRS 5X10 6 818MB-010-044
45 411 141 6705 WASHER SPR 5 36 818MB-010-045
46 630 001 0220 WASHER 43 818MB-010-046
47 630 000 7763 BOLT,HEX-SCT 20 818MB-010-047
48 630 000 7787 BOLT,HEX-SCT 4 818MB-010-048
49 411 141 4107 WASHER V 5X10X1 20 818MB-010-049
MODEL TCM-X110M
0405-001
220
フィーダキャリッジカバー部

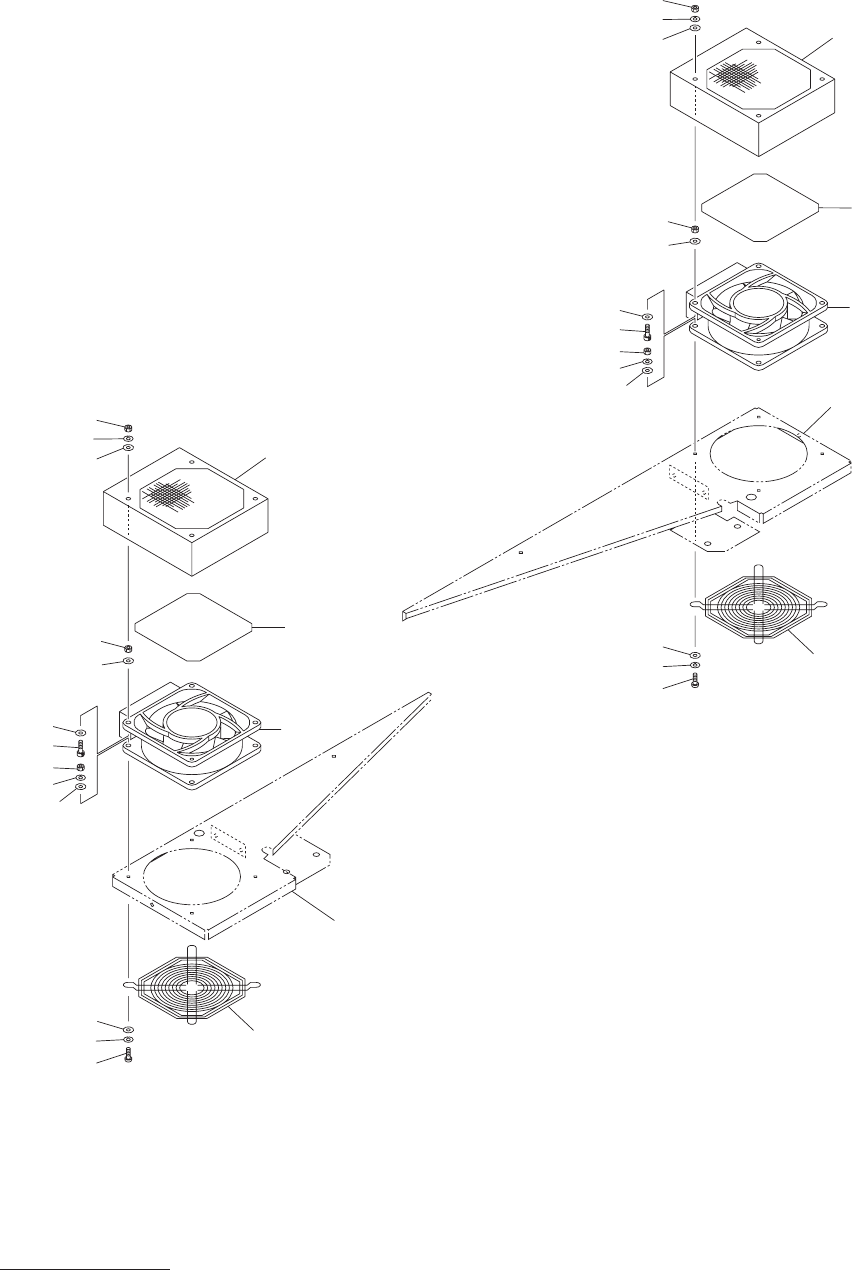

FEEDER CARRIAGE COVER SECTION
Fig. MB-2
F
軸冷却ファン
F Axis Cooling Fan
See Fig.MB-3
Key No.221
107
11
0
138
108
130
133
132
135
137
136
134
132
132
131
134
133
132
108
130
133
132
107
See Fig.MB-3
Key No.222
132
131
134
133
132
134
132
110
138
135
137
136
