Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10M 0405-001 245 RC-2 151 630 1 16 5738 EM-CONT ACTOR 1 KM10 818RC-010-151 152 630 1 16 5738 EM-CONT ACTOR 4 KM1 1,KM12,KM13,KM14 818RC-010-152 153 630 053 85…
MODEL TCM-X110M
0405-001
244
200V
電源部１
200V POWER SUPPLY SECTION 1

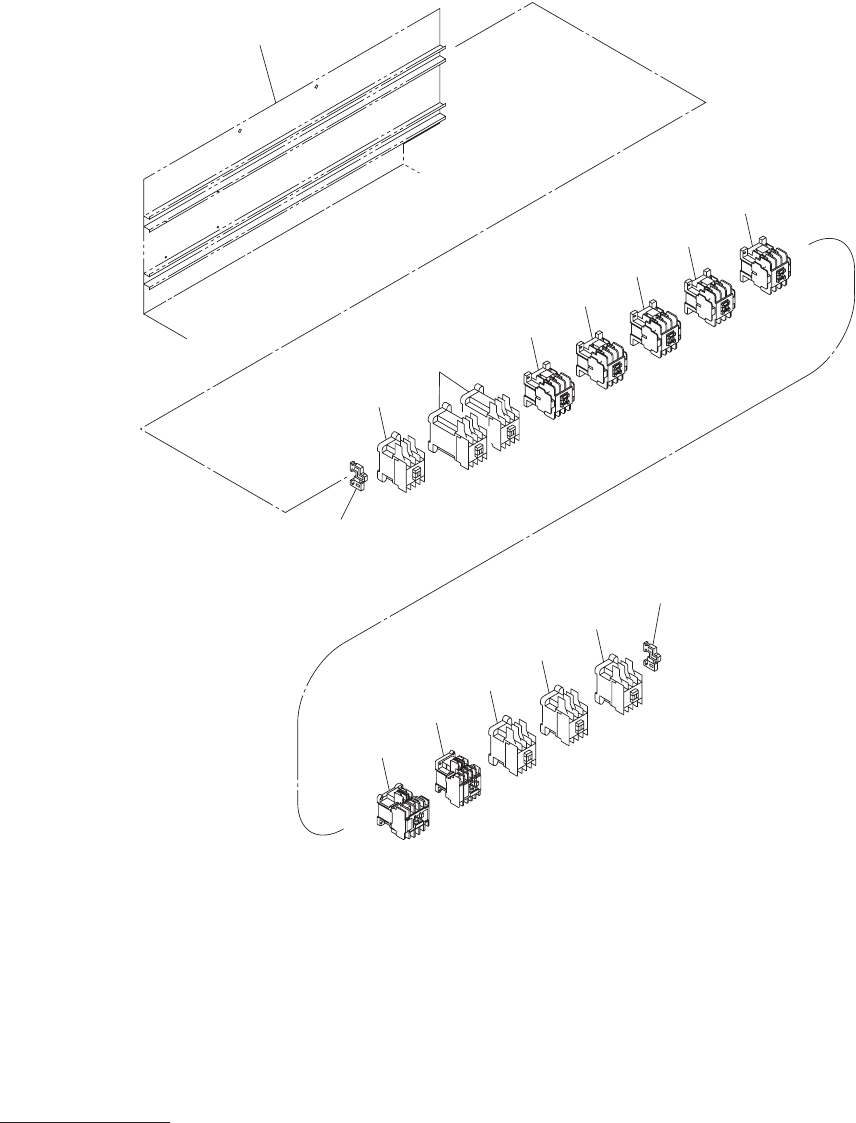

Fig. RC-2 200V
電源２
200V Power Supply 2
155
154
159
.
159
.
153
159
.
151
152
155
159
.
152
159
.
152
159
.
152
158
159
.
158
159
.
158
159
.
159
.
156
159
.
157
See Fig.RC-1
Key No.61
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
245
RC-2
151 630 116 5738 EM-CONTACTOR 1 KM10 818RC-010-151
152 630 116 5738 EM-CONTACTOR 4 KM11,KM12,KM13,KM14
818RC-010-152
153 630 053 8588 EM-CONTACTOR 1 KM5 818RC-010-153
154 630 049 2200 EM-CONTACTOR 2 KM6,KM7 818RC-010-154
155 630 091 1749 BRACKET,WIRING 2 818RC-010-155
156 630 116 5721 EM-CONTACTOR 1 KM15 818RC-010-156
157 630 116 5714 EM-CONTACTOR 1 KM16 818RC-010-157
158 630 053 8588 EM-CONTACTOR 3 KM17,KM18,K719 818RC-010-158
159 630 100 1357 COMP,CR 11 818RC-010-159
MODEL TCM-X110M
0405-001
246
200V
電源部１
200V POWER SUPPLY SECTION 1

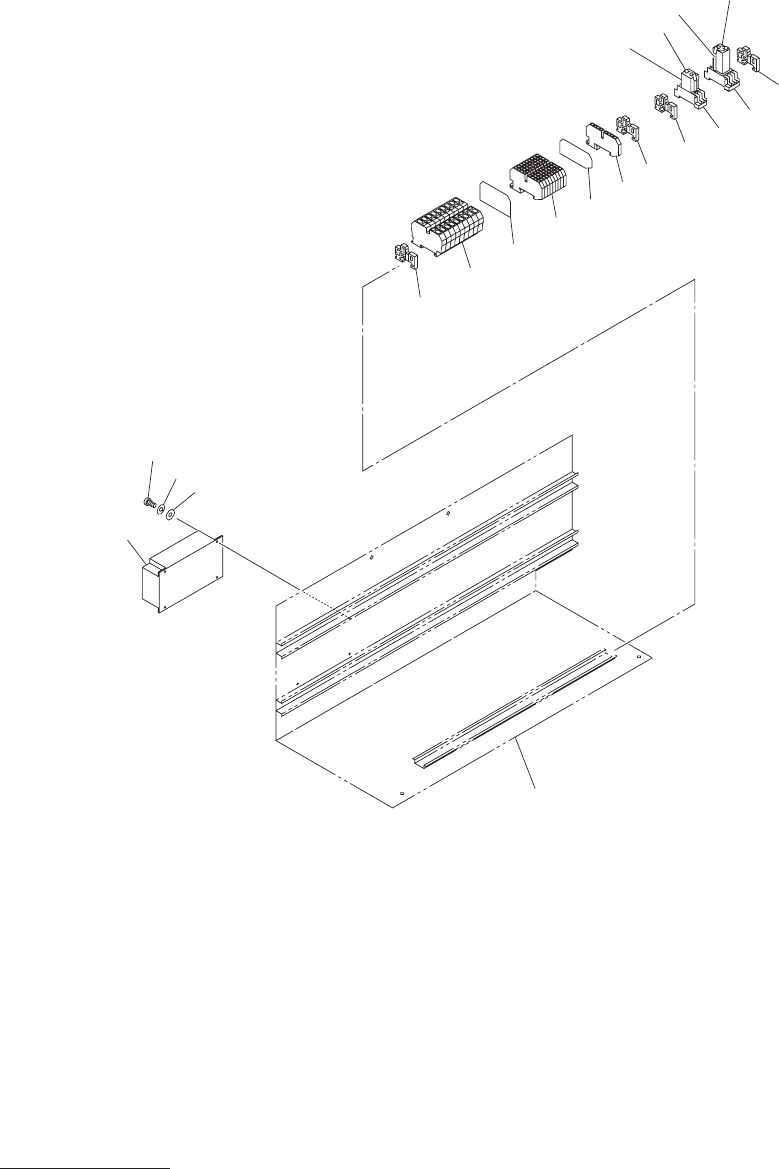

Fig. RC-3 200V
電源３
200V Power Supply 3
