Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10M 0405-001 269 54 630 068 8375 ACCESSORY ,CONN 2 818RK-010-054 55 630 076 0644 SWITCH,SEESA W 1 818RK-010-055 56 630 089 0556 SOCKET 1 818RK-010-056 57 630 …
MODEL TCM-X110M
0405-001
268
92
94
95
96
57
54
62
89
55
56
61
54
56
58
92

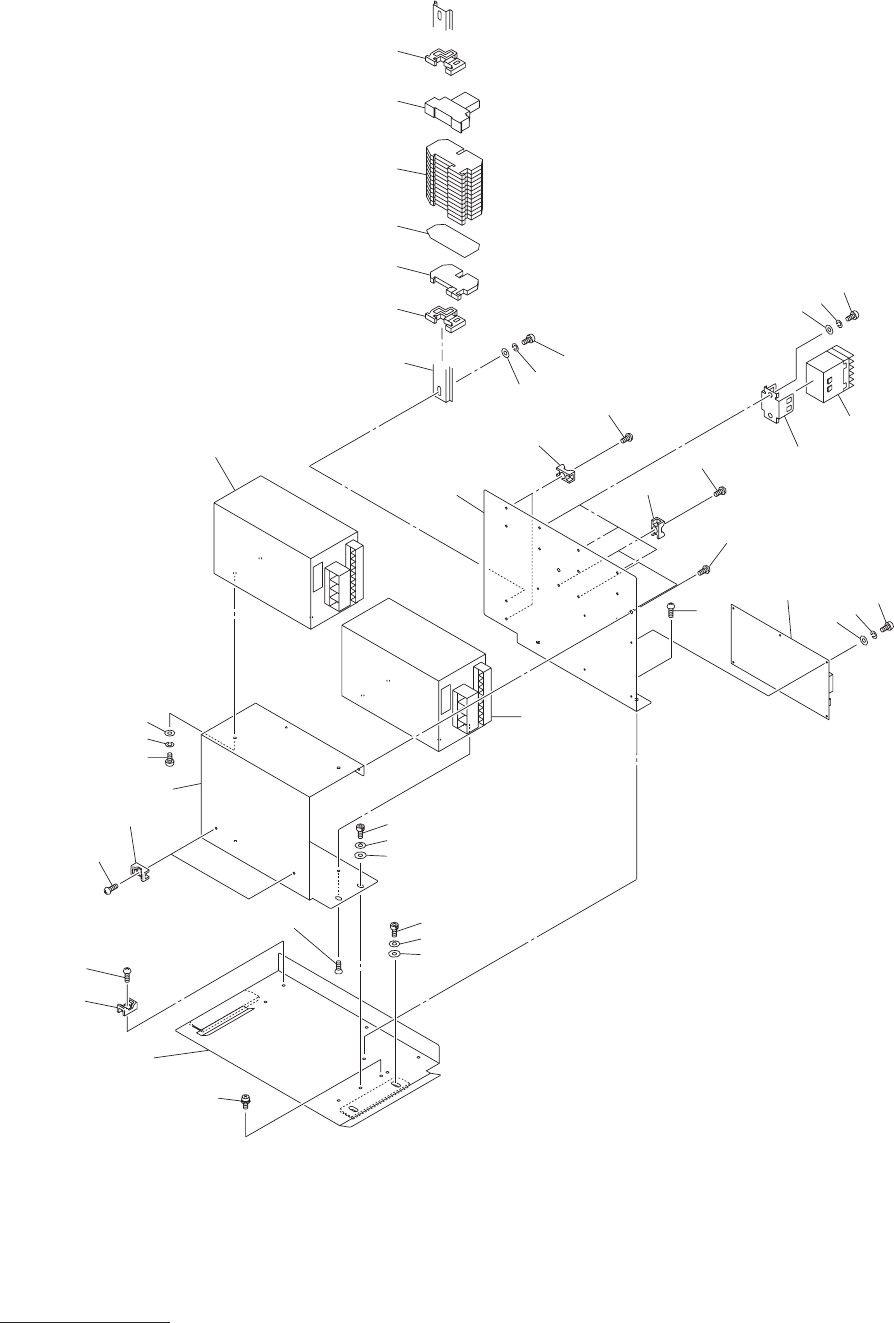

サービスパネル部
SERVICE PANEL
SECTION
Fig. RK-1
サービスパネル
Service Panel
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
269
54 630 068 8375 ACCESSORY,CONN 2 818RK-010-054
55 630 076 0644 SWITCH,SEESAW 1 818RK-010-055
56 630 089 0556 SOCKET 1 818RK-010-056
57 630 119 8613 BRACKET 1 818RK-010-057
58 630 117 6406 COVER 1 818RK-010-058
61 630 121 8915 ASSY,CONNECTOR 1 SW4 818RK-010-061
62 630 117 6314 COVER 1 818RK-010-062
89 411 050 5004 SCR TRS 3X6 4 818RK-010-089
90 411 113 9109 SCR TRS 5X10 5 818RK-010-090
94 630 000 7909 BOLT,HEX-SCT 3 818RK-010-094
95 411 141 3001 WASHER SPR 6 3 818RK-010-095
96 630 001 0237 WASHER 3 818RK-010-096
RK-1
MODEL TCM-X110M
0405-001
270
機械廻り 1
MISCELLANEOUS PARTS-1
Fig. RL-1
電源ユニット
Power Supply Unit
・
・ ・
