P-0237-001.pdf - 第259页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10M 0405-001 257 RE-3 251 402 061 5206 WIRE WOUND 100 JB 80W 1 818RE-010-251 252 630 1 15 8259 COVER 1 818RE-010-252 253 630 127 0937 TERMINAL 10 818RE-010-25…
MODEL TCM-X110M
0405-001
256
100V
電源部
100V POWER SUPPLY SECTION

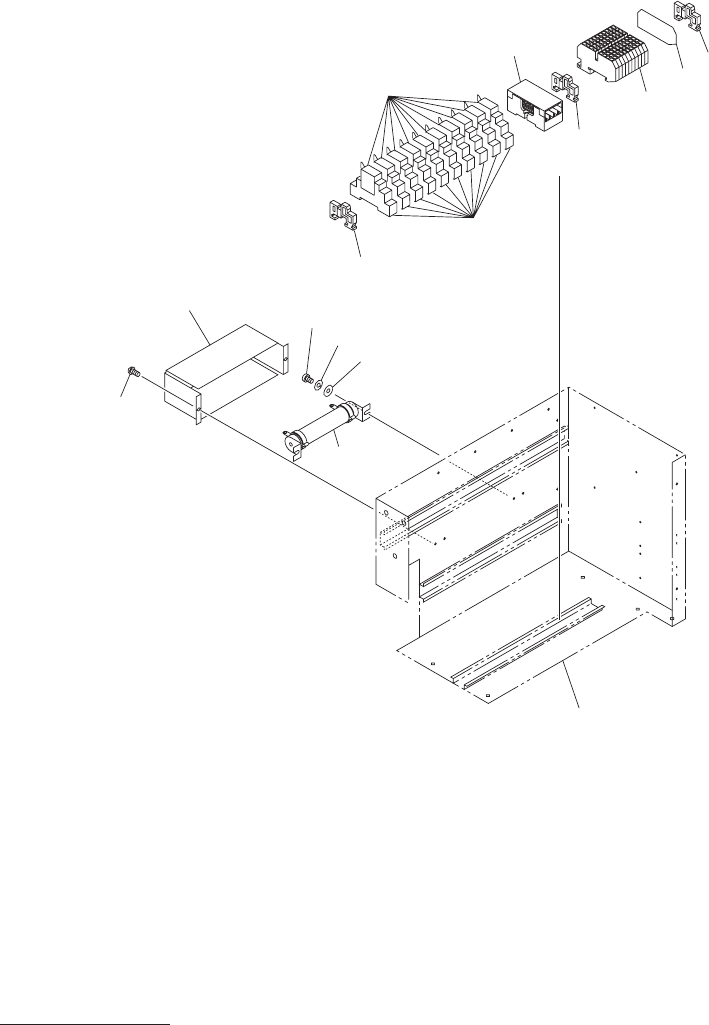

Fig. RE-3 100V
電源３
100V Power Supply 3
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
257
RE-3
251 402 061 5206 WIRE WOUND 100 JB 80W 1 818RE-010-251
252 630 115 8259 COVER 1 818RE-010-252
253 630 127 0937 TERMINAL 10 818RE-010-253
254 630 127 0975 ACCESSORY,WIRING 1 818RE-010-254
255 630 127 0982 ACCESSORY,WIRING 1 818RE-010-255
256 630 127 0999 ACCESSORY,WIRING 1 818RE-010-256
257 630 091 1749 BRACKET,WIRING 3 818RE-010-257
258 630 058 8460 ACCESSORY,WIRING 1 818RE-010-258
259 630 068 9723 RELAY 10 K30,K35,K36,K31,K32,K33,K34,K37,
K38,K9 818RE-010-259
260 630 049 2064 SOCKET 10 818RE-010-260
261 630 085 4152 RELAY 1 K62 818RE-010-261
296 411 113 7501 SCR TRS 4X10 2 818RE-010-296
297 411 043 5004 SCR PAN 4X8 2 818RE-010-297
298 411 008 1706 WASHER SPR 4 2 818RE-010-298
299 411 119 2104 WASHER V 4X9X0.8 2 818RE-010-299
MODEL TCM-X110M
0405-001
258
100V
電源部
100V POWER SUPPLY SECTION
Fig. RE-4 100V
電源４
100V Power Supply 4
351
352
353
.
399
398
397
See Fig.RE-1
Key No.65
399
398
396
399
398
396
354
395
