MODEL TCM-X110M
0405-001
36

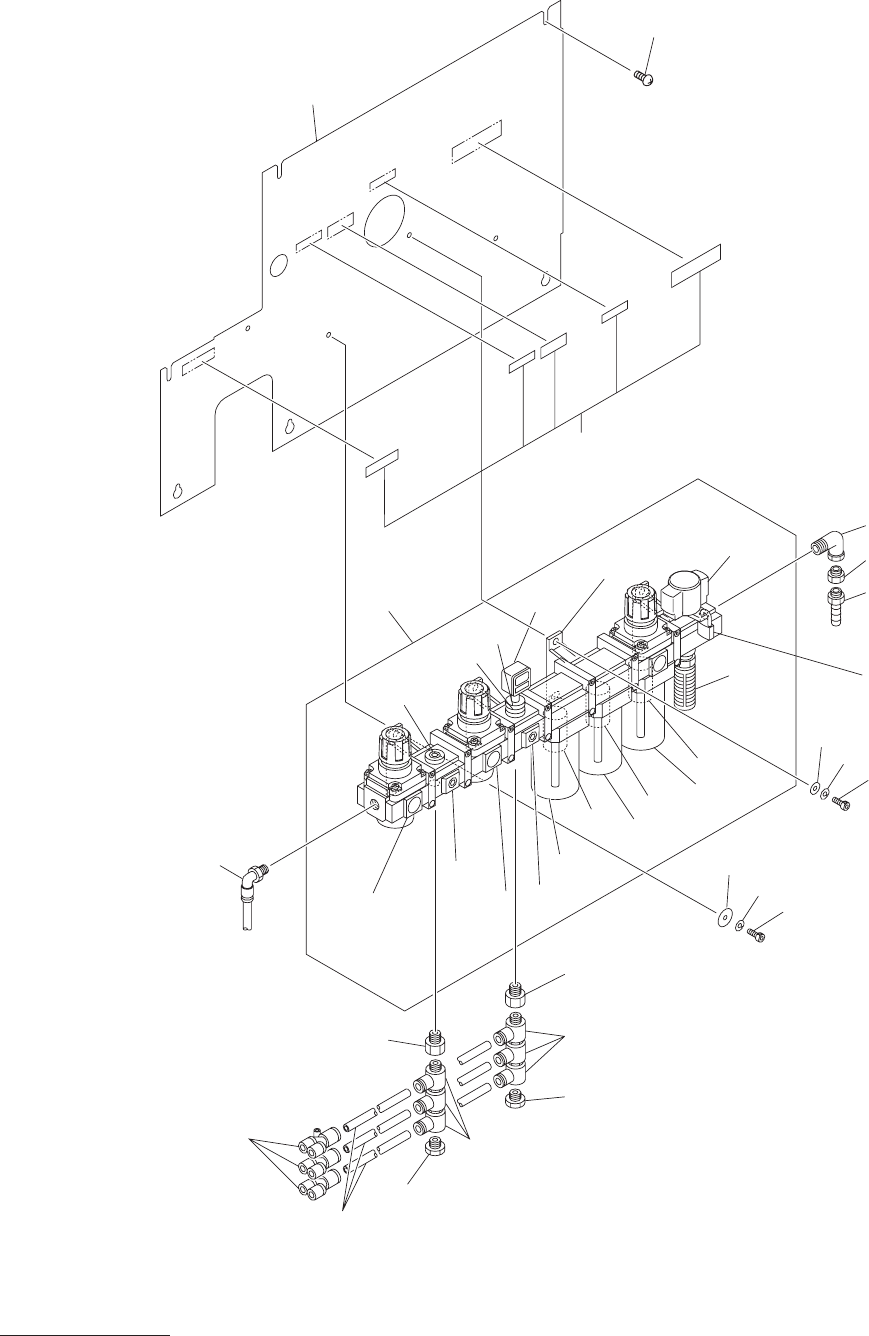

空圧制御部
PNEUMATIC SECTION
Fig. D-2
エアポート配管
Air Port Piping
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
37
102 630 003 7890 PIPE FITTINGS 1 818D--010-102
103 630 118 9109 AIR LINE EQPT 1 818D--010-103
103 -02 630 121 4467 AIR LINE EQPT 1
103 -05 630 121 4481 VALVE 1
103 -06 630 105 7606 SWITCH,PRESSURE 1 SP1
103 -07 630 105 7538 PIPE FITTINGS 2
103 -08 630 121 4504 AIR LINE EQPT 4
103 -09 630 121 4498 AIR LINE EQPT 3
103 -10 630 121 4474 AIR LINE EQPT 1
103 -11 630 105 7521 AIR LINE EQPT 1
103 -12 630 121 4535 PIPE FITTINGS 1
103 -13 630 105 7545 PIPE FITTINGS 1
103 -14 630 105 7569 PIPE FITTINGS 5
103 -20 630 121 4436 AIR LINE EQPT 1
103 -21 630 121 5648 AIR LINE EQPT(ELEMENT) 1
103 -30 630 121 4443 AIR CLEAN EQPT 1
103 -31 630 121 5655 AIR LINE EQPT(ELEMENT) 1
103 -40 630 121 4450 AIR CLEAN EQPT 1
103 -41 630 121 5662 AIR LINE EQPT(ELEMENT) 1
104 630 003 8033 PIPE FITTINGS 1 818D--010-104
105 630 008 0285 PIPE FITTINGS 1 818D--010-105
106 630 003 7364 PIPE FITTINGS 1 818D--010-106
107 630 003 8231 PIPE FITTINGS 2 818D--010-107
108 630 003 8224 PIPE FITTINGS 6 818D--010-108
109 630 003 8248 PIPE FITTINGS 2 818D--010-109
111 411 141 4305 WASHER V 6X12.5X1.6 2 818D--010-111
112 411 141 3001 WASHER SPR 6 4 818D--010-112
113 630 000 7893 BOLT,HEX-SCT 4 818D--010-113
114 630 053 4917 MECH PARTS (PADLOCK) 1 818D--010-114
115 630 129 5053 COVER 1 818D--010-115
116 411 113 9109 SCR TRS 5X10 6 818D--010-116
117 630 089 9559 PIPE FITTINGS 3 818D--010-117
121 630 101 4593 NAME PLATE,PARTS 1 818D--010-121
122 630 101 4609 NAME PLATE,PARTS 1 818D--010-122
123 630 001 0237 WASHER 2 818D--010-123
124 630 119 6848 TUBE 1 TU1065BU-10 818D--010-124
D-2
MODEL TCM-X110M
0405-001
38
213
205
209
208
206
210
207
206
207
206
212
211
202
201-03
201-02201
201-04
203
204
See Fig.L-1
Key No.12
See Fig.F-1
Key No.1
空圧制御部
PNEUMATIC SECTION
Fig. D-3
エア配管
Air Piping
