MODEL TCM-X110M
0405-001
284
機械廻り
2 MISCELLANEOUS PARTS-2

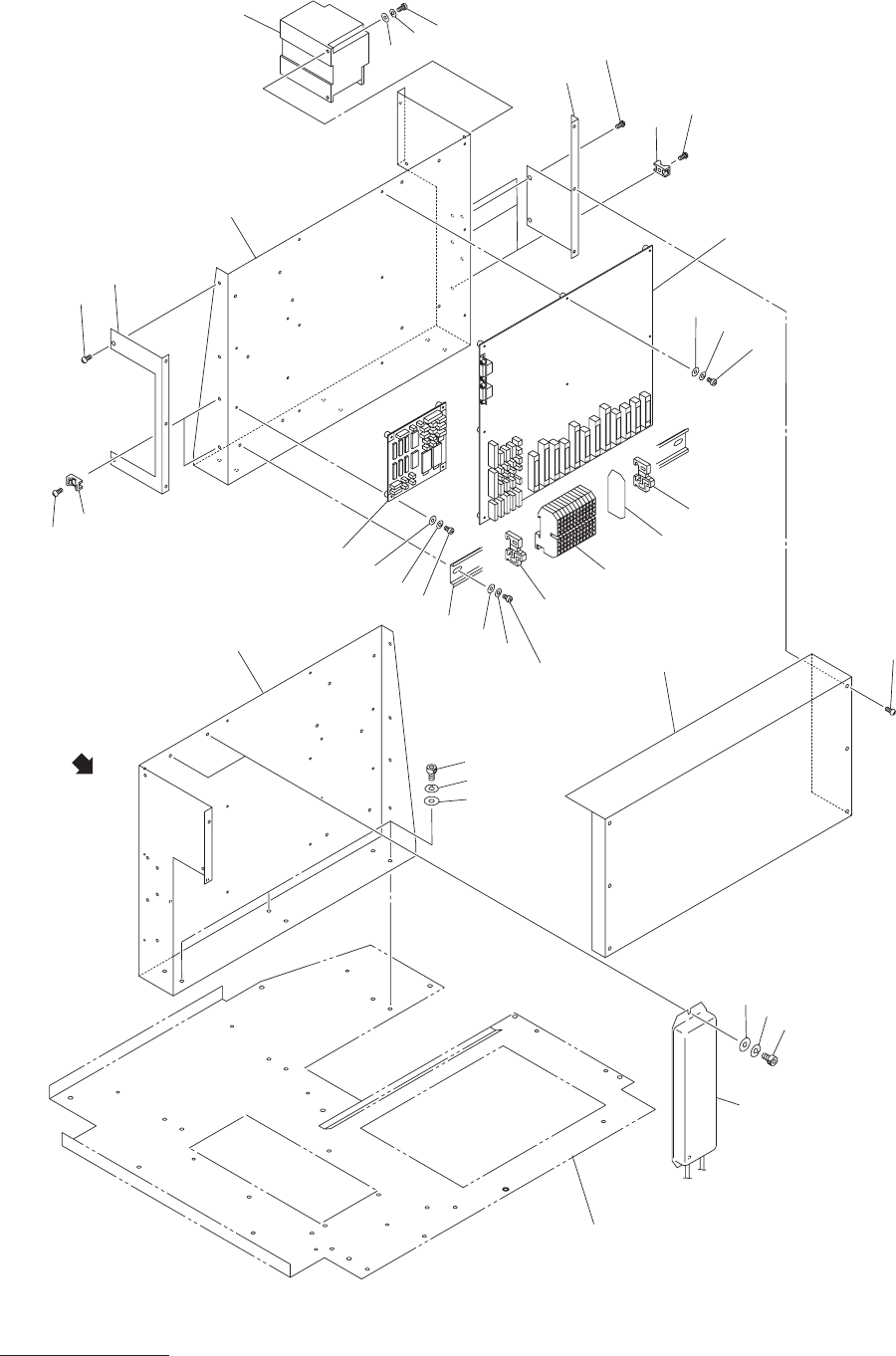

Fig. RM-2 H
基板
H P.C.B.
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
285
RM-2
151 630 086 5974 UNIT,I/O 1 3F88L-162 818RM-010-151
152 630 098 5597 P.C.B,MOUNT 1 UA89*001*0000 818RM-010-152
153 630 117 1180 P.C.B,MOUNT 1 #SVME-UB03 818RM-010-153
154 402 083 5505 WIRE WOUND 25 KA 220W 2 818RM-010-154
155 630 127 0906 TERMINAL 12 818RM-010-155
156 630 127 0951 ACCESSORY,WIRING 1 818RM-010-156
157 630 058 8460 ACCESSORY,WIRING 1 818RM-010-157
158 630 091 1749 BRACKET,WIRING 2 818RM-010-158
159 630 127 0982 ACCESSORY,WIRING 2 818RM-010-159
160 630 127 0999 ACCESSORY,WIRING 2 818RM-010-160
161 630 091 2104 RAIL,WIRING 1 818RM-010-161
162 630 119 4769 PANEL 1 818RM-010-162
163 630 048 3833 MECH PARTS(MOUNTING BASES 5 818RM-010-163
164 630 087 7823 PROGRAM ROM 1 #CPLD CZH1E2 818RM-010-164
165 630 087 7830 PROGRAM ROM 1 #CPLD CZH2 818RM-010-165
166 630 087 7847 PROGRAM ROM 1 #CPLD CZH3E2 818RM-010-166
167 630 121 9622 COVER 1 818RM-010-167
168 630 118 0052 BRACKET 1 818RM-010-168
169 630 122 2554 BRACKET 1 818RM-010-169
185 411 050 5004 SCR TRS 3X6 6 818RM-010-185
186 411 113 7501 SCR TRS 4X10 9 818RM-010-186
187 411 162 1604 SCR PAN 3X20 13 818RM-010-187
188 411 086 4408 WASHER SPR 3 13 818RM-010-188
189 411 119 1909 WASHER V 3X7X0.5 13 818RM-010-189
190 411 043 5004 SCR PAN 4X8 3 818RM-010-190
191 411 113 2209 SCR PAN 4X16 2 818RM-010-191
192 411 008 1706 WASHER SPR 4 5 818RM-010-192
193 411 119 2104 WASHER V 4X9X0.8 5 818RM-010-193
194 630 000 7602 BOLT,HEX-SCT 4 818RM-010-194
195 411 141 2905 WASHER SPR 4 4 818RM-010-195
196 411 141 4008 WASHER V 4X9X0.8 4 818RM-010-196
197 630 000 7725 BOLT,HEX-SCT 3 818RM-010-197
198 411 141 6705 WASHER SPR 5 3 818RM-010-198
199 411 141 4107 WASHER V 5X10X1 3 818RM-010-199
MODEL TCM-X110M
0405-001
286
機械廻り
2 MISCELLANEOUS PARTS-2
Fig. RM-3
リサイクルカウンタ、ターミナル
Cycle Counter,Terminals
