2 Assembly instructions Special design Cognex Scanner SIPL ACE HS-60 / HF-serie s / X-series / D-series / S / F 06/2008 Edition 37 o Mount the bracket with each 2 cable guide s, 2 washers and 2 knurled knut s to the rail…
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
36
2.7 Hardware installation
2
The depth of focus of the Cognex scanner is 16 mm. Thereby the distance between the scanner
and the board has not to be exactly 40 mm (upper side) or 65 mm (lower side)(may vary from
angle position and machine typ). 2
Run the cables that they can’t be damaged by the width adjustment of the conveyor and that they
do not disturb the PCB transport. 2
2
The installation is shown at an X4 with single conveyor on the right side. The installation into a
double conveyor machine has to be done analogically. 2
o Shut down the machine and switch off the main switch.
o Mount the Cognex scanner(s) with 2 washers ø 7,0 mm and 2 M3 x 5 mm screws. Therefore
put at first the 7,0 mm washer on the screw and then fix the scanner to the bracket.
2
o Adjust the focus of the scanner depending on machine type or angle adjusting. Place the brak-
ket with the scanner on the final position and measure the distance from the objective to the
PCB- Surface with a measuring tape.
Open the 4 screws of the objective cover and adjust the distance to the PCB- Surface (40 mm
or 65 mm). Then fasten the cover with the 4 screws again.
Mounting of the scanner
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
37
o Mount the bracket with each 2 cable guides, 2 washers and 2 knurled knuts to the rail.
2
2
o Run the cable of the scanner at the outer side of the mounting rail at HS-60 to the right machine
side at HF- / X-series to the left machine side.
Fix the cable with another cable guide.
o Connect the cable of the scanner with the interface cable.
2
2
Mounting rail
Cable guide
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
38

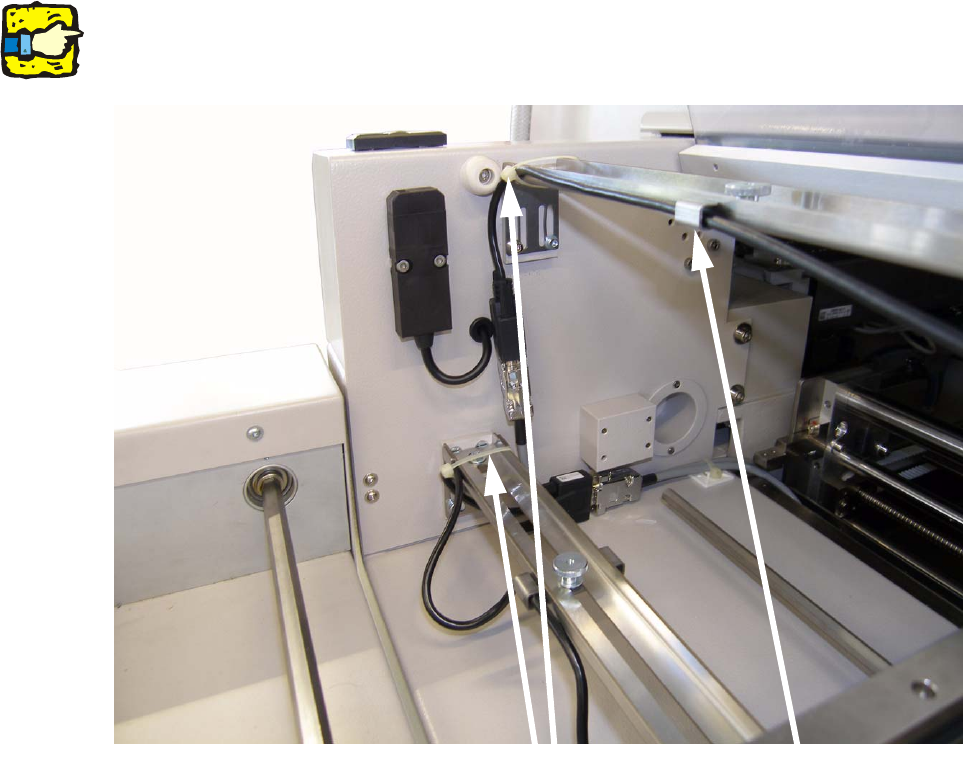

o Fix the cable of the scanner with a cable tie to the mounting rail at the left machine side.
2
Make sure that the scanner can be moved over the total width. 2
2
2
2
2
Cable ties
Cable guide
