2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
38
o Fix the cable of the scanner with a cable tie to the mounting rail at the left machine side.
2
Make sure that the scanner can be moved over the total width. 2
2
2
2
2
Cable ties
Cable guide
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
39

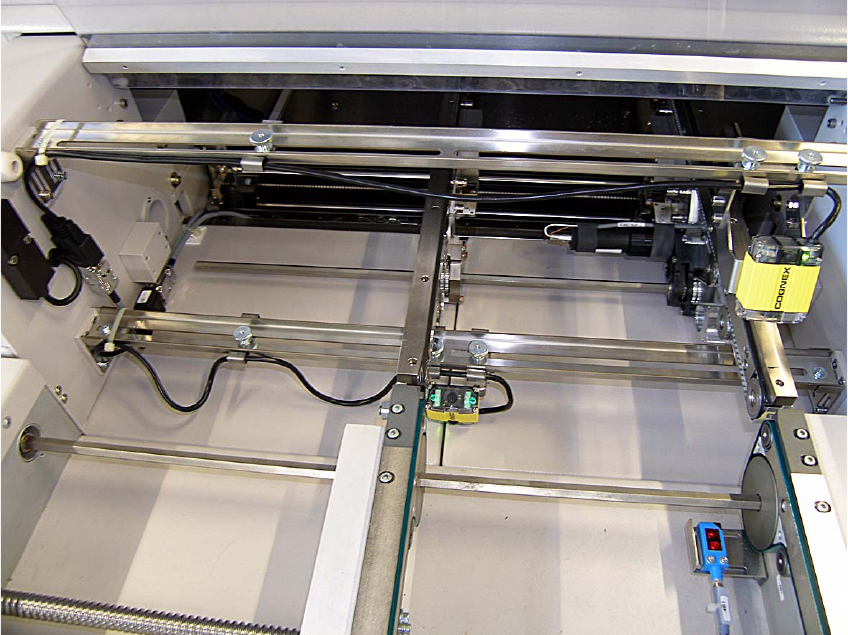

o Repeat this step for all scanners.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
40
o Connect the interface cable with the barcode manifold X1 to X4.
o Switch the switch S1 number 1 to 4 (depending on the number of the connected scanners) to
OFF.
2
The unconnected ports has to stay ON. 2
2
2
2
2
2
2
2
2
2
2
Interface cable
Switch S1
