2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
41

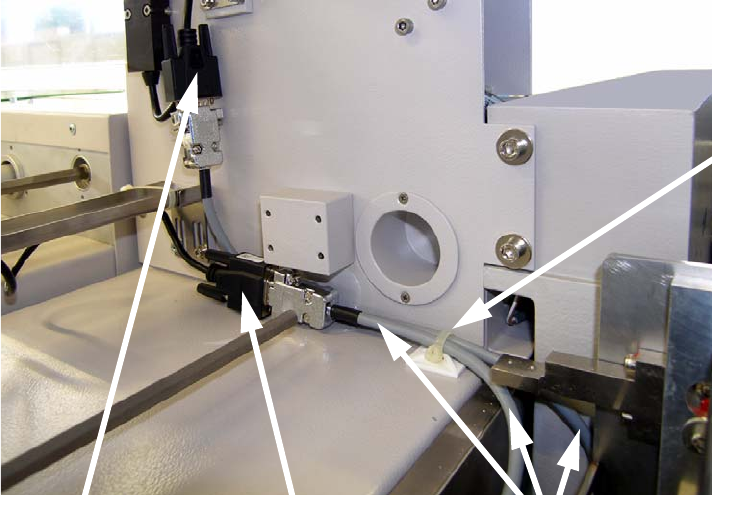

o Fix the interface cable with cable clip and cable tie.
2
Cognex scanner
upper cable
Cognex scanner
lower cable
Cable clip
and
cable tie
Interface cables for
Dataman 100
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
42
2.8 Setup of the Cognex scanner
o Shut down the machine and switch it off at the main switch.
o Disconnect the interface cable from the relevant scanner.
2
If the adapter cable is connected directly to the interface cable, the scanner can be damaged. 2
2
2
2

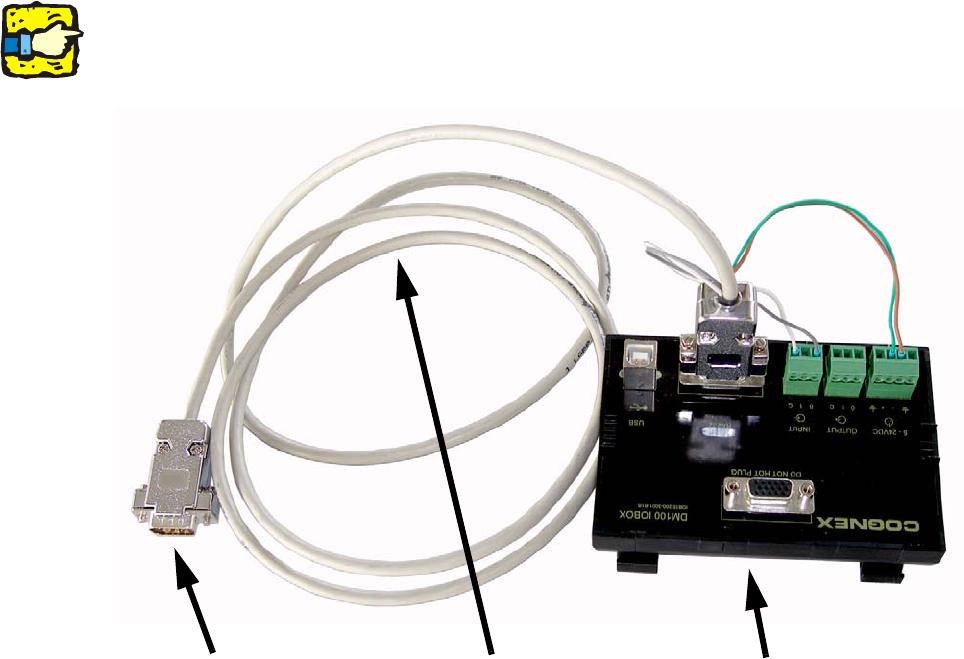

Adapter cable for
Dataman I/O-box
Dataman I/O-Box
Connection to
barcode manifold
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
43
2

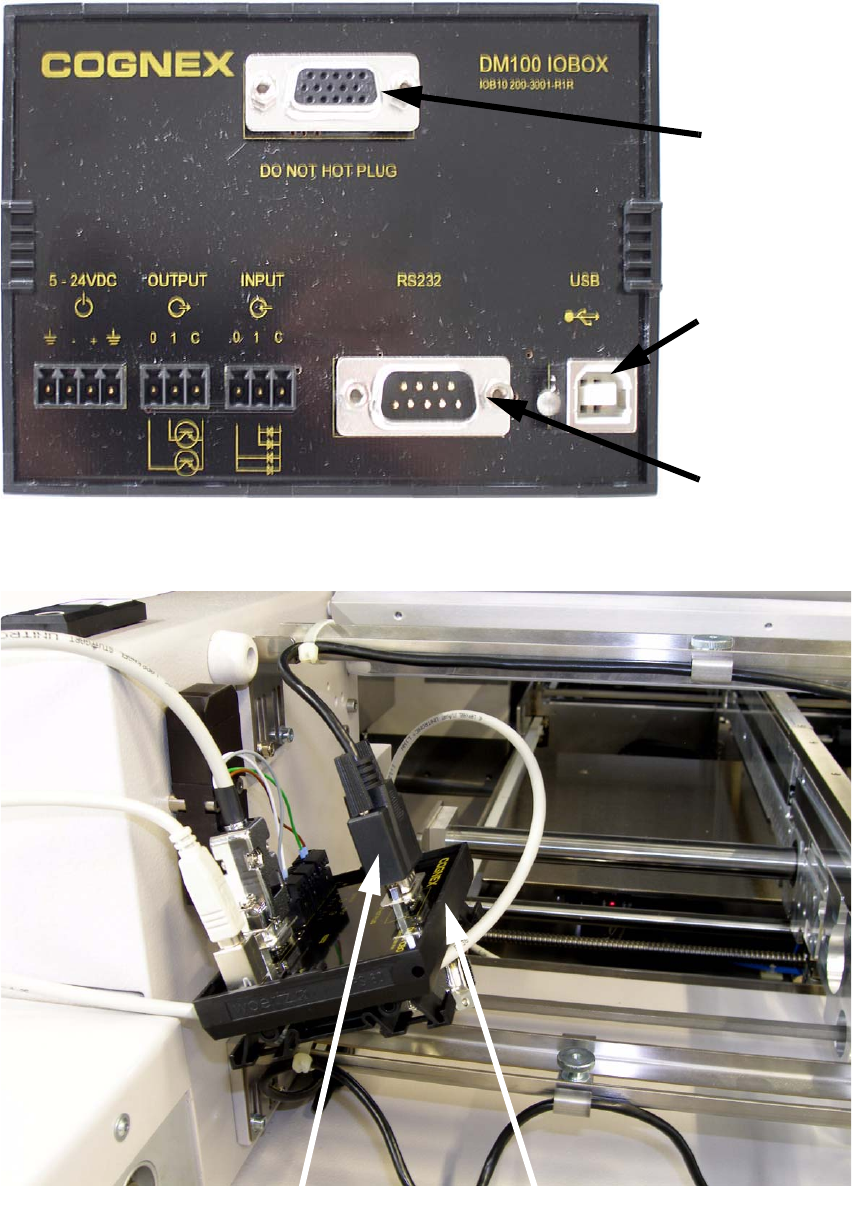

o Take the Dataman I/O-Box and connect the scanner to it.
2
Scanner
connection
Adapter cable
connection
USB
connection
Cable from scanner
Dataman I/O Box
