2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
45
o Open the program. The following menu will appear:
2
2

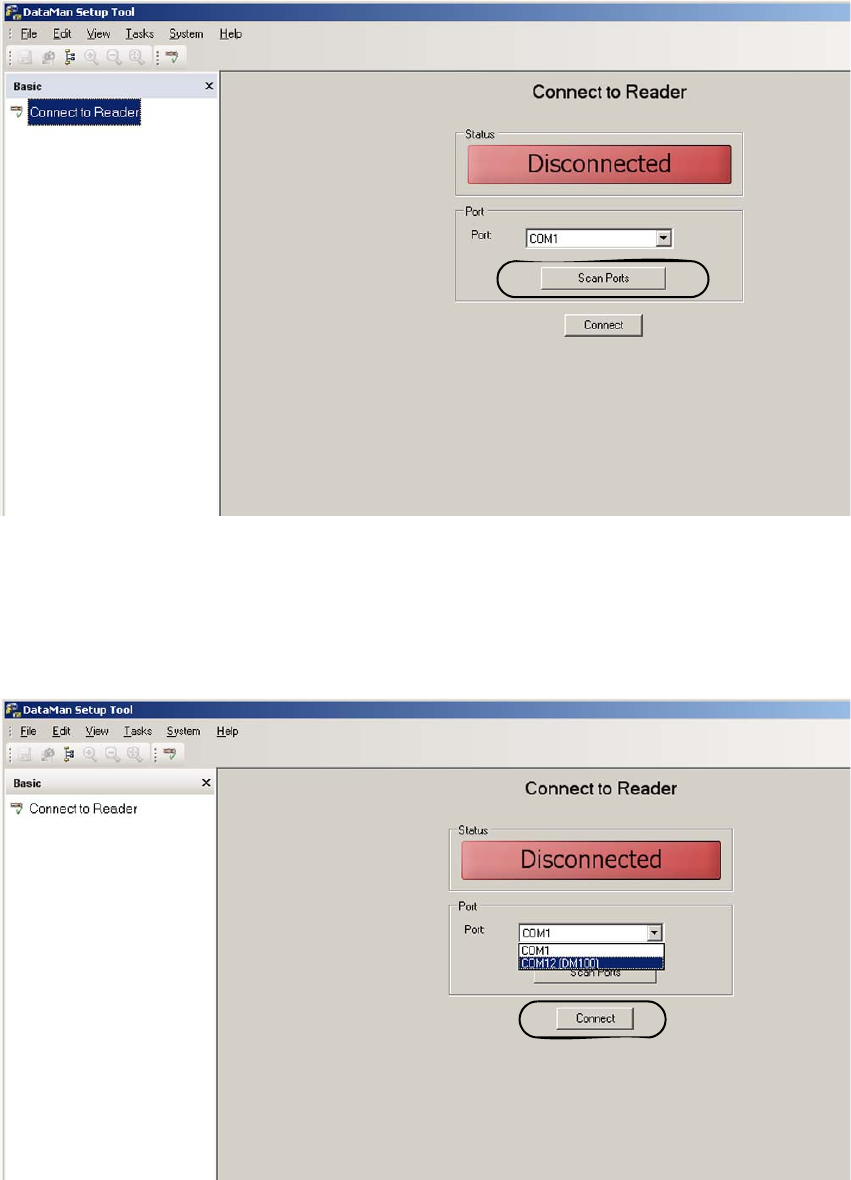

o Click to “ScanPorts” and choose by the pulldown menu the COM connection where DM100
stands behind it and then click “Connect”.
The software connects to the scanner.
2
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
46

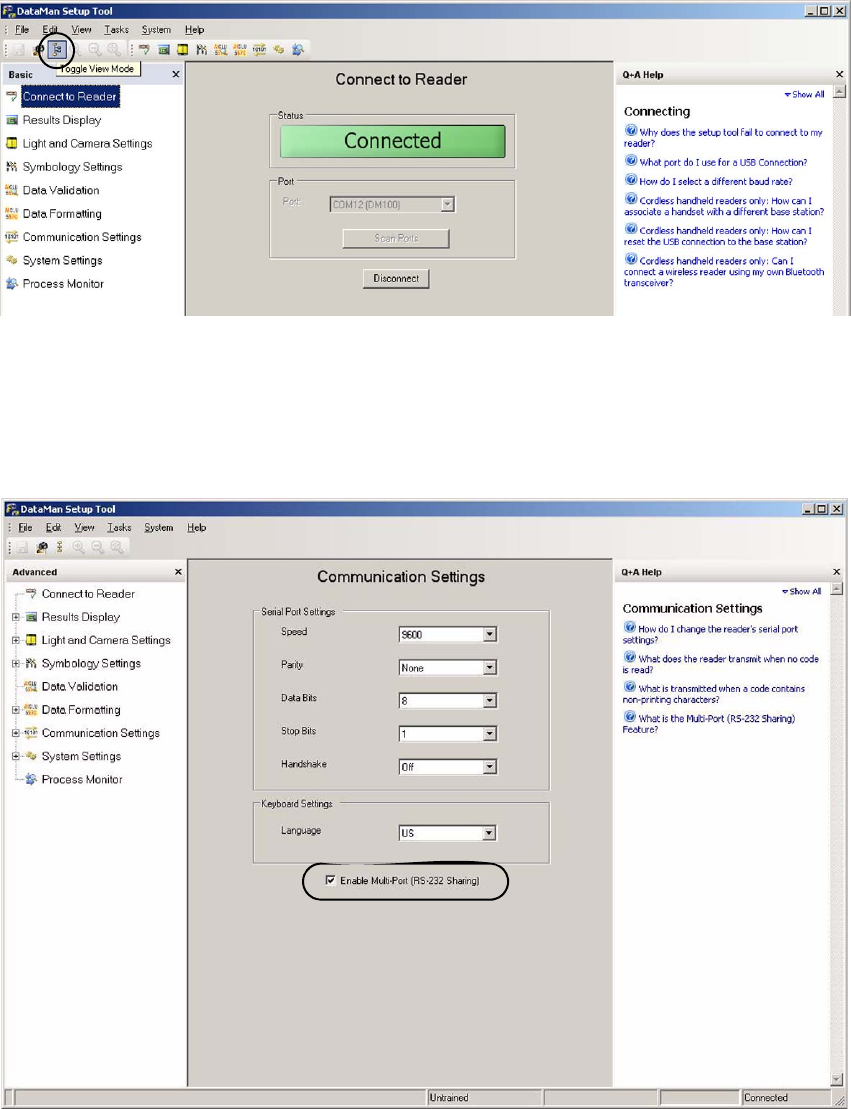

o By clicking the toggle “View Mode” you can see the tree structure.
2
2
o Set the follwing values in the “Communication Settings” view.
If more than one scanner is connected, the tick has to be set at “Enables Multi-Port (RS 232 –
Sharing).
2
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
06/2008 Edition
47
o Change to the “Data Formatting” view and make the following settings:
2
2
o Under “Leading Text” has to be put in the following command: “\x02/0A”.
2
The “A” stands for the installation position of the scanner. Depending on the installation position
the A has to be displaced by “1”, “2”, “3” or “4”. 2
Scanner position Figure for scanner position Command
Single conveyor upper 1 \x02/01
Single conveyor lower 2 \x02/02
Double conveyor upper 3 \x02/03
Double conveyor lower 4 \x02/04
