Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
9
► Back in the previous screen, ensure the boot option IBA GE Slot 0300 v1532 is highlighted.
This is the second network boot option that we also want to disable to save boot time.
► With the device highlighted, press the ENTER key.
Figure 2-5: Disabling the boot option for the second network adapter
► Press the ↓ (down arrow) key until Disabled is highlighted.
► Press the ENTER key to remove the drive from the boot order.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
10
The BIOS settings modifications are now done and you will need to save the changes.
► Press the → (right arrow) key, until the "Save & Exit" menu is displayed.
Figure 2-6: Save & Exit menu with “Save Changes and Exit” selected
► With the option Save Changes and Exit selected, press the ENTER key.
Figure 2-7: “Save configuration and exit?” question
► When asked for Save configuration and exit?, leave the option Yes selected and press the
ENTER key.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
11
3 Installation of Windows Server 2012
The following chapter describes the whole installation process of Windows Server 2012 on the
TX150S8 Server using the delivered media from Fujitsu.
First, you will need the ServerView DVD that is displayed in the following figure.

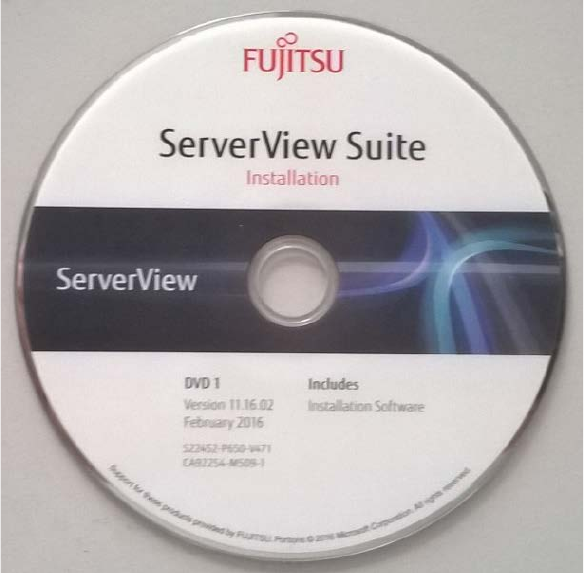

Figure 3-1: Serverview DVD containing the guided installation (version might be updated)
► Start the server and immediately insert the ServerView DVD.
