Installing Primergy T X1320 M2 - Win dows Server 2012 R2 05/2016 Edition 33 Figure 4-10: Changing DVD drive letter to Y ► In the appearing win dow, click the Cha nge… button. ► Select the drive let ter Y from the dropdow…
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
32
Figure 4-8: Server Manager – Starting Disk Management
► On the left side, select Storage – Disk Management.
Figure 4-9: Server Manager – Changing DVD drive letter
► Right-click on the DVD drive in the lower middle of the window and select Change Drive Letter
and Paths….
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
33
Figure 4-10: Changing DVD drive letter to Y
► In the appearing window, click the Change… button.
► Select the drive letter Y from the dropdown menu and click the OK button.
A warning message will appear.
Figure 4-11: Disk Management warning
► Accept the warning message by clicking the Yes button.
4.3 Adding a Second Partition
In most cases, a second partition is appropriate.
Figure 4-12: Starting Computer Management
► Press the Windows key on your keyboard and the “x” key. Click on Computer Management.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
34
The Computer Management opens.

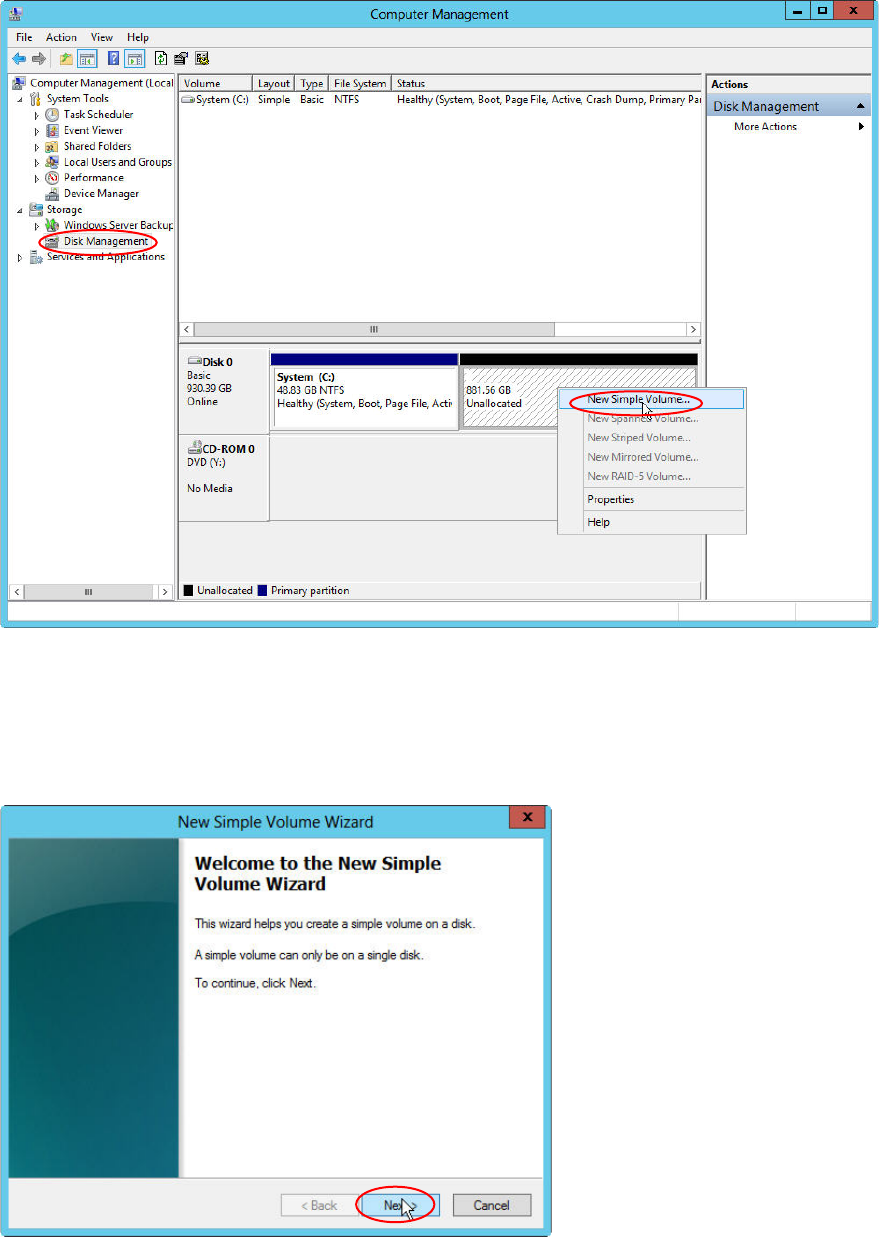

Figure 4-13: Server Manager – Adding a second partition
► On the left side, select Storage – Disk Management.
► In the middle area besides Disk 0, right-click in the unassigned, empty disk space (the shaded
area) and select New Simple Volume.
The New Simple Volume Wizard opens.
Figure 4-14: New Simple Volume Wizard – Welcome
► Click the Next > button.
