Installing Primergy T X1320 M2 - Win dows Server 2012 R2 05/2016 Edition 20 Figure 3-14: Boot process pic ture #1 - Boot Manager appearing aga in after boot Figure 3-15: Boot process pic ture #2
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
19
CAUTION
Wrong default gateway
To proceed with th
e installation, the value 127.0.0.1 was entered for the default gateway.
Please keep in mind to remove this IP configuration setting after installation, since wrong
default gateway settings cause network routing problems! Additionally, only existing
gateways should be entered.
► Click the Next button to continue.
The next screen displays the summary.

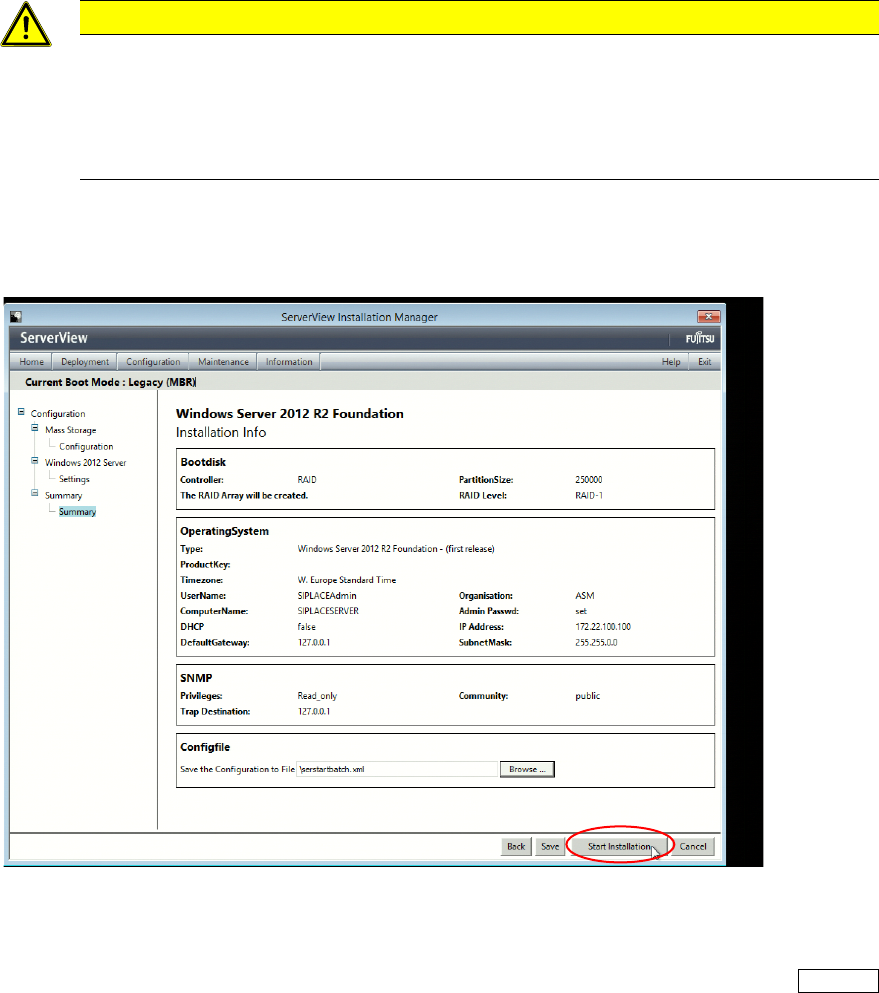

Figure 3-13: Installation configuration summary
► Click on Start Installation to begin the installation.
During installation, the system reboots several times. Also, the Boot Manager may appear again. In
this case, you don’t have to do anything, but you may select the first entry by pressing the ENTER
button.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
20

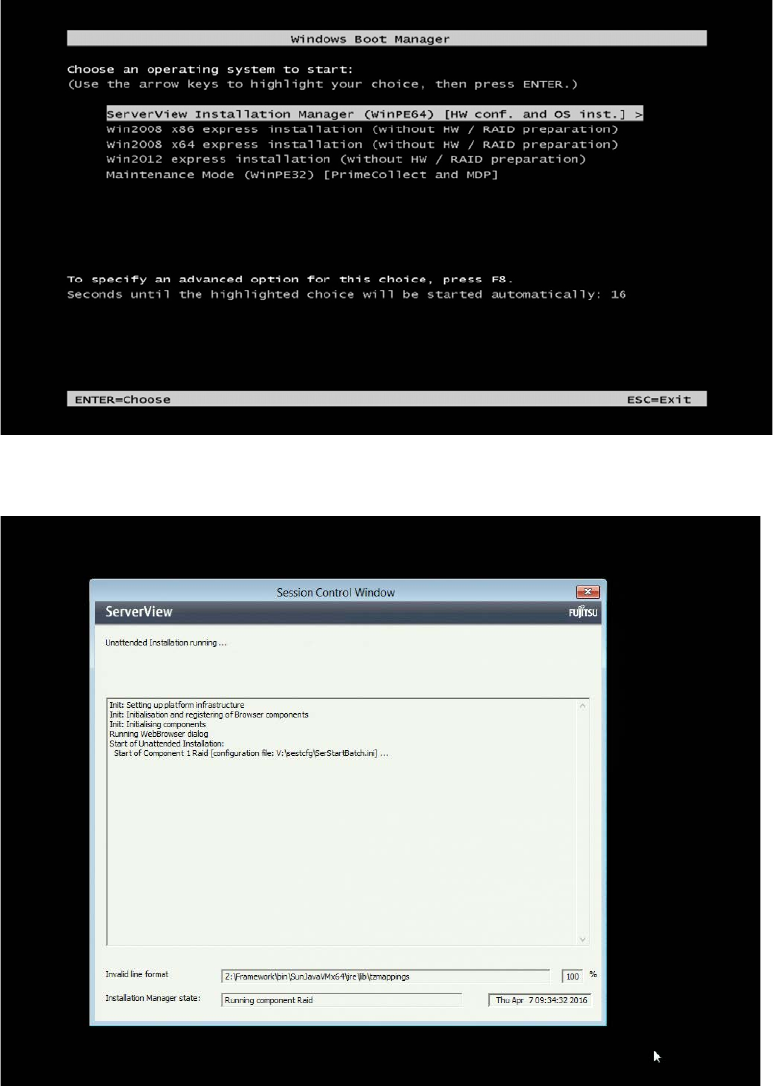

Figure 3-14: Boot process picture #1 - Boot Manager appearing again after boot
Figure 3-15: Boot process picture #2
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
21
Figure 3-16: Boot process picture #3
After a while, the system asks for the operating system installation media.
Figure 3-17: Installation Manager asking for operating system Installation media
► Insert the delivered Windows Server 2012 R2 installation media into the DVD drive and click
the OK button.
