Installing Primergy T X1320 M2 - Win dows Server 2012 R2 05/2016 Edition 22 The installation media should look like t his: Figure 3-18: White Operating Sy stem Installation Media for TX150 ( description might differ a bi…
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
21
Figure 3-16: Boot process picture #3
After a while, the system asks for the operating system installation media.

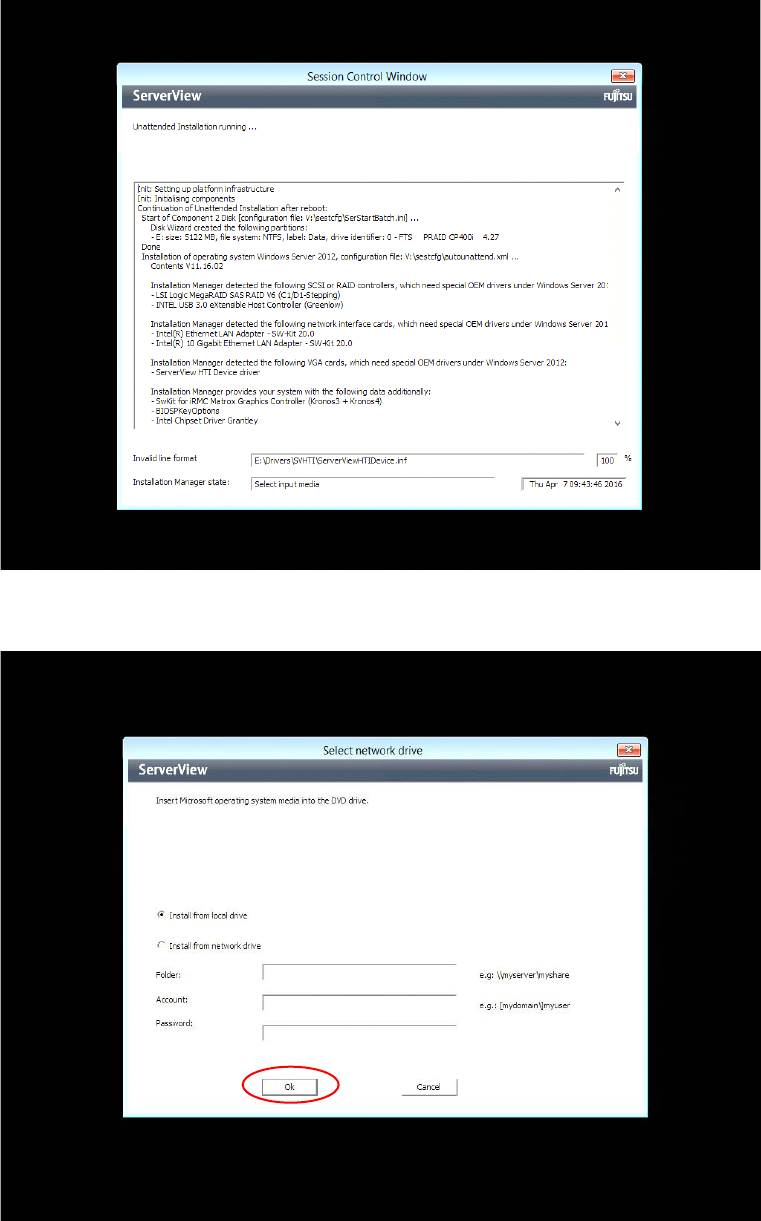

Figure 3-17: Installation Manager asking for operating system Installation media
► Insert the delivered Windows Server 2012 R2 installation media into the DVD drive and click
the OK button.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
22
The installation media should look like this:

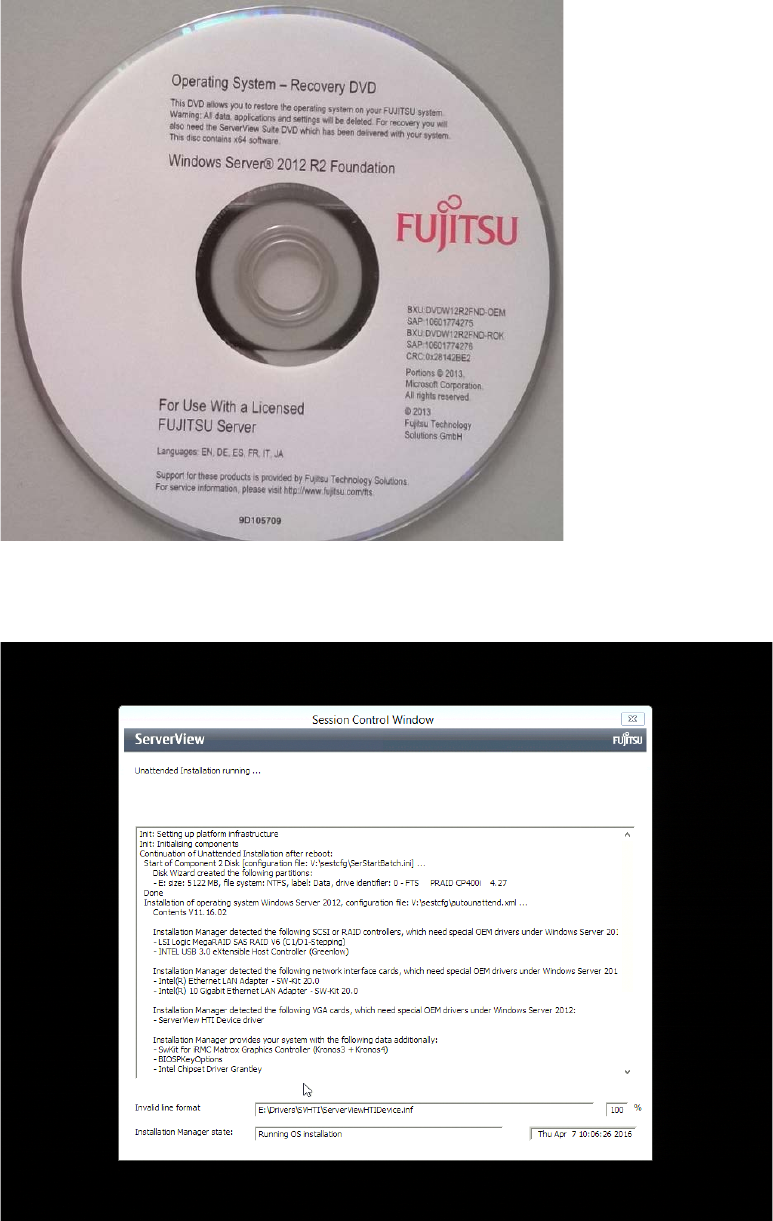

Figure 3-18: White Operating System Installation Media for TX150 (description might differ a bit, depending on the
Operating System version)
The Installation Manager continues preparing the installation.
Figure 3-19: Installation Manager preparing the installation with hardware specific drivers
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
23
The whole preparation process, including Windows Setup, will take some time.

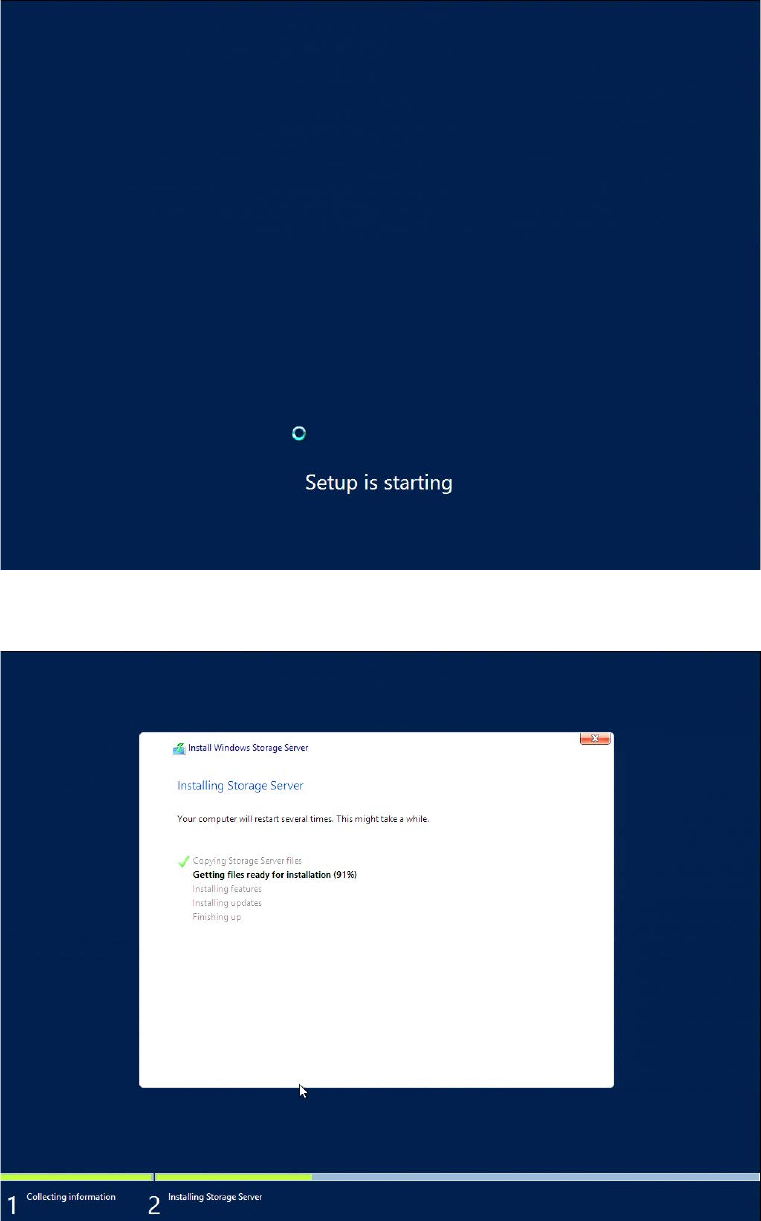

Figure 3-20: Starting Windows Setup
Figure 3-21: Running Windows Setup
