Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
12
After the system has started from the DVD, the following options appear for a short time.

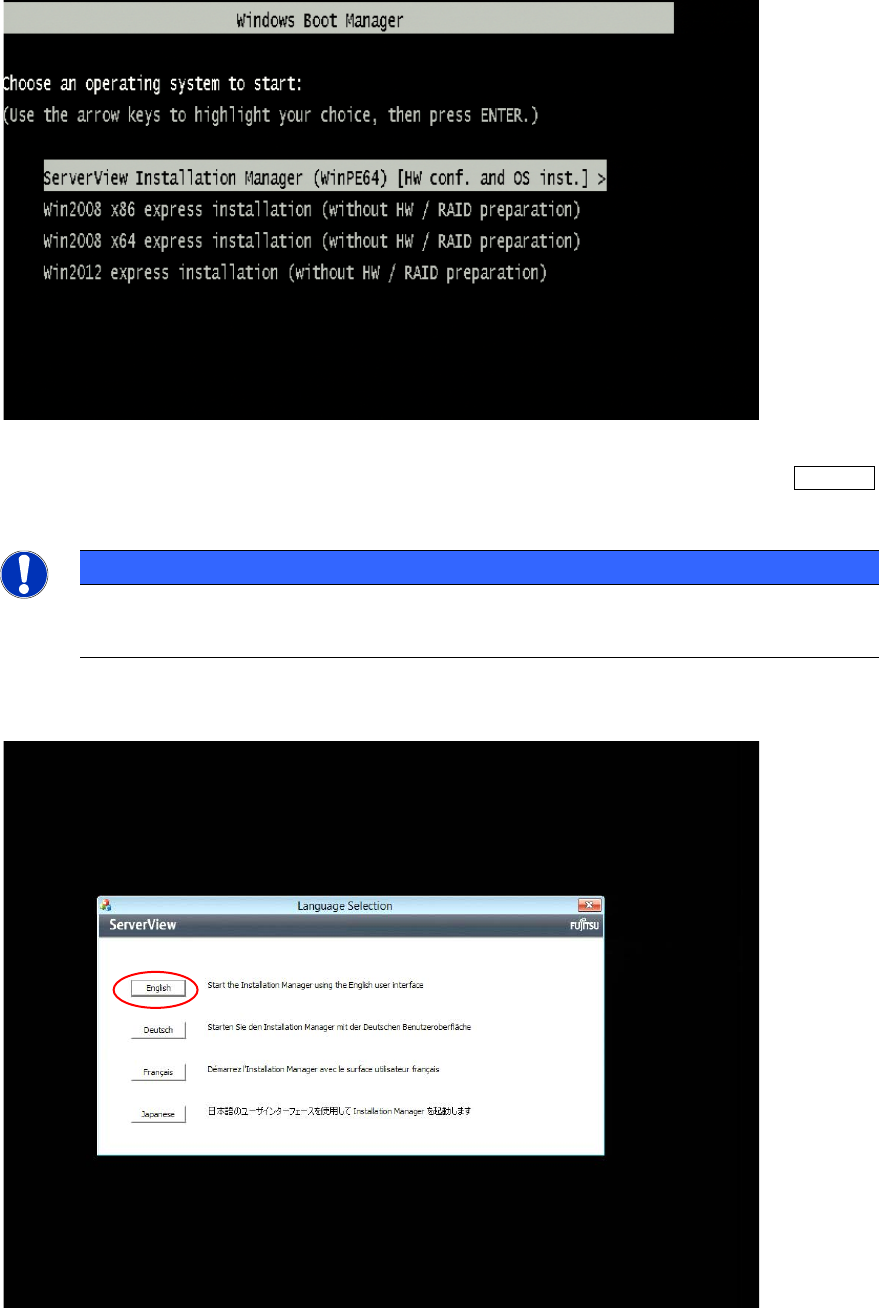

Figure 3-2: Options when booting from ServerView DVD
► Ensure that the first option ServerView Installation Manager is selected and press the ENTER
key.
NOTICE
The boot options will only be displayed a couple of seconds
If you don’t press a key within about 15 seconds, the boot options menu will be skipped.
The boot process might take some time. After that, the language selection should be displayed.
Figure 3-3: ServerView language selection
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
13
► Select the language you understand by clicking on the appropriate language button.
This selection will only affect the language of the guided installation (not the language of the
Operating System to install). In this manual, English is used.
After you have selected the language, the Installation Manager will initialize. This may take about 2
minutes.

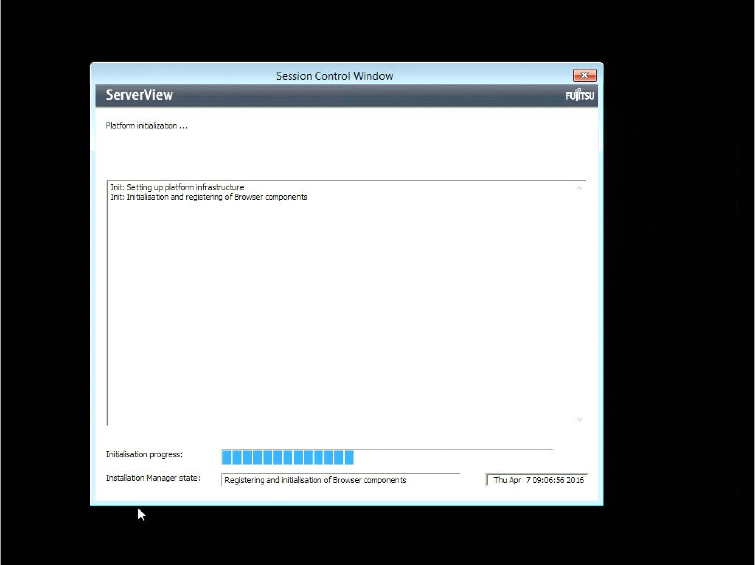

Figure 3-4: Initializing Installation Manager – part 1
After initialization, the Regional and Language Settings screen appears.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
14
► In the keyboard layout field, select the language of your keyboard. In most cases, this will be
US-International, as displayed in the following figure.

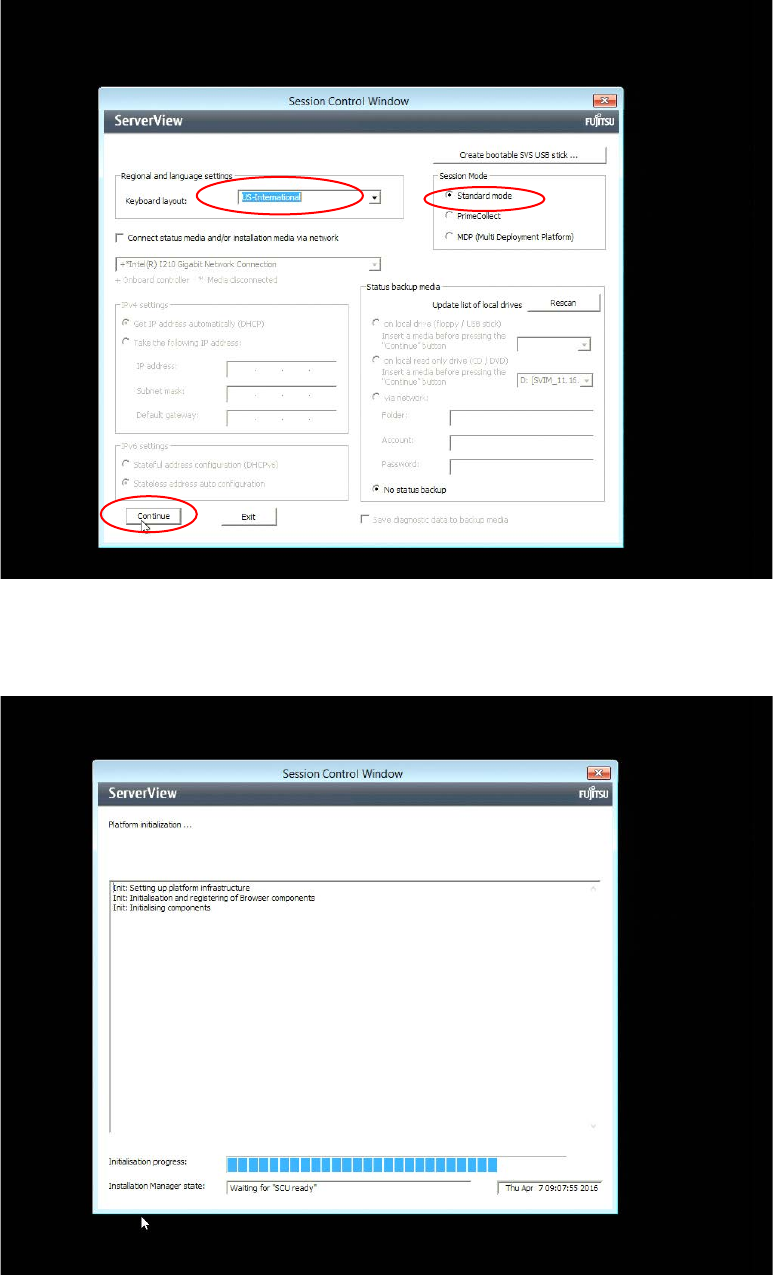

Figure 3-5: Regional and Language settings screen with US-International keyboard selected
► Leave the Standard mode option selected and click the Continue button.
► Wait while the Installation Manager continues initializing.
Figure 3-6: Initializing Installation Manager – part 2
