Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
34
The Computer Management opens.
Figure 4-13: Server Manager – Adding a second partition
► On the left side, select Storage – Disk Management.
► In the middle area besides Disk 0, right-click in the unassigned, empty disk space (the shaded
area) and select New Simple Volume.
The New Simple Volume Wizard opens.
Figure 4-14: New Simple Volume Wizard – Welcome
► Click the Next > button.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
35
Figure 4-15: New Simple Volume Wizard – Specify Volume Size
► Leave the value for the simple volume size (using all remaining space) and click the Next >
button.
Figure 4-16: New Simple Volume Wizard – Assign Drive Letter or Path
► Ensure that drive D is selected in the dropdown menu and click the Next > button.
Figure 4-17: New Simple Volume Wizard – Format Partition
► Select the radio button besides Format this volume with the following settings.
► Select NTFS besides File system.
► Leave the default allocation unit size and enter a name for the new volume, e.g. “Data”.
► Select the Perform a quick format checkbox and click the Next > button.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
36

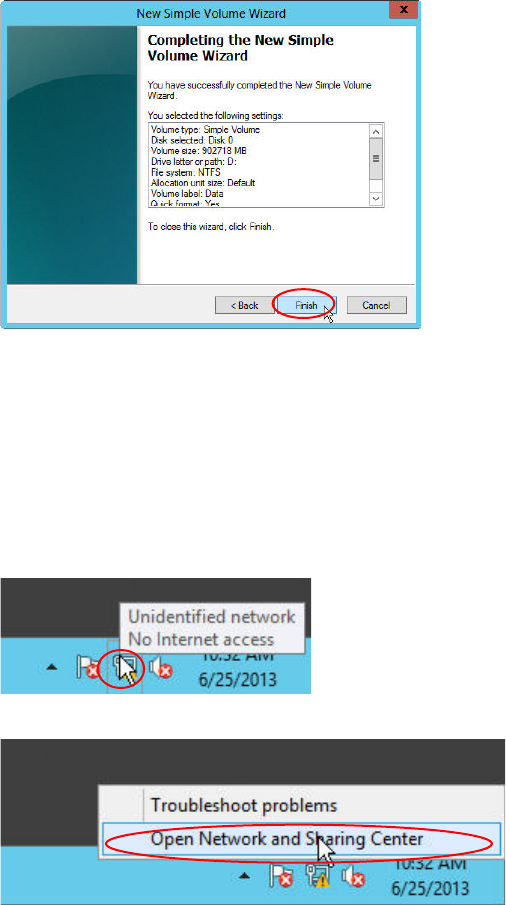

Figure 4-18: New Simple Volume Wizard – Completed
► Click the Finish button to complete the task. Formatting may take a couple of seconds.
4.4 Removing Default Gateway
As mentioned before, you have to remove the dummy default gateway that was entered during the
Installation Manager guided setup.
Figure 4-19: Network Icon
Figure 4-20: Opening Network Settings
► Right-click on the Network Icon in the lower right corner and select Open Network and Sharing
Center.
The Network and Sharing Center opens.
