Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
31
Figure 4-6:Uninstalling AIS – Setup completed
► Click the Finish button to complete the setup.
4.2 Changing DVD Drive Letter
To be ready for additional partitions and other new drives, it is recommended to change the letter of
the DVD drive.
Figure 4-7: Starting Computer Management
► Press the Windows key on your keyboard and the “x” key. Click on Computer Management.
The Computer Management opens.
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
32

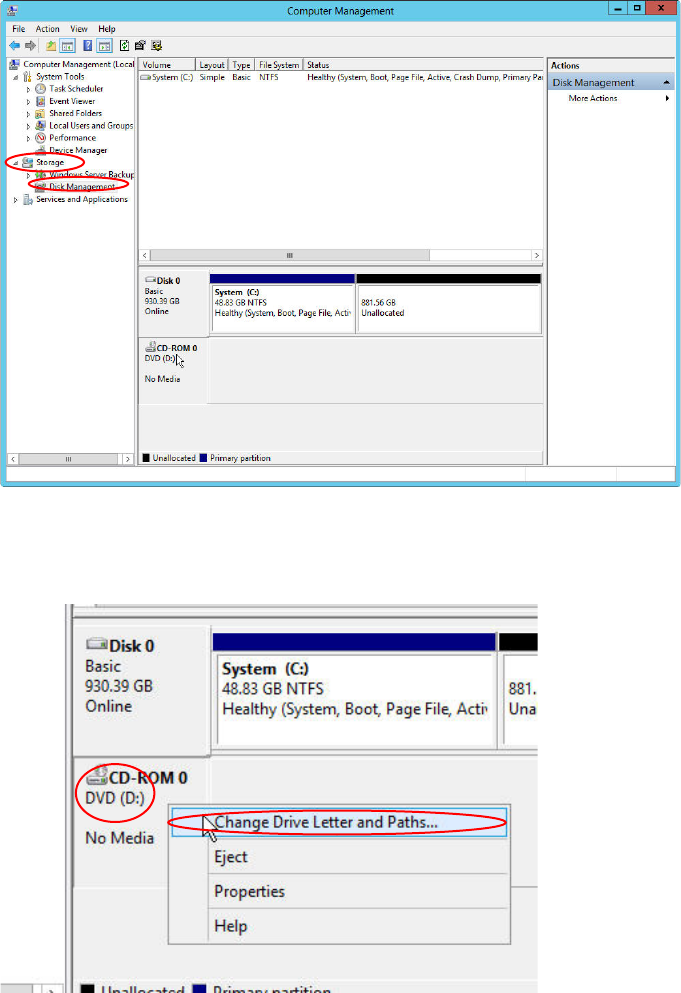

Figure 4-8: Server Manager – Starting Disk Management
► On the left side, select Storage – Disk Management.
Figure 4-9: Server Manager – Changing DVD drive letter
► Right-click on the DVD drive in the lower middle of the window and select Change Drive Letter
and Paths….
Installing Primergy TX1320 M2 - Windows Server 2012 R2 05/2016 Edition
33

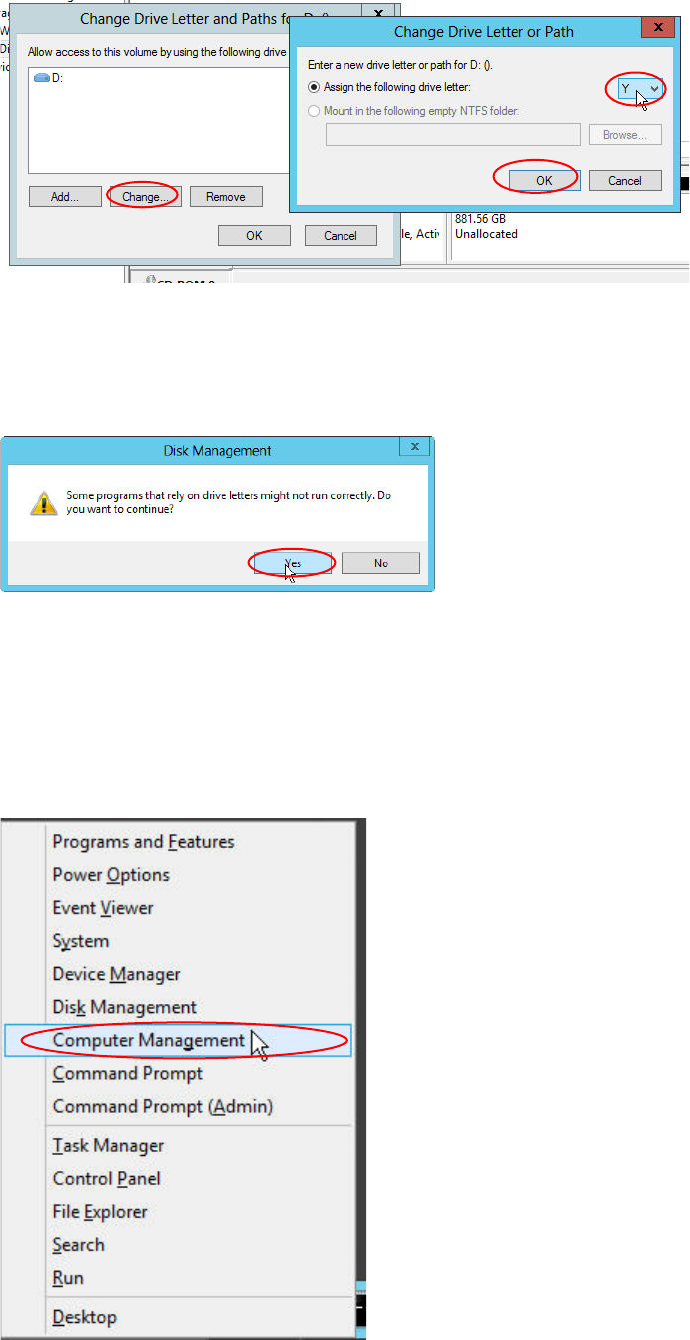

Figure 4-10: Changing DVD drive letter to Y
► In the appearing window, click the Change… button.
► Select the drive letter Y from the dropdown menu and click the OK button.
A warning message will appear.
Figure 4-11: Disk Management warning
► Accept the warning message by clicking the Yes button.
4.3 Adding a Second Partition
In most cases, a second partition is appropriate.
Figure 4-12: Starting Computer Management
► Press the Windows key on your keyboard and the “x” key. Click on Computer Management.
