1 WF2 SX1/2 Check the head status, remove tables (COT), exchange nozzles and shut
down machine
1.5 min 3 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part:
W1, W2, W3, W58, W63
Consumables:
www.asm-smt.com
13 Return all maintained nozzle magazines
with ceramic nozzles.
www.asm-smt.com
2 WF2 SX1/2 Empty and clean the reject bin. 0.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T2
Wear Part: Consumables:
C3
www.asm-smt.com

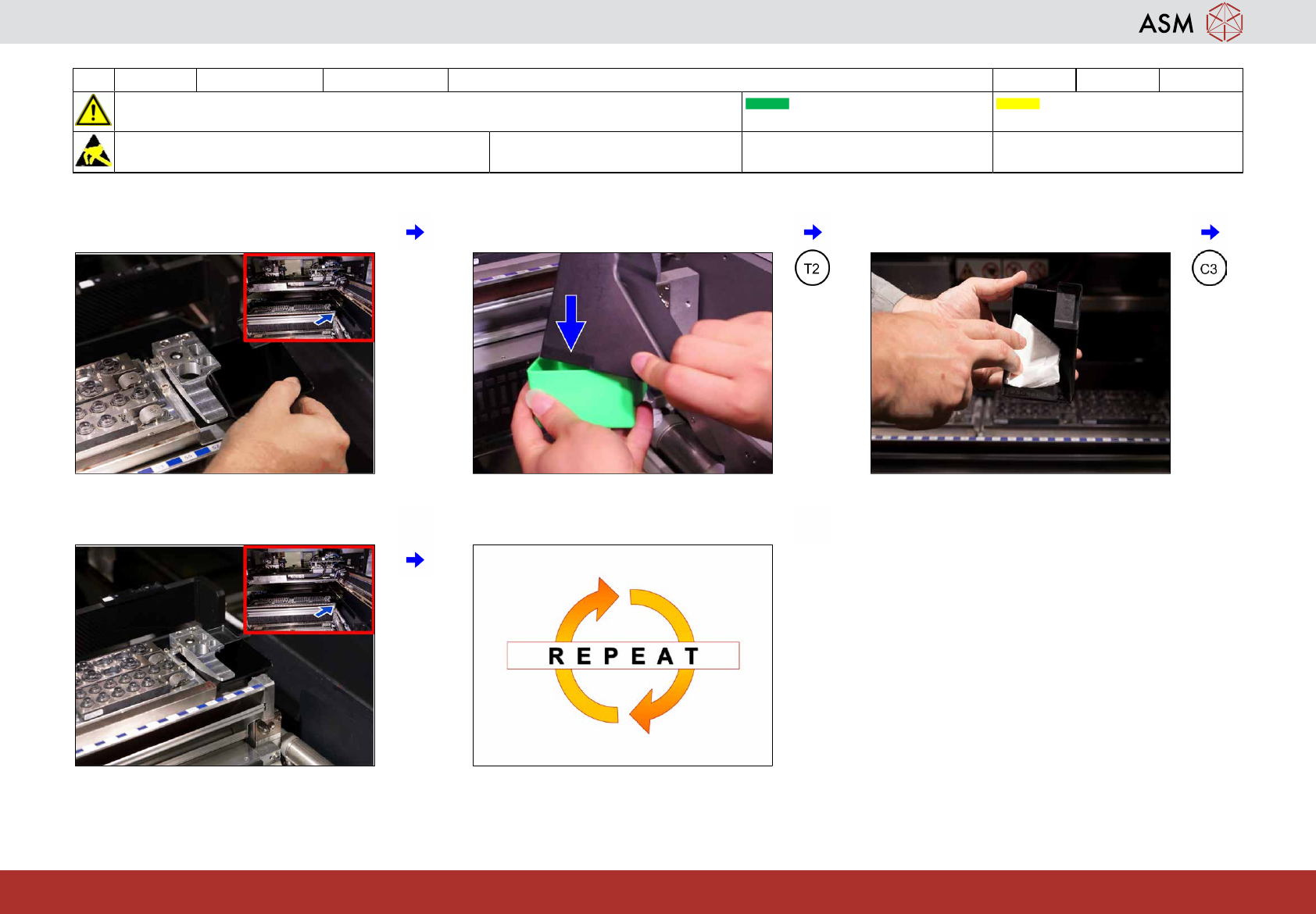

1 Remove the reject bin. 2 Empty the reject bininto a waste box. 3 Clean the reject bin.
4 Return the reject bin. 5 Repeat all steps at the other location.
