18 WF2 SX1/2 Appendix: C&P20x head exchange 3 min 3 / 6 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e Machine Status…
18 WF2 SX1/2 Appendix: C&P20x head exchange 3 min 2 / 6
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T49, T85, T94, K01
Wear Part: Consumables:
www.asm-smt.com

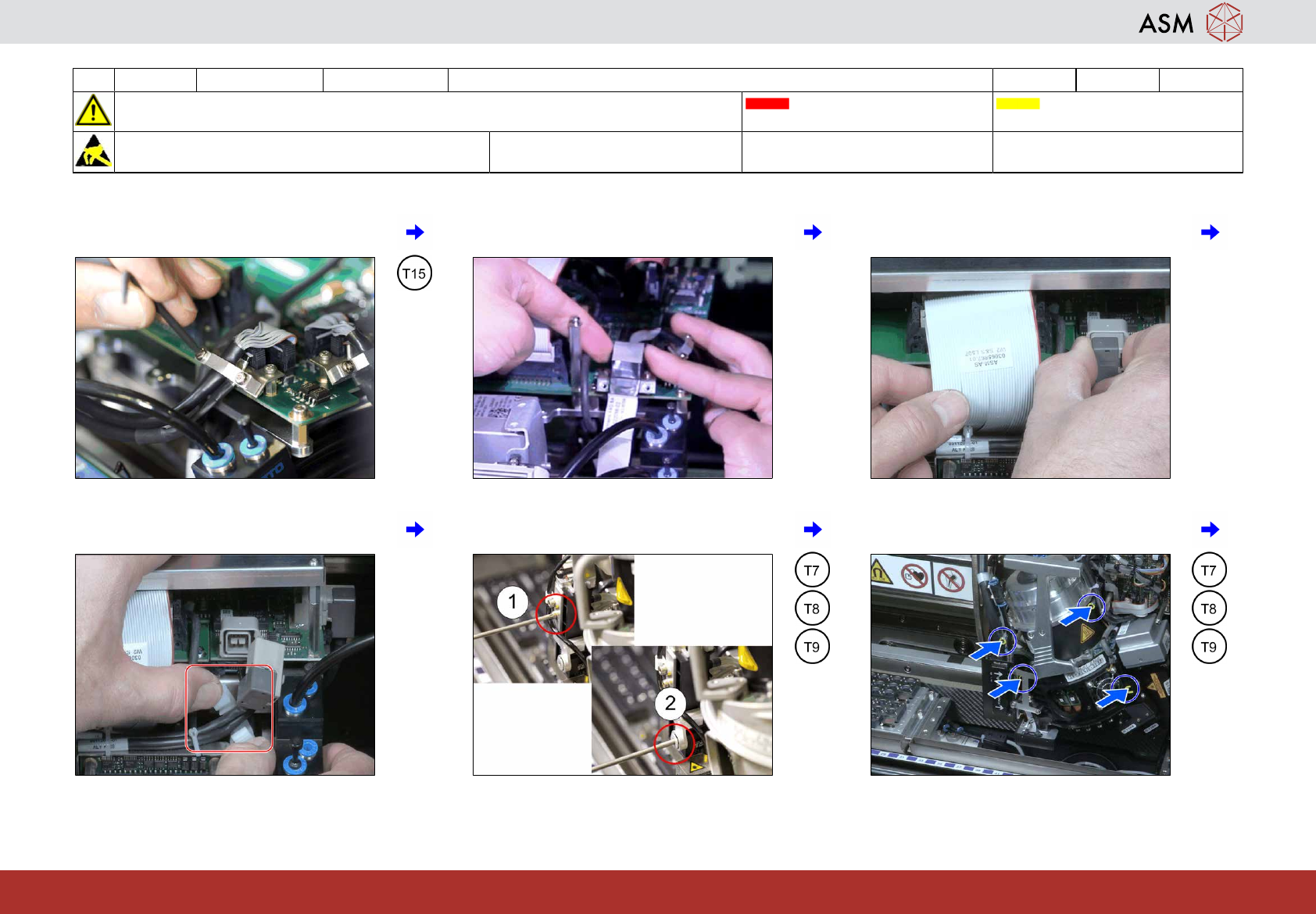

7 Loosen the screws holding the strain relief
(HotLink only).
8 Unplug both camera cables (HotLink only). 9 Release the plug lock and unplug the two
camera cables (GigE only).
10 Open the camera cable clip (GigE only). 11 Loosen the 2 screws on the pressure reg-
ulator valve (C&P20 A only).
12 Loosen the 4 screws fixing the head.
18 WF2 SX1/2 Appendix: C&P20x head exchange 3 min 3 / 6
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T49, T85, T94, K01
Wear Part: Consumables:
www.asm-smt.com

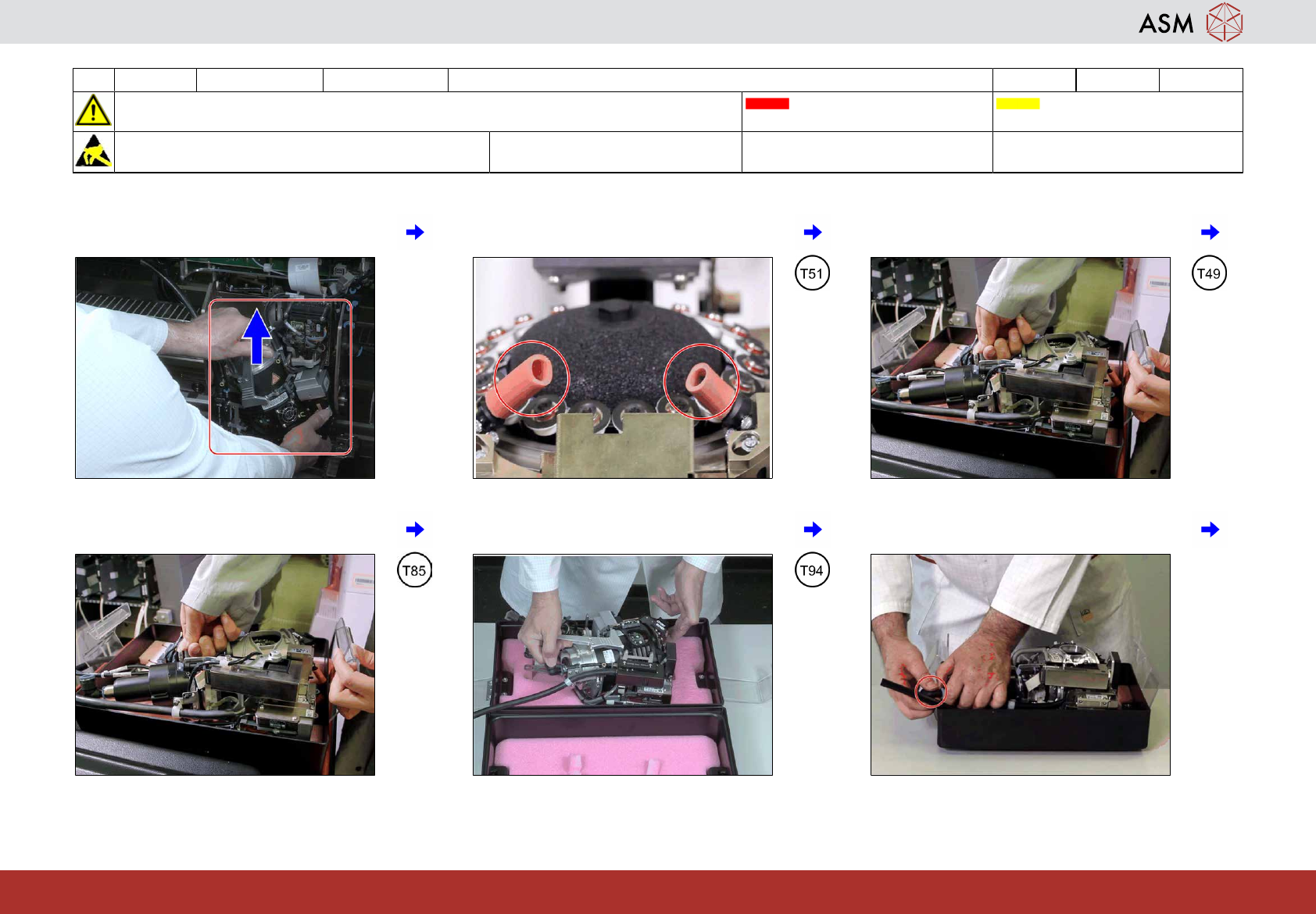

13 Take the head from the hook. 14 Put on the component sensor protection
(C&P20 A only).
15 Put the head into the transport container
(C&P20 A only).
16 Put the head into the transport container
(C&P20 P only).
17 Put the head into the transport container
(C&P20 P2 only).
18 Remove the elbow.
18 WF2 SX1/2 Appendix: C&P20x head exchange 3 min 4 / 6
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T49, T85, T94, K01
Wear Part: Consumables:
www.asm-smt.com
19 Open the transport container and mount
the elbow.
20 Take the maintained head out of transport
container.
21 Remove the component sensor protection
(C&P20 A only).
22 Place the head at the hook. 23 Insert the 4 screws to fix the head and
fasten them with a torque of 2.7Nm.
24 Fasten screws (1) and (2) of the pressure
regulator valve with a torque of 0.9 Nm
(C&P20 A only).
