21 WF2 SX1/2 Appendix: Calibrate the maintained C&P head 4.5 min 2 / 5 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e…
21 WF2 SX1/2 Appendix: Calibrate the maintained C&P head 4.5 min 1 / 5
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, K01
Wear Part: Consumables:
C3
www.asm-smt.com

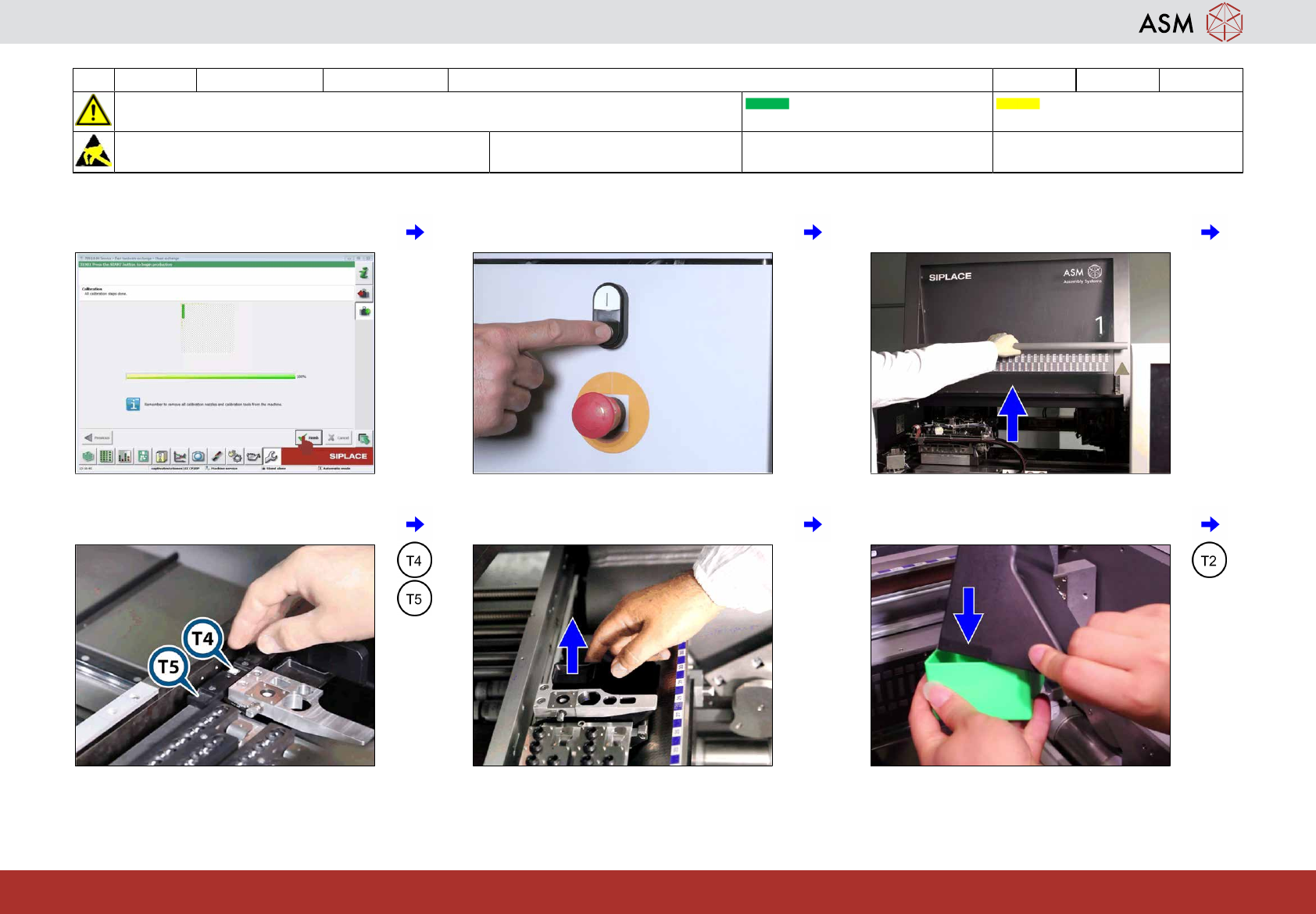

1 Open the cover. 2 Insert the calibration tool for C&P20x (T4)
or CPP (T5).
3 Close all covers.
4 Click on "Settings and options". 5 Click on "User settings". 6 Click on "Machine service" and "Cali-
bration".
21 WF2 SX1/2 Appendix: Calibrate the maintained C&P head 4.5 min 2 / 5
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, K01
Wear Part: Consumables:
C3
www.asm-smt.com

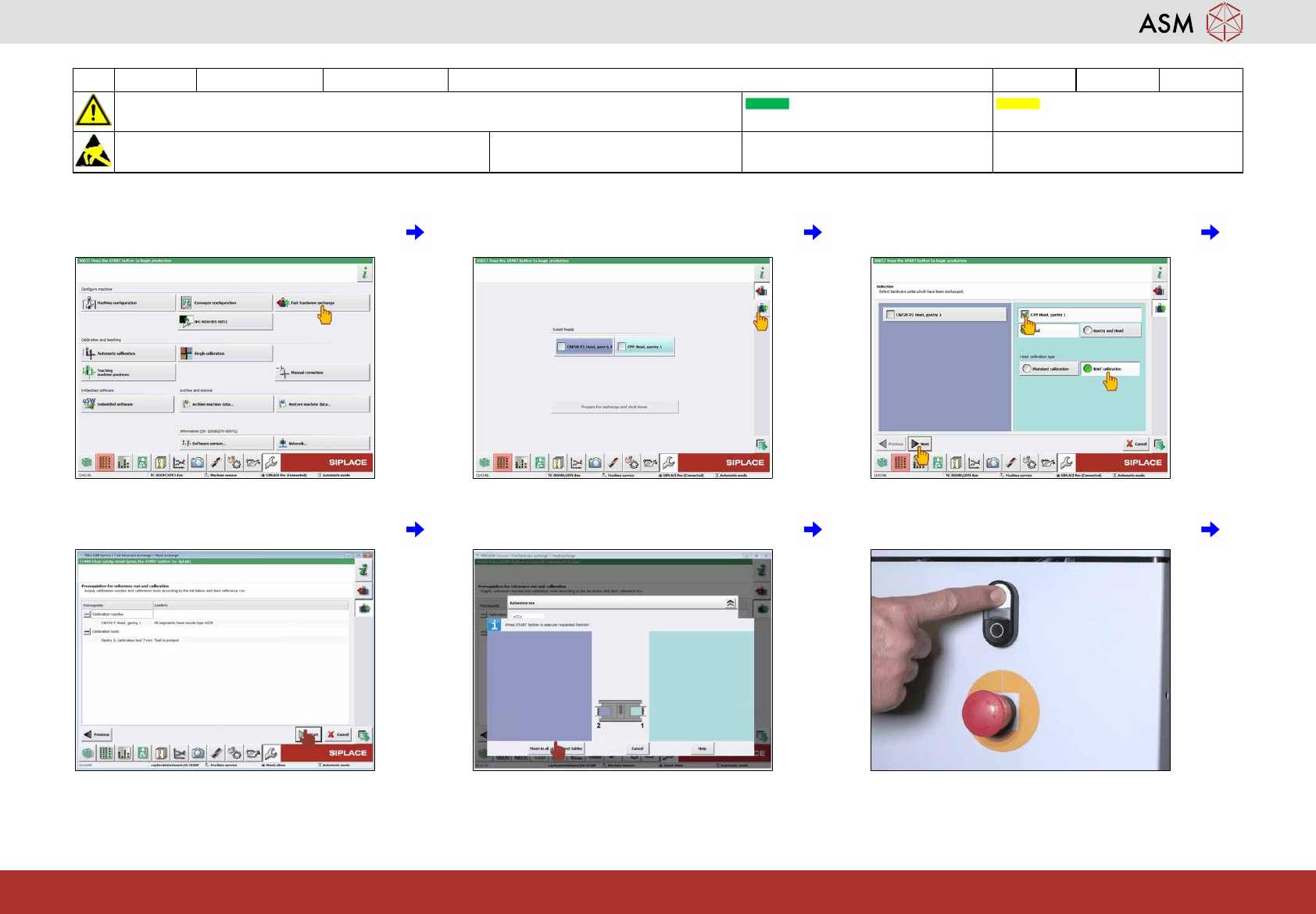

7 Click on "Fast hardware exchange". 8 Click on "Head exchange". 9 Select the head to be calibrated, "Brief
calibration" and click on "Next".
10 Click on "Start". 11 Click on "Move in all component tables". 12 Press the start button.
21 WF2 SX1/2 Appendix: Calibrate the maintained C&P head 4.5 min 3 / 5
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, K01
Wear Part: Consumables:
C3
www.asm-smt.com
13 Click on "Finish". 14 Press the stop button. 15 Open the cover.
16 Remove the calibration tool. 17 Remove the reject bin. 18 Empty the reject bininto a waste box.
