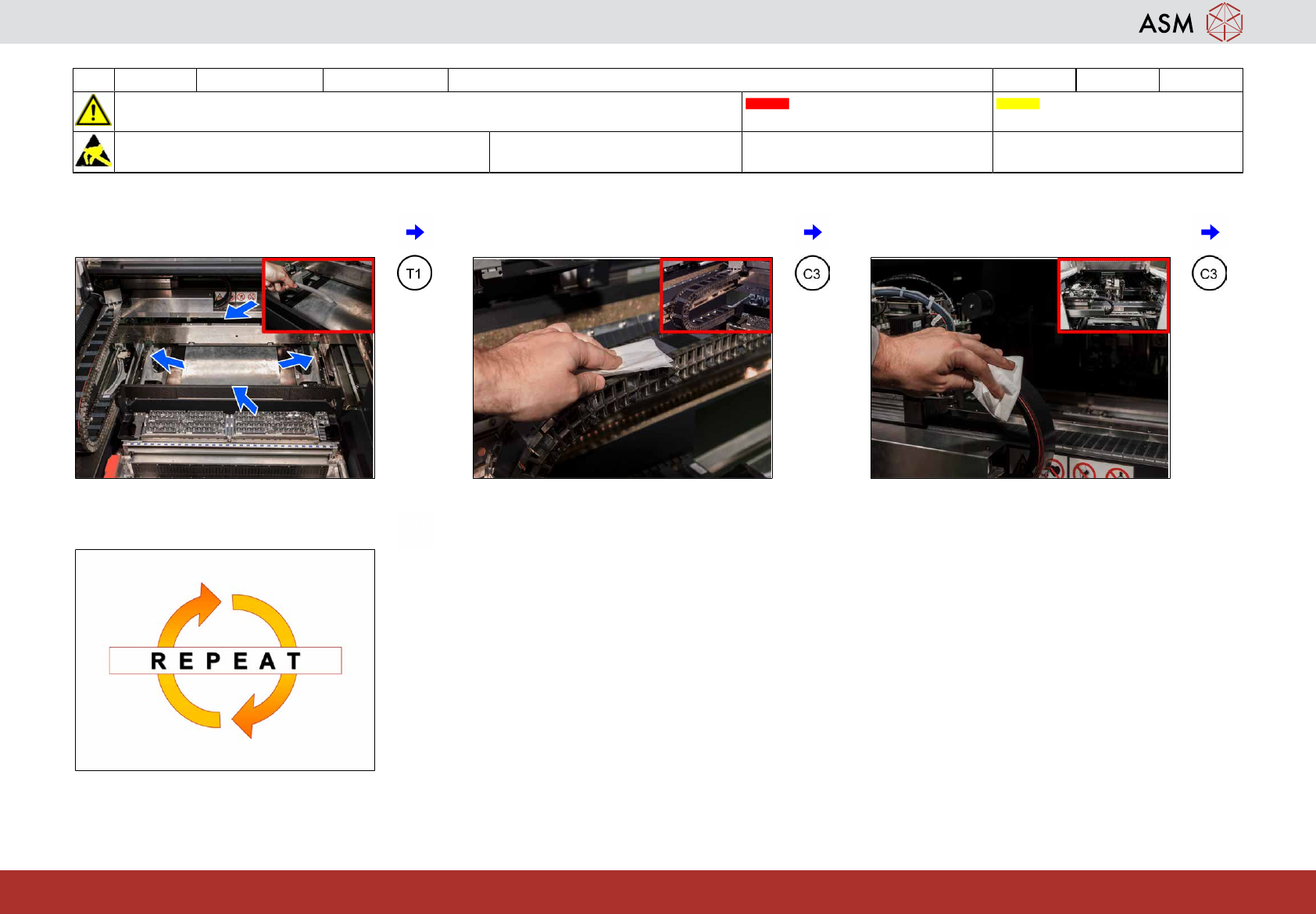

9 WF2 SX1/2 Clean the conveyor, lifting tables and gantry cables. 1.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T1
Wear Part: Consumables:
C3
www.asm-smt.com
1 Remove all loose components on and
around the whole PCB conveyor.
2 Clean the gantry cables of the Y-Axis. 3 Clean the gantry cables of the X-Axis.
4 Repeat all steps at the other gantry.
www.asm-smt.com

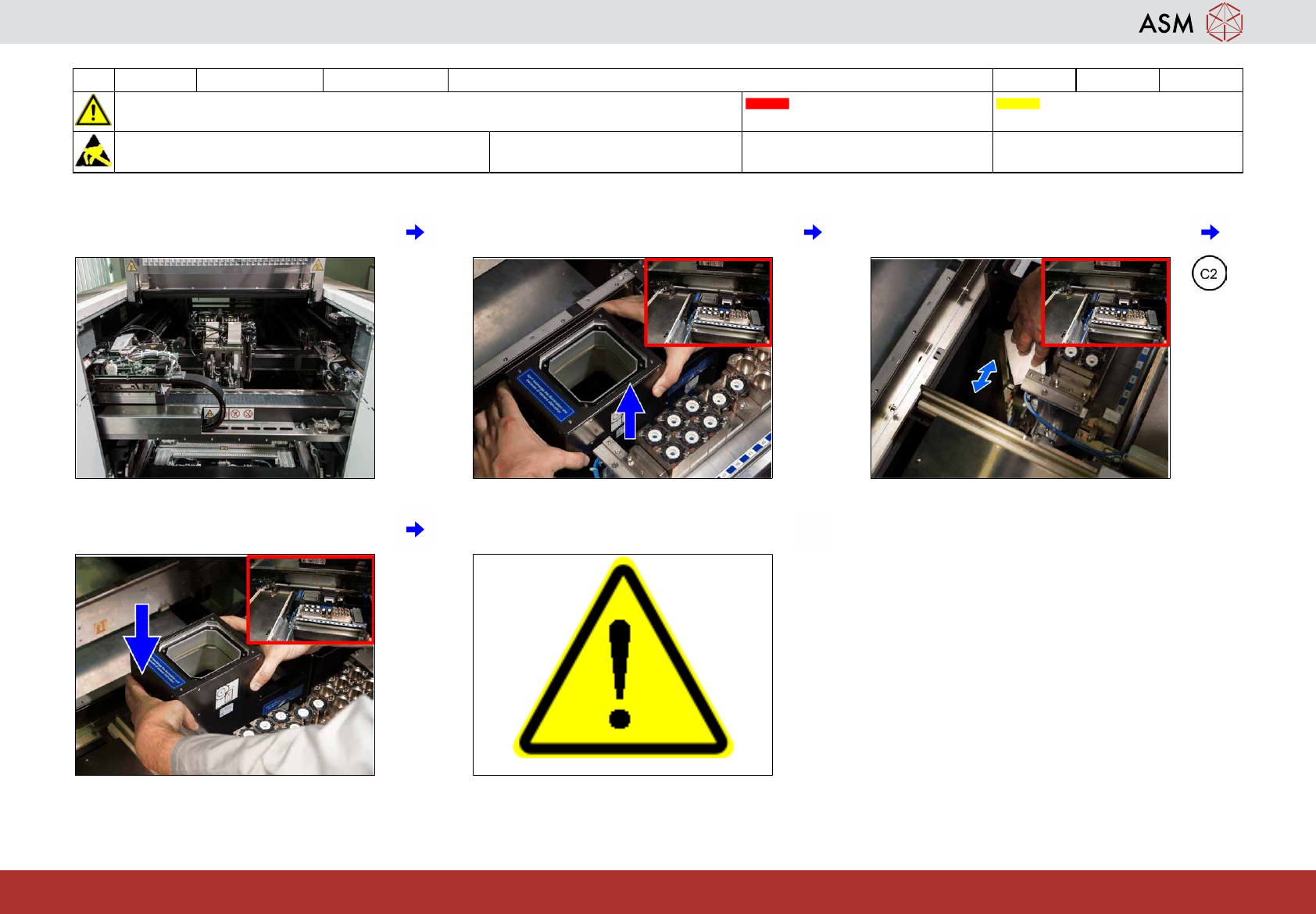

10 WF2 SX1/2 Clean the stationary camera (CPP / TH). 1 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C2
www.asm-smt.com
1 Move both gantries to the end limit. 2 Take out the upper section of the IC-cam-
era.
3 Clean the slanted glass.
4 Refit the upper section of the camera. 5 Ensure the upper section is mounted to
the lower section it belongs to.
