2 WF2 SX1/2 Empty and clean the reject bin. 0.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T2
Wear Part: Consumables:
C3
www.asm-smt.com
1 Remove the reject bin. 2 Empty the reject bininto a waste box. 3 Clean the reject bin.
4 Return the reject bin. 5 Repeat all steps at the other location.
www.asm-smt.com

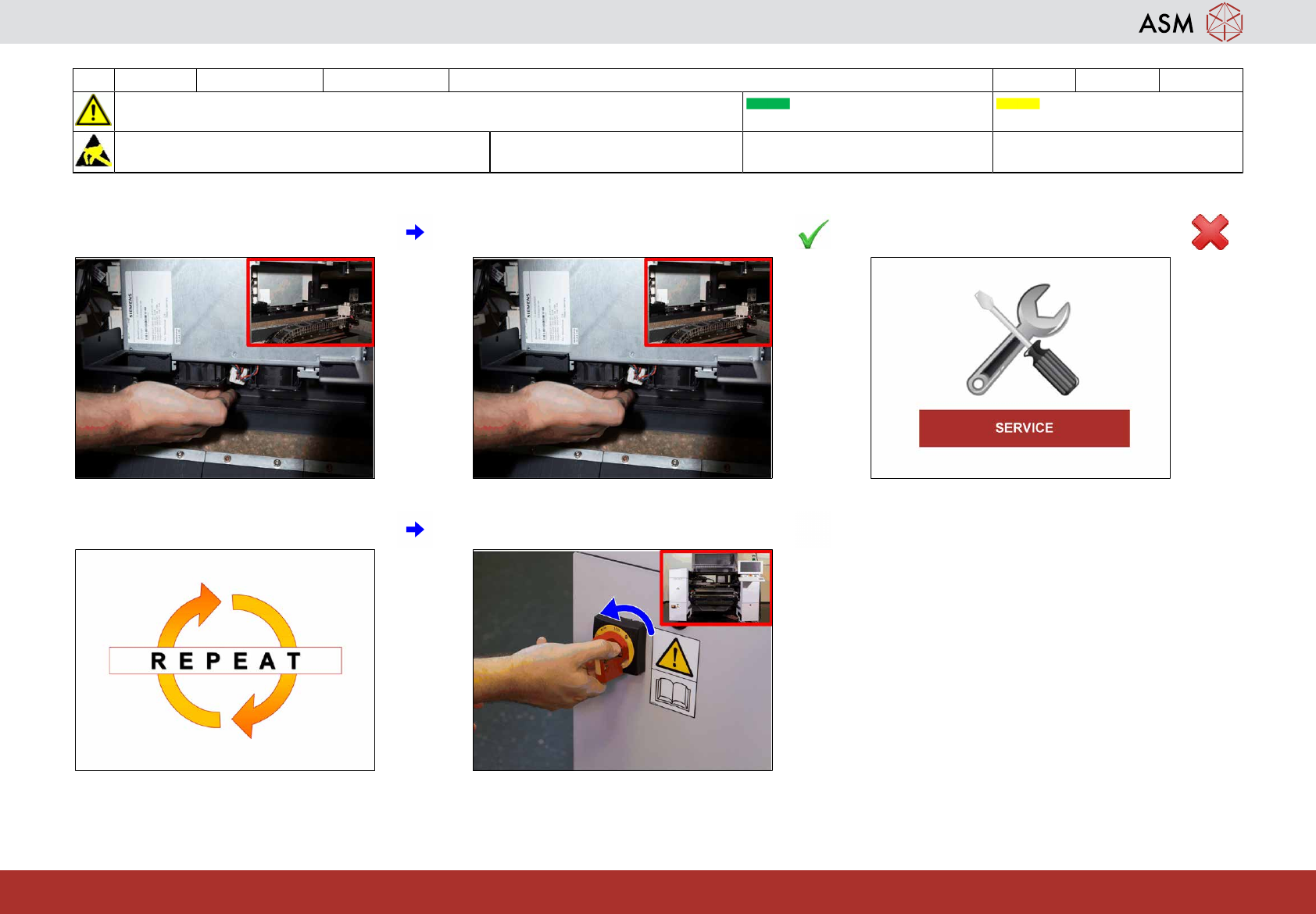

3 WF2 SX1/2 Check the fans on the GCU / MGCU and switch off the machine. 0.25 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
1 Check the fan on the GCU /MGCU. 2 If noticeable flow of air -> OK. 3 If no noticeable flow of air -> not OK.
Please contact service.
4 Repeat all steps at the other location. 5 Switch off machine.
