20 WF2 SX1/2 Appendix: TH head exchange 6.25 min 4 / 5 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e Machine Status OFF …

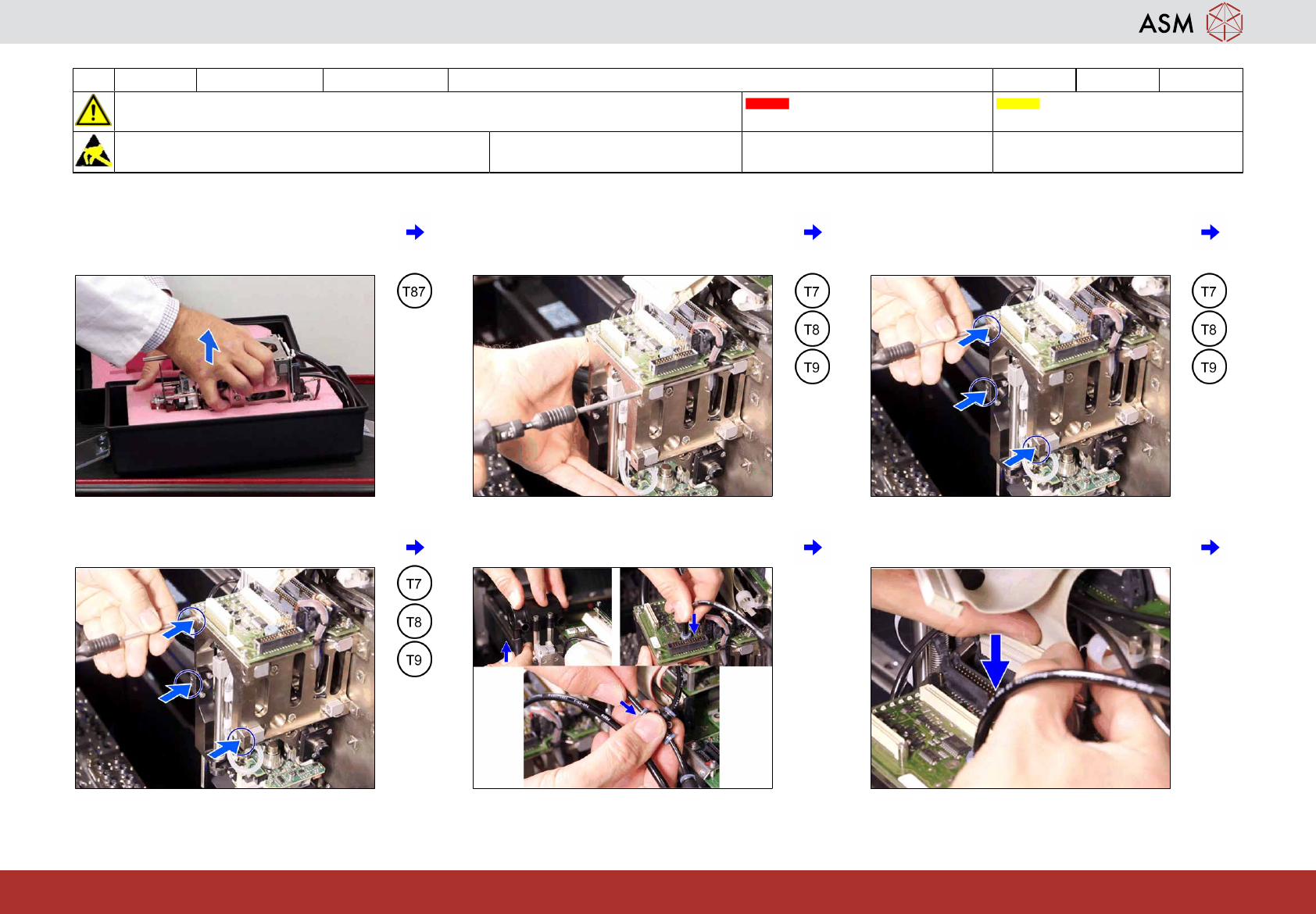

20 WF2 SX1/2 Appendix: TH head exchange 6.25 min 3 / 5
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T87, K01
Wear Part: Consumables:
www.asm-smt.com
13 Take the left head segment out of the
transport container.
14 Hold the segment firmly to the left position
of the mounting plate and secure it with 1
screw.
15 Insert the missing 3 screws to the seg-
ment and fix them slightly.
16 Fasten all screws with a torque of 2.7Nm. 17 Connect the 3 air hoses to the segment. 18 Connect the ribbon cables to the segment.
20 WF2 SX1/2 Appendix: TH head exchange 6.25 min 4 / 5
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T87, K01
Wear Part: Consumables:
www.asm-smt.com
19 Take the right head segment out of the
transport container.
20 Hold the segment firmly to the right posi-
tion of the mounting plate and secure it
with 1 screw.
21 Insert the missing 3 screws to the seg-
ment and fix them slightly.
22 Fasten all screws with a torque of 2.7Nm. 23 Connect the 3 air hoses to the segment. 24 Connect the ribbon cables to the segment.
20 WF2 SX1/2 Appendix: TH head exchange 6.25 min 5 / 5
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T87, K01
Wear Part: Consumables:
www.asm-smt.com
25 Mount the camera visual shield. 26 Proceed with task “Clean the Z-Axis of the
remaining C&P20x”.
