22 WF2 SX 1/2 - Appendix: Calibrate the TwinHead 8 min 1 / 9
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
K01
Wear Part: Consumables:
www.asm-smt.com

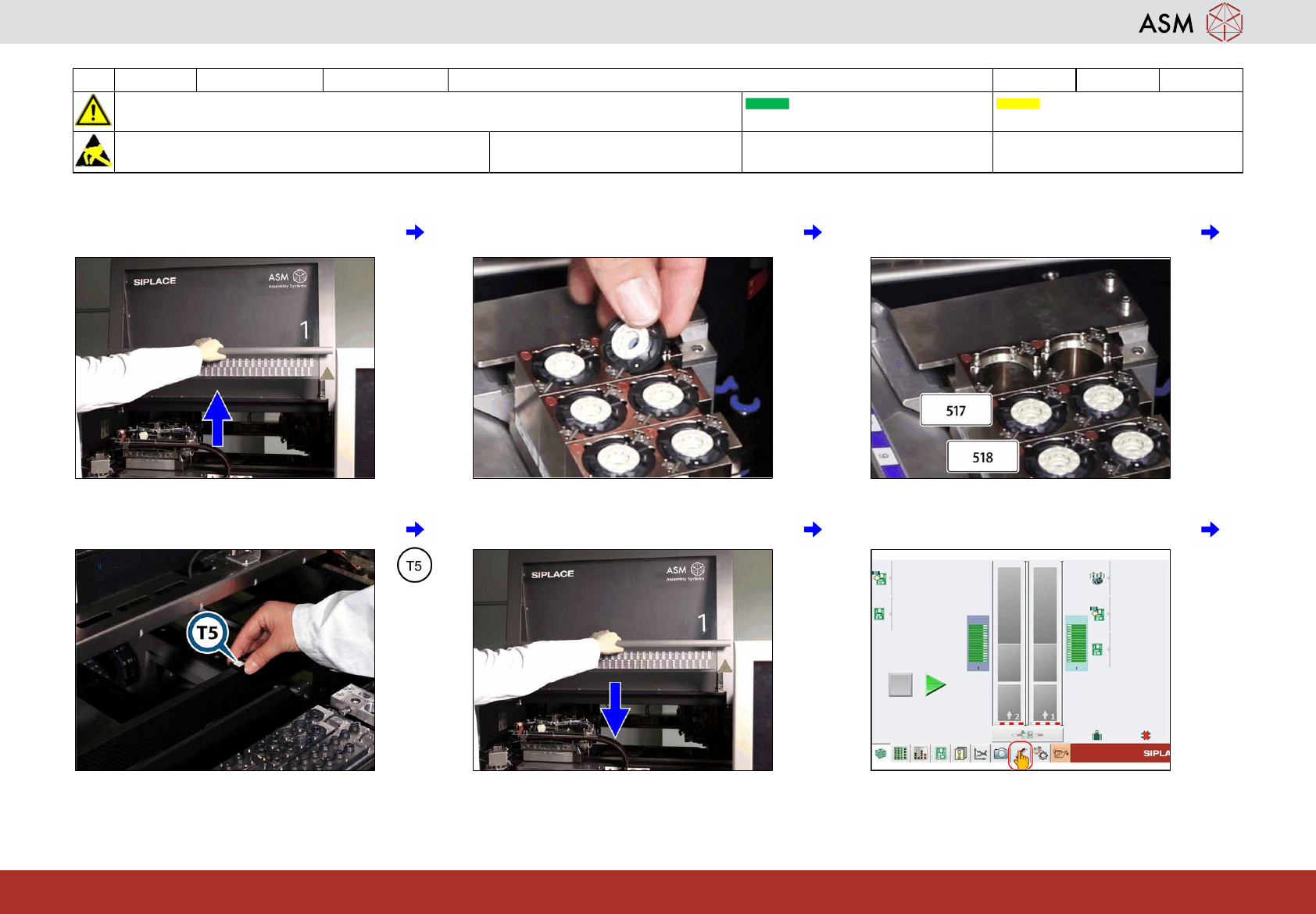

1 Open the cover. 2 Remove all nozzles from the nozzle
changer.
3 Insert nozzle type 517 into magazine 2
and nozzle type 518 into magazine 3.
4 Insert the calibration tool. 5 Close all covers. 6 Click on "Settings and options".
22 WF2 SX 1/2 - Appendix: Calibrate the TwinHead 8 min 2 / 9
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
K01
Wear Part: Consumables:
www.asm-smt.com

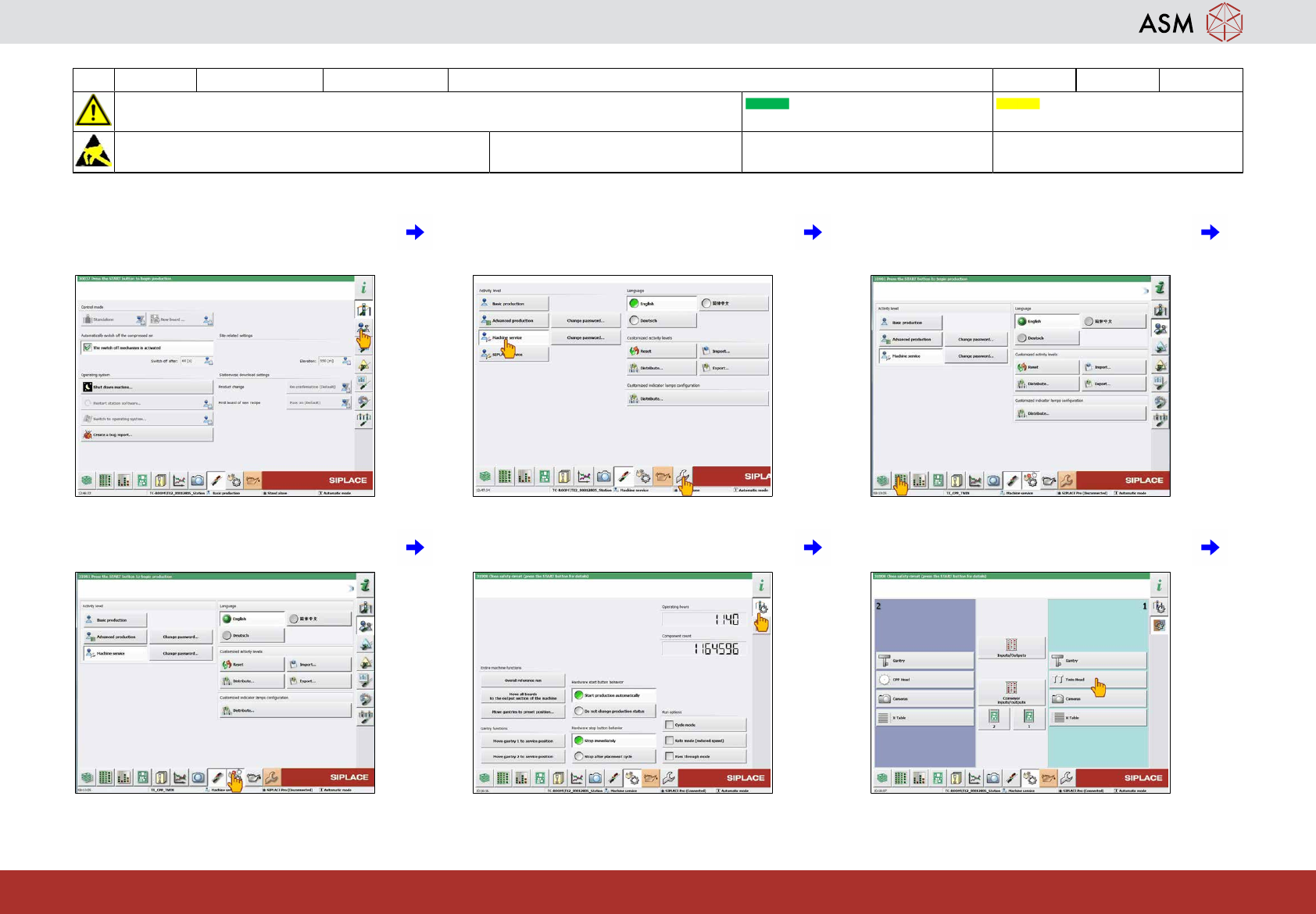

7 Click on "User settings". 8 Click on "Machine service" and "Cali-
bration".
9 If you mount the same head click on "Dis-
play, check and setup feeders" and con-
tinue with step 21.
10 If you mount a new head click on "Check
sensors and options".
11 Click on "Check sensors specific compon-
ents".
12 Select the "Twin head" returned to the
machine.
