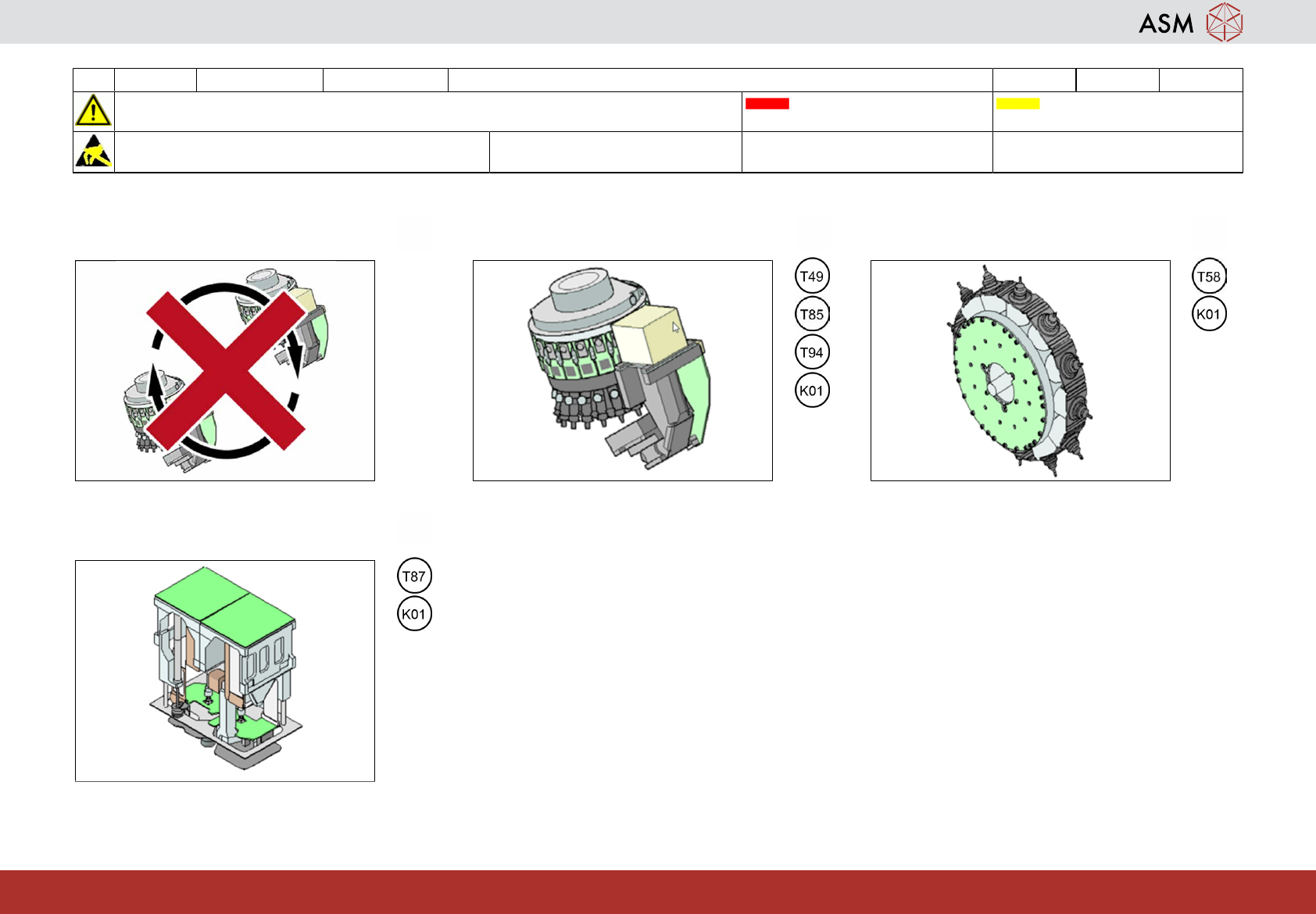

4 WF2 SX1/2 If required exchange the head to be maintained. 0.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T49, T58, T85, T87, T94, K01
Wear Part: Consumables:
www.asm-smt.com
1 If no head exchange is required proceed
with next task.
2 For C&P20x, see appendix “C&P20x head
exchange” [24]
.
3 For CPP, see appendix “CPP head ex-
change” [25]
.
4 For TH, see appendix “TH head ex-
change” [26]
.
www.asm-smt.com

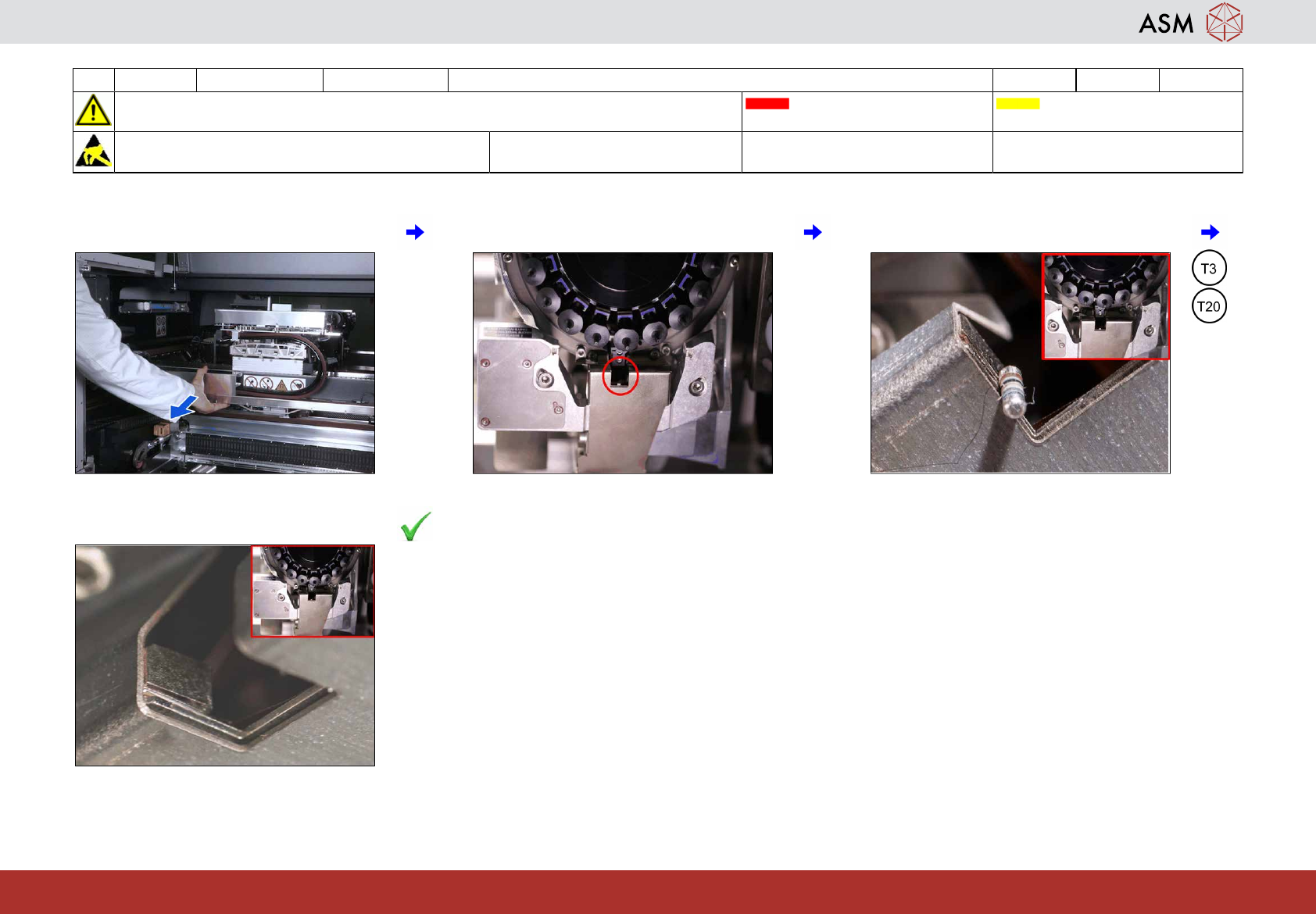

5 WF2 SX1/2 Clean the Z-Axis of the remaining C&P20x. 0.75 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T3, T20
Wear Part: Consumables:
www.asm-smt.com
1 Move all gantries to the end limit. 2 Area of the head to be cleaned. 3 Remove all components from the Z-Axis.
4 If OK -> next task.
