22 WF2 SX 1/2 - Appendix: Calibrate the TwinHead 8 min 8 / 9 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e Machine Statu…
22 WF2 SX 1/2 - Appendix: Calibrate the TwinHead 8 min 7 / 9
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
K01
Wear Part: Consumables:
www.asm-smt.com

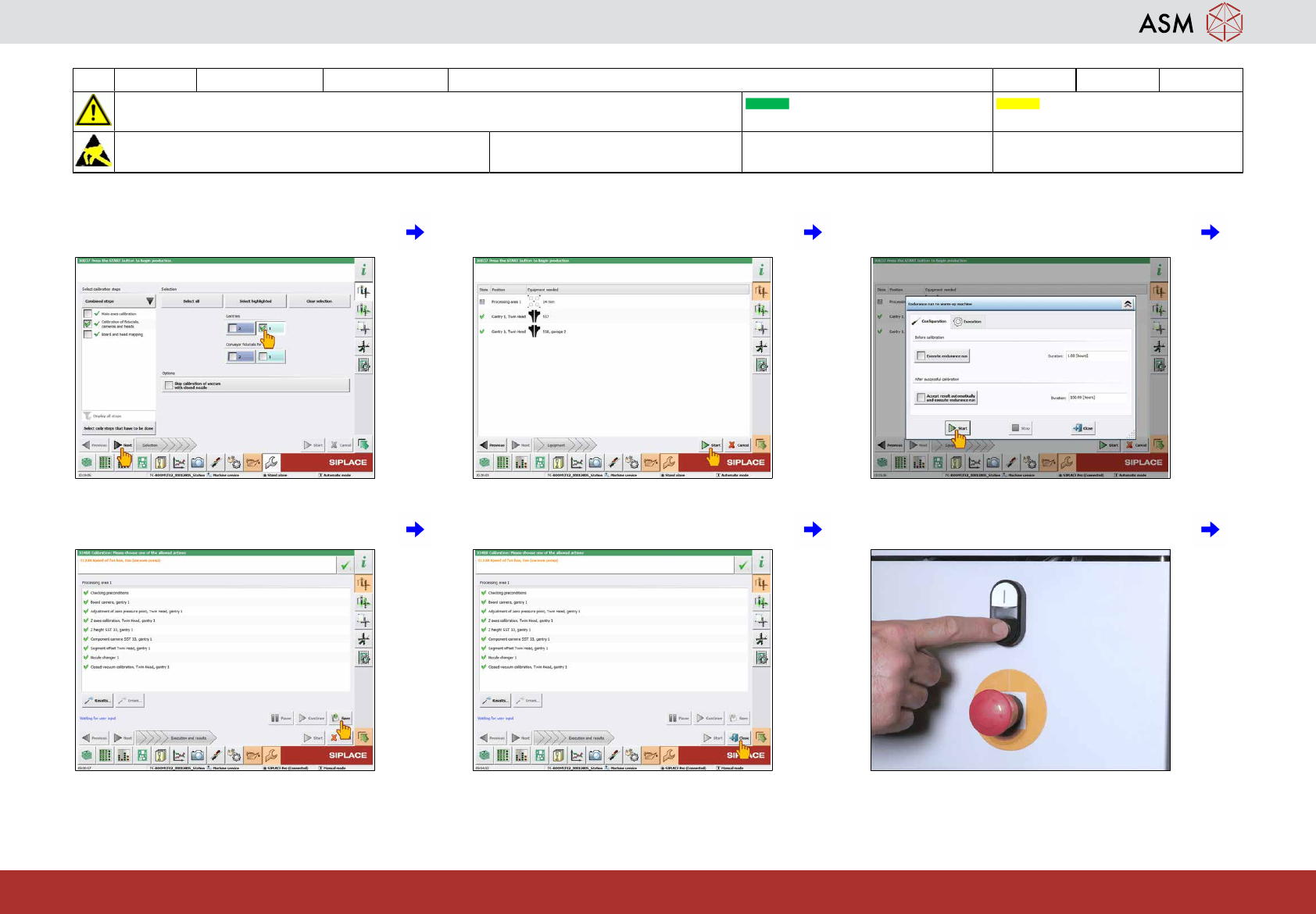

37 Select the gantry with the head to be calib-
rated and click on "Next".
38 Click on "Start ". 39 Click on "Start".
40 Click on "Save". 41 Click on "Close" to finish the calibration. 42 Press the stop button.
22 WF2 SX 1/2 - Appendix: Calibrate the TwinHead 8 min 8 / 9
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
K01
Wear Part: Consumables:
www.asm-smt.com

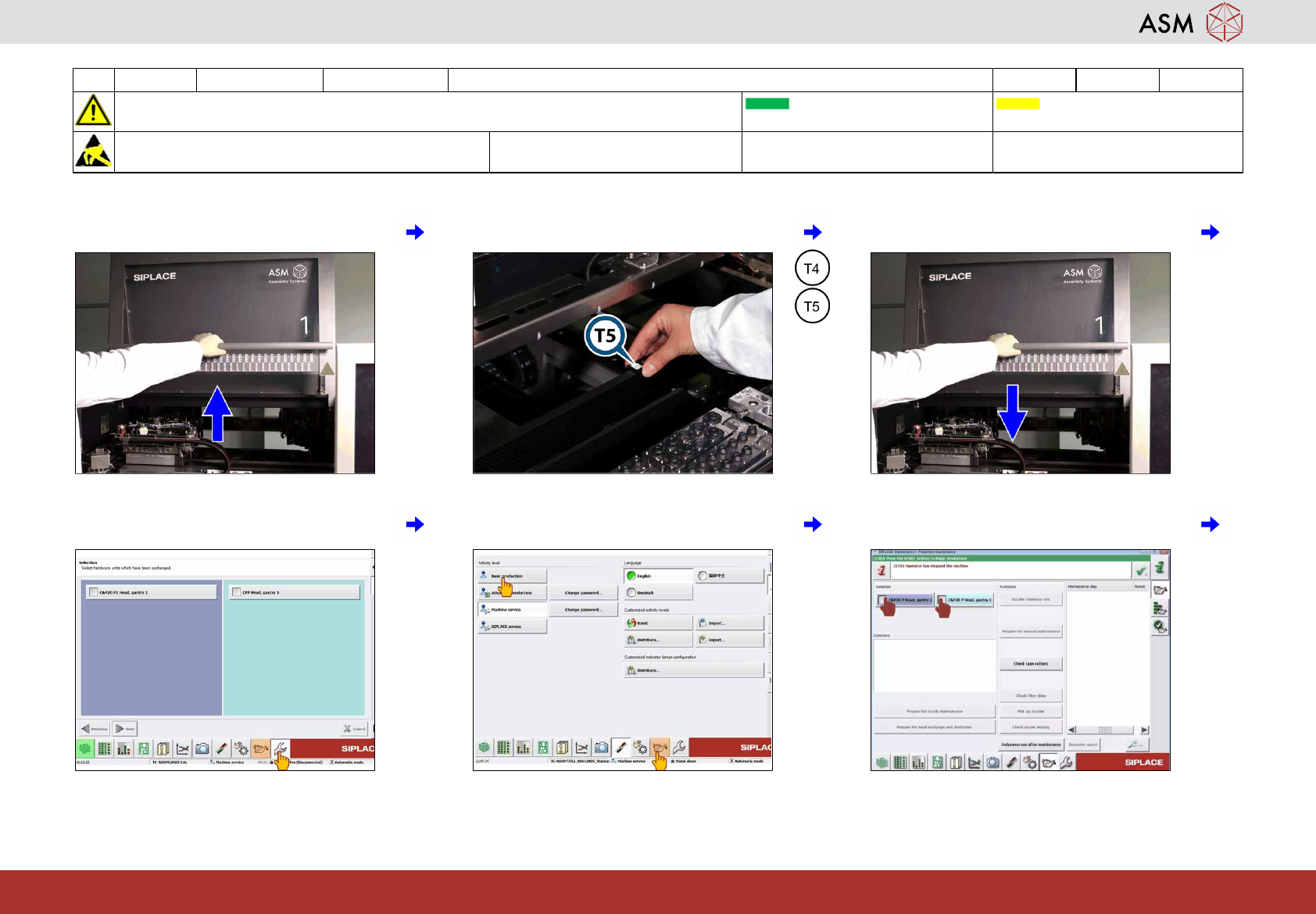

43 Open the cover. 44 Remove the calibration tool. 45 Close the cover.
46 Click on "Settings and options". 47 Click on "Basic production" and “Mainten-
ance”.
48 Select all C&P20x.
22 WF2 SX 1/2 - Appendix: Calibrate the TwinHead 8 min 9 / 9
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
K01
Wear Part: Consumables:
www.asm-smt.com
49 Proceed with task “Check the filter discs of
all C&P20x”.
