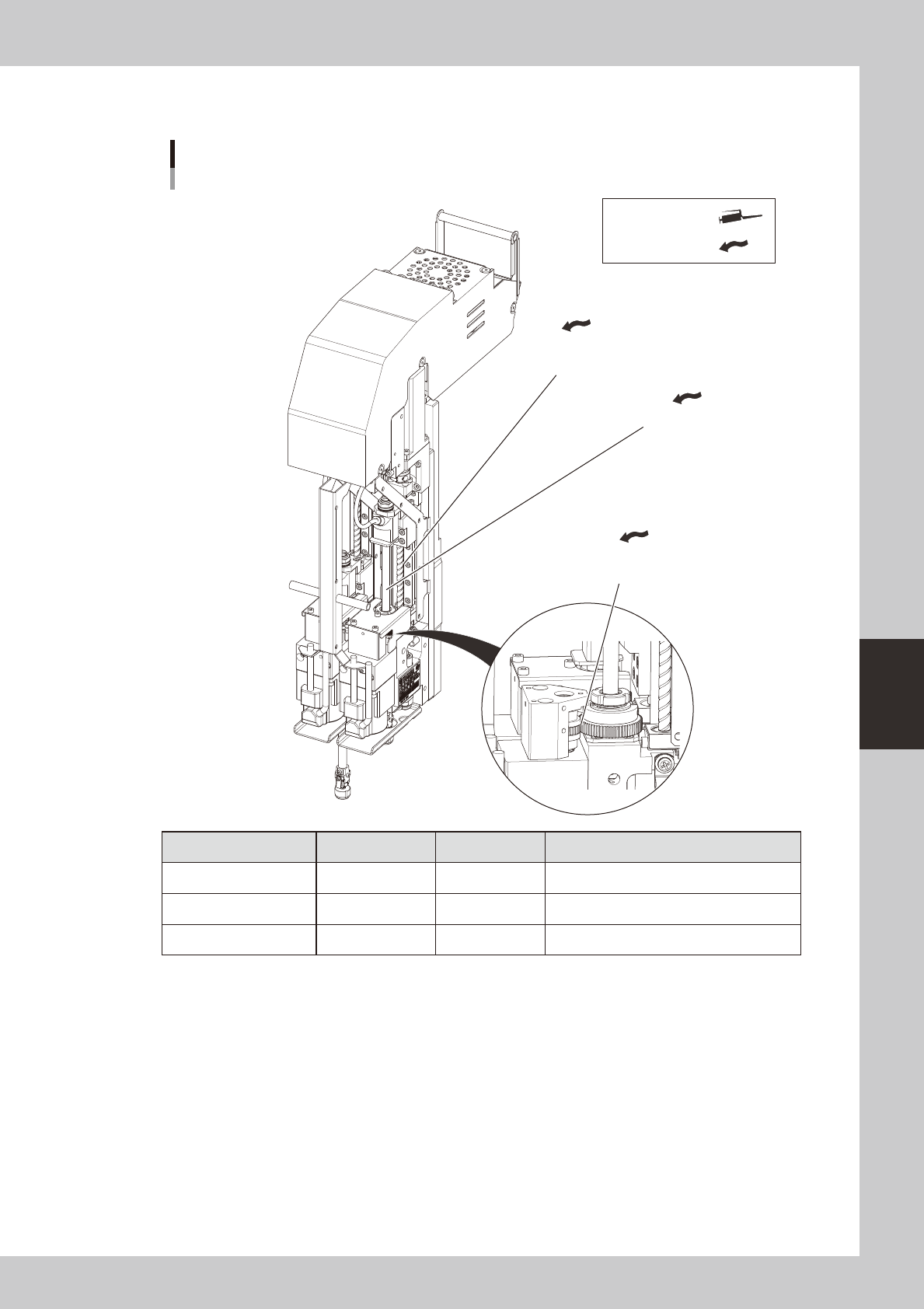

5-9 5 Lubrication points and schedule 2.5.2 FL head FL head lubrication points Spline shaft, ball screw , scissors gear Ball screw Manual lubrication Spline shaft Manual lubrication Scissors gear (In gear box) Manual lub…
5-8
5
Lubrication points and schedule
2.5 Head unit
2.5.1 HS head
HS head lubrication points
Scissors gear, main shaft, clutch, shaft nozzle
Grease gun:
Manual lubrication:
Main shaft
Manual lubrication
Shaft nozzle
Manual lubrication
Clutch
Manual lubrication
Scissors gear
Manual lubrication
Lubrication section Lubrication point Interval Procedure
Scissors gear 3 / Head Yearly Manual lubrication
Clutch 3 / Head Yearly Manual lubrication Turbine oil VG32
Main shaft 3 / Head Yearly Manual lubrication
Shaft nozzle 24 / Head Every 3 months Manual lubrication
53521-N5-10
5-9
5
Lubrication points and schedule
2.5.2 FL head
FL head lubrication points
Spline shaft, ball screw, scissors gear
Ball screw
Manual lubrication
Spline shaft
Manual lubrication
Scissors gear (In gear box)
Manual lubrication
Grease gun:
Manual lubrication:
Lubrication section Lubrication point Interval Procedure
Scissors gear 2 / Head Yearly Manual lubrication
Spline shaft 2 / Head Every 3 months Manual lubrication
Ball screw 2 / Head Every 3 months Manual lubrication
53522-N5-00
5-10
5
Lubrication points and schedule
3. Lubrication points and schedule (cATS)
3.1 AZ-axis
AZ-axis lubrication points
Ball screw & guide
AZ-axis ball screw
AZ-axis guide
Grease nipple
AZ-axis guide
Grease nipple
Grease gun:
Manual lubrication:
Lubrication section Lubrication point Interval Procedure
Ball screw 1 Monthly Manual lubrication
Guide 4 Monthly Grease gun: Bend type nozzle
53506-N5-00
