2.3 Replaceable parts
Thereplacementpartsshownhereareforpartswhichcouldcausemachinestopsiftheyfailoriftheyceaseto
functionproperlyduetotheirlifeexpiration.Nomachineadjustmentsarerequiredafterreplacingtheseparts.
Thereplacementproceduresareexplainedbelow.

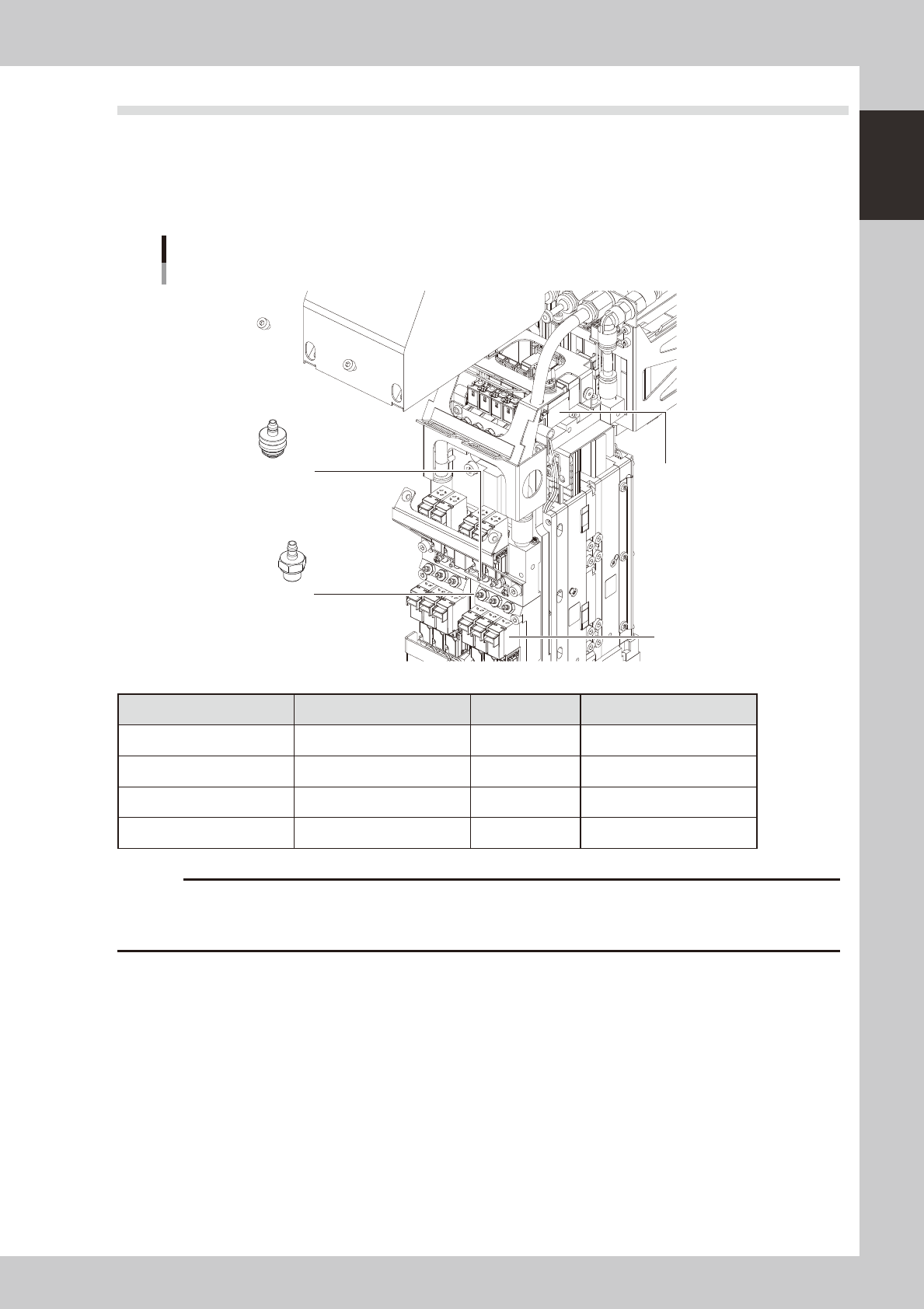

2.3.1 MU head unit
Replaceable parts
MU head (illustration shows the cover, connector, and air hose detached)
Switching valve
Blow valve
Joint
Filter-side joint
53104-N5-00
Product Name Parts List Designation Parts No. Note
Blow valve VALVE KLF-M7152-00X For MU head unit
Switching valve VALVE KLF-M7153-00X For MU head unit
Joint JOINT KLF-M7154-00X
Filter-side joint FILTER JOINT KLF-M7155-00X
c

The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was

ordering parts.
1-10
1
Maintenance

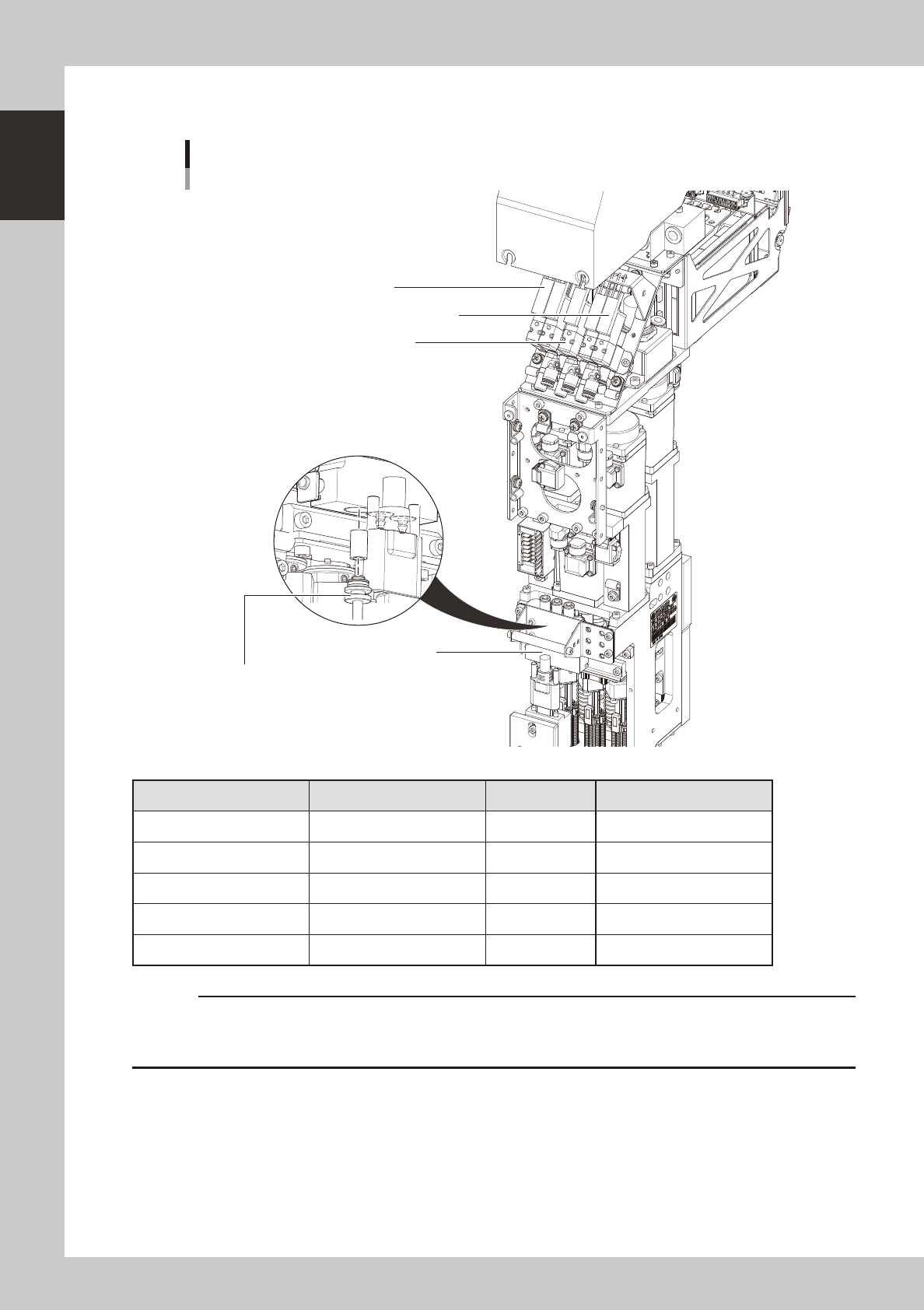

2.3.2 HS head unit
Replaceable parts
HS head (illustration shows the cover, connector, and air hose detached)
Switching valve
Ejector valves
(3 valves in the middle)
Vacuum pump master valve
Filter-side joint
Blow-pressure switching valve
53112-N5-00
Product Name Parts List Designation Parts No. Note
Switching valve VALVE, SW. UNIT ASSY KLF-M7061-A1X
Vacuum pump master valve EJECTOR, UNIT ASSY KLF-M7071-A1X
Blow pressure switching valve EJECTOR, UNIT ASSY KLF-M7071-A1X
Ejector valve EJECTOR, UNIT ASSY KLF-M7071-A1X Three valves in the middle
Filter-side joint FILTER JOINT KLF-M7155-00X
c

The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was

ordering parts.
1-11
1
Maintenance
2.3.3 FL head unit
Replaceable parts
FL head (illustration shows connector, and air hose detached)
Switching valve
Filter-side joint
53113-N5-00
Product Name Parts List Designation Parts No. Note
Switching valve VALVE KLF-M7153-00X
Filter-side joint FILTER JOINT KLF-M7155-00X
c

The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was

ordering parts.
