1-7 1 Maintenance Product Name Parts List Designation Parts No. Note Other BODY , NOZZLE 510 KLF-M87A1-00X For 510A Nozzle tip only BODY , NOZZLE 51 1 KLF-M871 1-00X For 51 1A Nozzle tip only BODY , NOZZLE 512 KLF-M8721-…
1-6
1
Maintenance
2.2.2 HS head unit
n
Consumable parts (parts supplied with machine)
Consumable parts (HS head)
Parts supplied with machine
Air filter
Nozzle leaf spring
Nozzle leaf mounting screw
Rotary head
attach/detach tool
53110-N5-20
Product Name Parts List Designation Parts No. Note
Nozzle leaf spring LEAF SPRING KG7-M7137-A0X
Nozzle leaf spring mounting screw SCREW, PAN HEAD 90990-08J016 M2 × L2.5
Air filter FILTER KLF-M7156-00X
Rotary head attach/detach tool JIG,ROTARY KLF-M88N4-00X
One tool is supplied per HS
head machine
n
Consumable parts (optional parts)
Product Name Parts List Designation Parts No. Note
Standard 50X
Group nozzles
NOZZLE, 500A / 510A ASSY. KLF-M87A0-A0X 0402 dedicated
NOZZLE, 501A ASSY. KLF-M7710-A0X 0603, 1005
NOZZLE, 502A ASSY. KLF-M7720-A0X 1608, 2012, 3216
Narrow-pitch 51X
Group nozzles
NOZZLE, 500A / 510A ASSY KLF-M87A0-A0X 0402 dedicated
NOZZLE, 511A ASSY. KLF-M8710-A0X 0603 dedicated
NOZZLE, 512A ASSY. KLF-M8720-A0X 1005, 1608
NOZZLE, 513A ASSY. KLF-M8730-A0X 2012, 3216, 3225
1-7
1
Maintenance
Product Name Parts List Designation Parts No. Note
Other
BODY, NOZZLE 510 KLF-M87A1-00X For 510A Nozzle tip only
BODY, NOZZLE 511 KLF-M8711-00X For 511A Nozzle tip only
BODY, NOZZLE 512 KLF-M8721-00X For 512A Nozzle tip only
BODY, NOZZLE 513 KLF-M8731-00X For 513A Nozzle tip only
BODY, NOZZLE 501 KLF-M7711-01X For 501A Nozzle tip only
BODY, NOZZLE 502 KLF-M7721-00X For 502A Nozzle tip only
c
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
ordering parts.
1-8
1
Maintenance

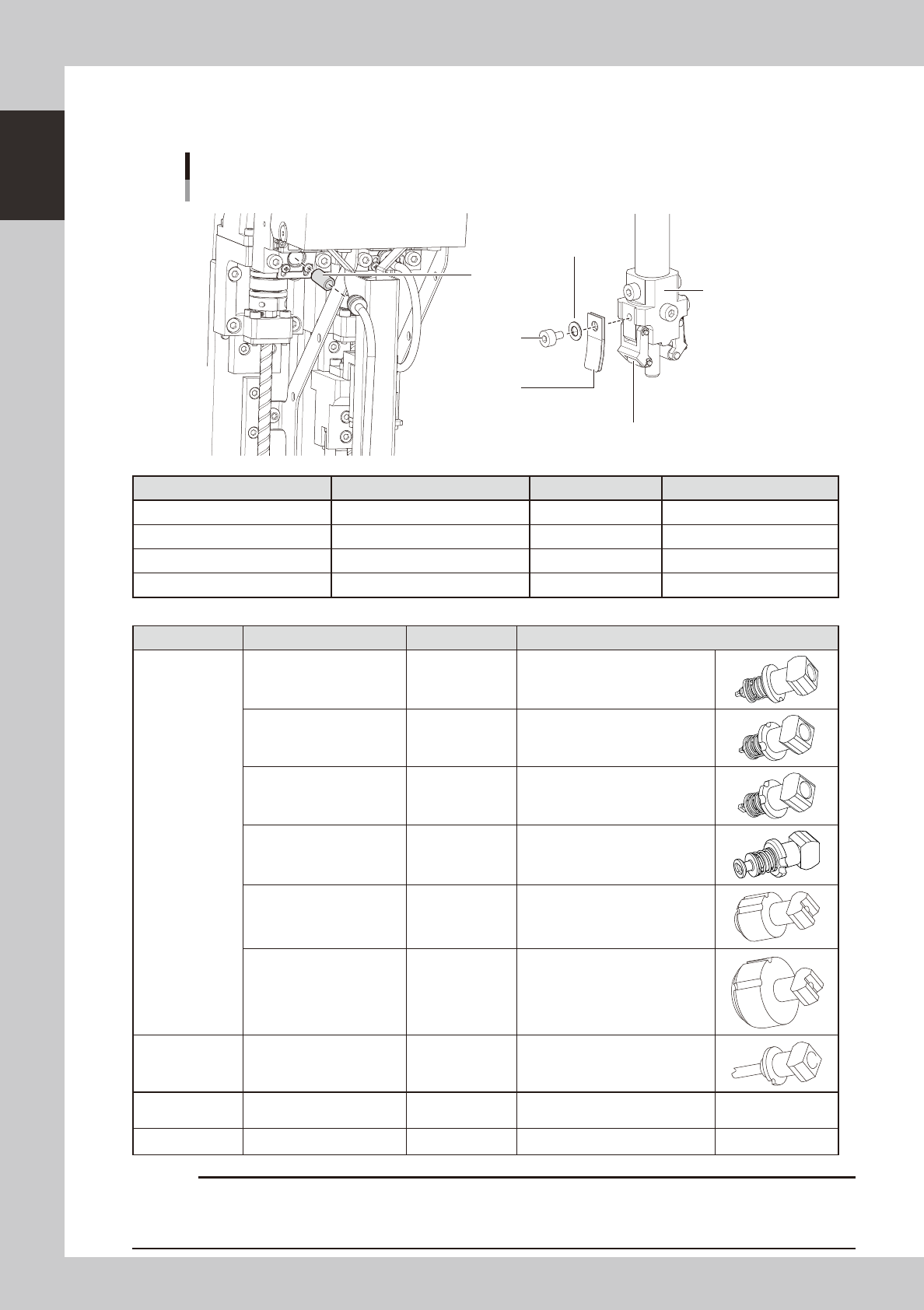

2.2.3 FL head unit
n
Consumable parts (parts supplied with machine)
Consumable parts (FL head)
Parts supplied with machine
Air filter
Nozzle leaf spring
Roller
Washer
Roller lock assembly
Nozzle leaf
mounting screw
53111-N5-00
Product Name Parts List Designation Parts No. Note
Nozzle leaf spring PLATE, SPRING KV7-M8171-00X
Nozzle leaf spring mounting screw BOLT HEX, SOCKETHEAD 90115-20J004
Washer WASHER, PLAIN 90990-28J002
Air filter FILTER KLF-M7156-00X
n
Consumable parts (optional parts)
Product Name Parts List Designation Parts No. Note
Standard 60X
Group nozzles
NOZZLE, 600A ASSY KLS-M77A0-A0X 0402 dedicated
NOZZLE, 601A ASSY. KLS-M7710-A0X 0603 to 1005 size components
NOZZLE, 602A ASSY. KLS-M7720-A0X 1608 to 3216 size components
NOZZLE, 603A ASSY. KLS-M7730-A0X SOP, etc.
NOZZLE, 64A/604A ASSY. KV7-M7740-A0X
QFP, etc.
(32mm sq. or smaller components)
NOZZLE, 65A/605A ASSY. KV7-M7750-A0X
Large components
(
32mm sq. to 45×100mm components
)
Non-standard
60X Group
nozzles
NOZZLE, 66A/606A ASSY. KV7-M7760-00X
Cylindrical components
(with V-notch)
Roller lock
assembly
LOLLER LOCK ASSY. KLF-M74A0-01X Nozzle holder (including roller) With O-ring
Roller ROLLER KV7-M81D4-00X Nozzle mount Replace as a pair.
c
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
ordering parts.
