Installation Manual for Windows XP (manual setup) Edition 04/2006
Fig. 2-6: Windows XP: Personalize Your Software
→ Please enter the Name and the Organization.
→ Click the button Next>.
The dialog "Your Product Key" appears.

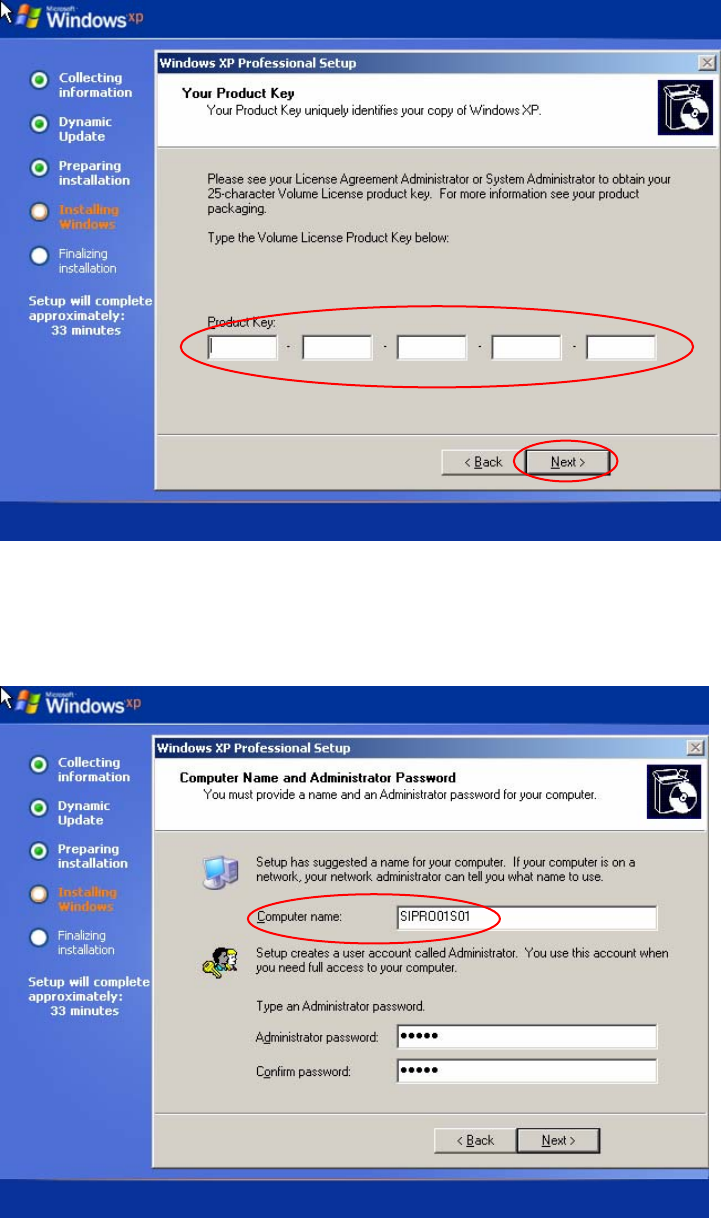

Fig. 2-7: Windows XP: Product Key
→ Enter the software key.
→ Click the button Next>.
The following dialog appears:
9 / 37
Installation Manual for Windows XP (manual setup) Edition 04/2006
10 / 37
Fig. 2-8: Windows XP: Computer Name and Password
→ Enter the Computer name and the Administrator password.
→ Click the button Next>.

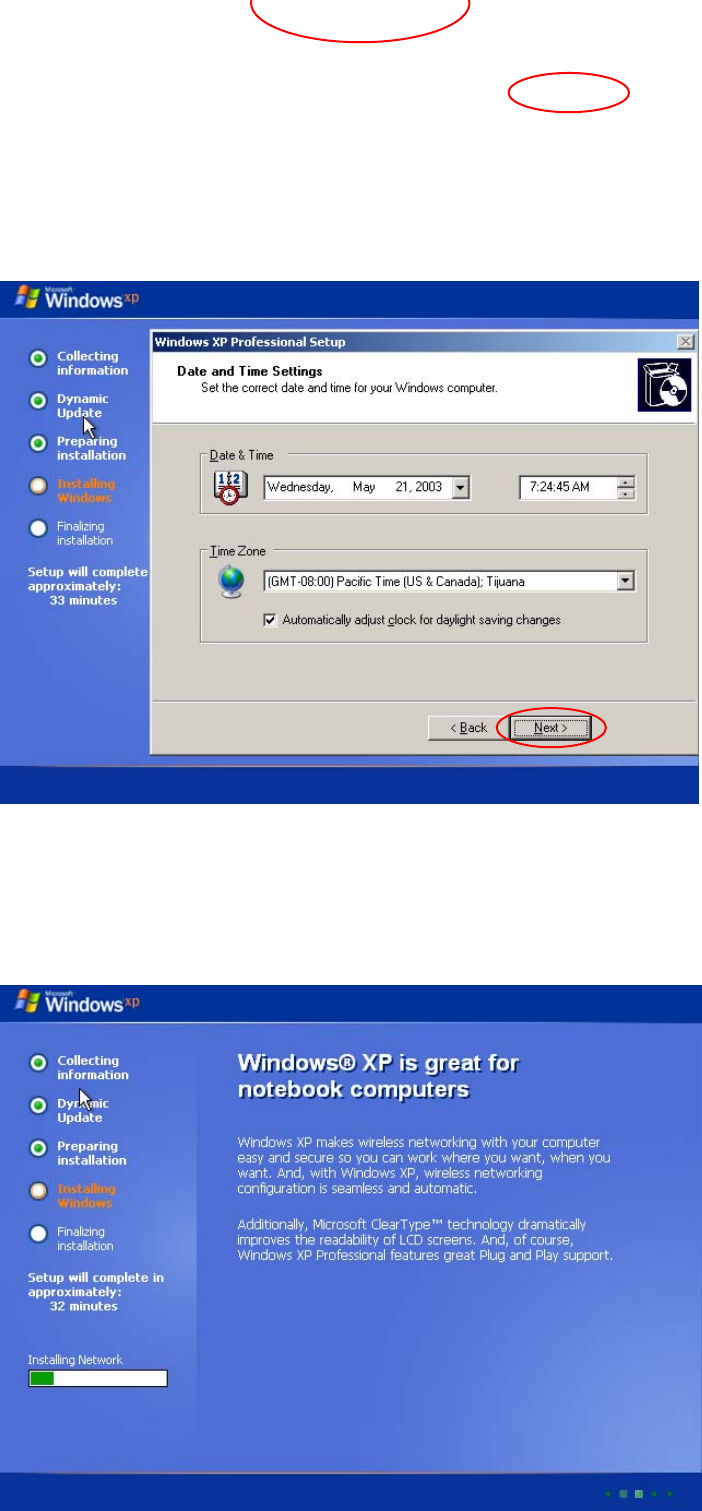

Fig. 2-9: Windows XP: Computer Name and Password
→ Check the Date & Time and the Time Zone.
→ If necessary change the settings.
→ Click the button Next>.
The following dialog appears:
Fig. 2-10: Windows XP: Wait
→ Wait until installation has copied necessary files and the following dialog appears.
Installation Manual for Windows XP (manual setup) Edition 04/2006

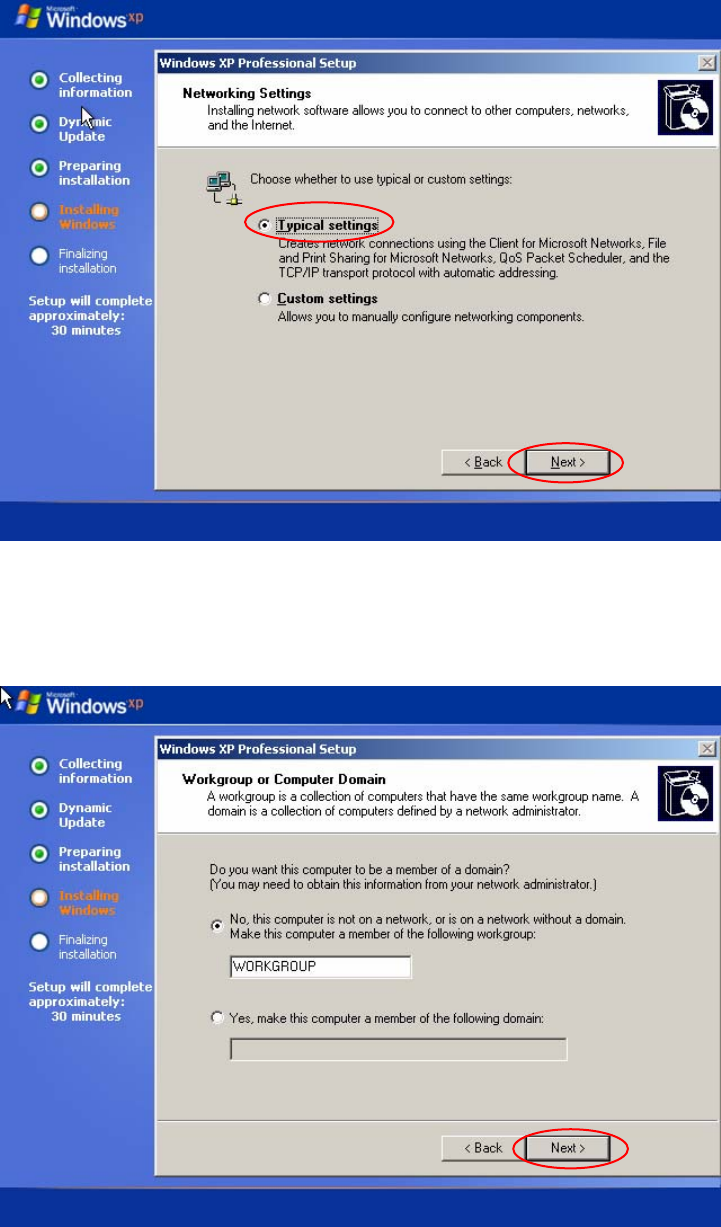

Fig. 2-11: Windows XP: Networking Settings
→ Choose "Typical Settings"
→ Click the button Next>.
The following dialog appears:
Fig. 2-12: Windows XP: Workgroup or Computer Domain
→ Accept the settings (the setting for the domain follows later: see current documentation
"Integration to the customer domain", Item no.: 00193761-xx).
→ Click the button Next>.
11 / 37
