Installation Manual for Windows XP (manual setup) Edition 04/2006 Fig. 2-11: Windows XP: Networking Settings → Choose "Typical Settings" → Click the button Ne xt> . The following dialog appea rs: Fig. 2-12: …
Installation Manual for Windows XP (manual setup) Edition 04/2006
10 / 37
Fig. 2-8: Windows XP: Computer Name and Password
→ Enter the Computer name and the Administrator password.
→ Click the button Next>.
Fig. 2-9: Windows XP: Computer Name and Password
→ Check the Date & Time and the Time Zone.
→ If necessary change the settings.
→ Click the button Next>.
The following dialog appears:
Fig. 2-10: Windows XP: Wait
→ Wait until installation has copied necessary files and the following dialog appears.
Installation Manual for Windows XP (manual setup) Edition 04/2006
Fig. 2-11: Windows XP: Networking Settings
→ Choose "Typical Settings"
→ Click the button Next>.
The following dialog appears:
Fig. 2-12: Windows XP: Workgroup or Computer Domain
→ Accept the settings (the setting for the domain follows later: see current documentation
"Integration to the customer domain", Item no.: 00193761-xx).
→ Click the button Next>.
11 / 37
Installation Manual for Windows XP (manual setup) Edition 04/2006
The following dialog appears:

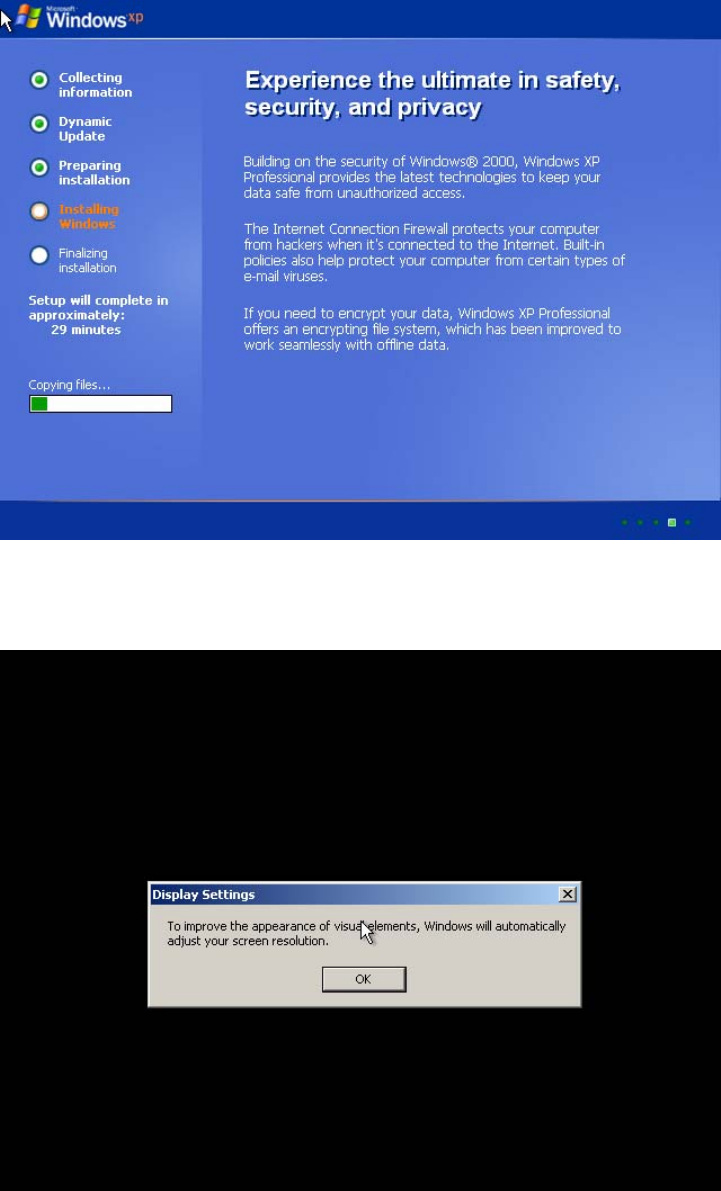

Fig. 2-13: Windows XP: Wait
→ Wait until installation has copied all files. This might take approximately 30 minutes.
Windows XP wants to adjust screen configuration automatically.
Fig. 2-14: Windows XP: Adjust your Screen
→ Click the button OK.
Windows XP is searching for a feasible screen resolution and configuration. You have some seconds
to accept the new found configuration, otherwise the system will use the old configuration.
12 / 37
