Installation Manual for Windows XP (manual setup) Edition 04/2006
Fig. 2-23: License agreement
→ To accept the license agreement, activate the radio button I Agree and press Next>.
The following dialog appears:
Fig. 2-24: Creating a directory for backup of system files for uninstallation
→ Press the Browse button to select the path for the backup of system files.
22 / 37
Installation Manual for Windows XP (manual setup) Edition 04/2006
→ Confirm the selection by pressing the Next> button.
The available space is checked on the dialog then follows:
Fig. 2-25: Automatic test of the available space on the hard disk
→ 1 GB of space is needed for unpacking the temporary files.
If the available space is not sufficient, a message appears.
→ Otherwise the dialogs of the automatic installation appear (the following one, for example) in this
case no more activities are necessary on your part.
This automatic installation process takes approximately 45 minutes (according to test installation).
→ After the installation, the following dialog for the finish of the setup appears:
23 / 37
Installation Manual for Windows XP (manual setup) Edition 04/2006

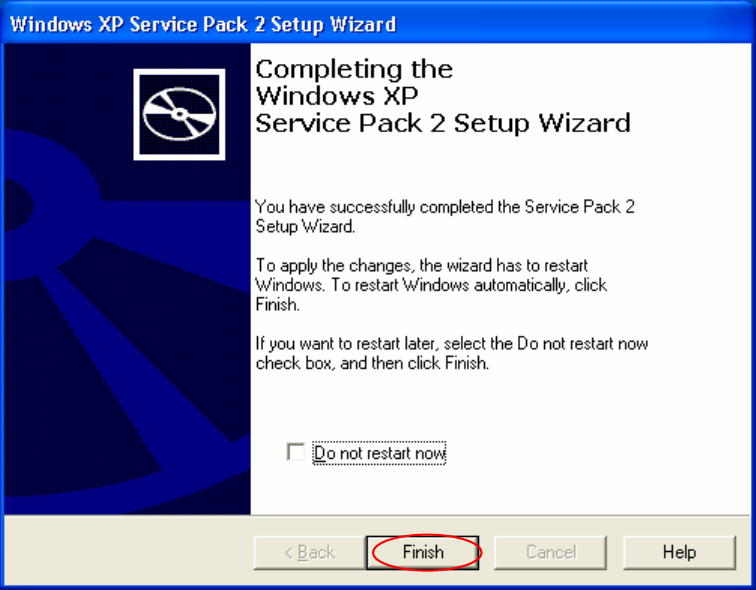

Fig. 2-26: Finishing Windows XP SP 2
→ Leave the presetting as is (NO check mark at "Do not restart now").
→ Click the button Finish.
The computer will be restarted.
→ The screen "Protect the Computer" (not shown here) with the following options appears:
• Protect the computer by activating automatic updates now.
• No, not yet
→ Select: NO, not yet
(a check appears in the red security shield)
→ Automatic Updates should not be activated, as updates should be conducted in coordination with
the SIPLACE software that is used.
→ Press the Next> button (bottom, right) to close the screen "Protect the Computer“.
This is followed by the display of the security center:
