Daily maintenance items
2. Checking the nozzle leaf springs
If nozzle leaf springs cannot hold a nozzle securely, this adversely affects pickup, recognition and mounting
operations. Periodically check the leaf springs for nozzle holding status.
n
Leaf spring inspection points
Check the following points by removing the nozzle and reattaching it to the nozzle holder.
• The leaf spring has enough gripping force.
• There is no gap between the leaf springs and the nozzle.
• The leaf spring is not warped or deformed.
• The gripping part of the leaf spring is not frayed.

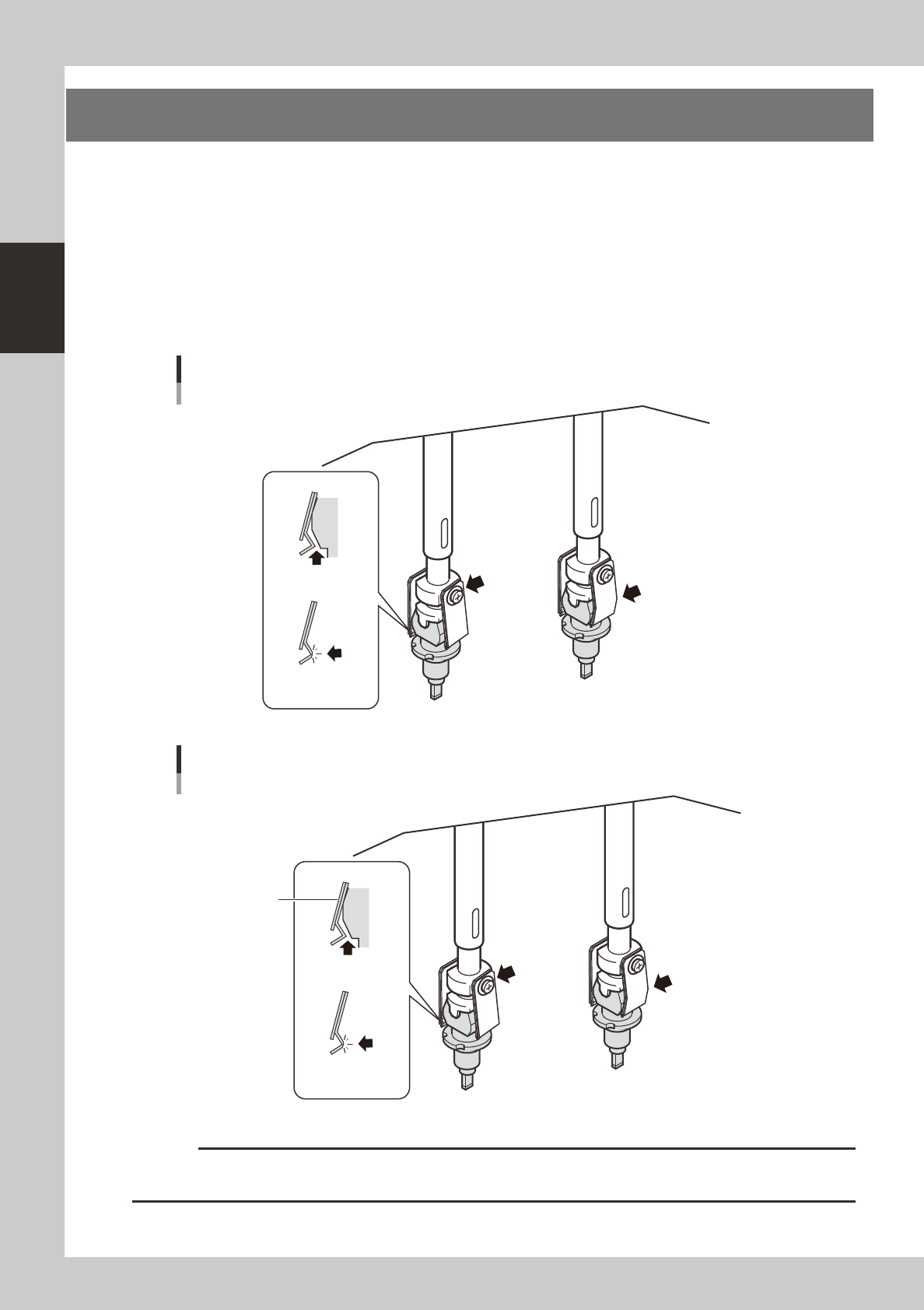

Checking the leaf spring condition
Standard head (head 2, 4, 6, 8)
There should be
no gap.
Leaf spring should
not be frayed.
Screw should
be tightened.
Leaf spring should not be
warped or deformed.
53203-F9-00
Added plate spring
(for increasing spring
force)
Checking the leaf spring condition
Precision heads (head 1, 3, 5, 7)
There should be
no gap.
Leaf spring should
not be frayed.
Screw should
be tightened.
Leaf spring should not be
warped or deformed.
53210-F9-00
c
CAUTION
If any of the above points is found to be a problem, remove the nozzle and replace the leaf springs as a pair, by
referring section 1, "Nozzle leaf springs" in Chapter 4.
2-5
2
Daily maintenance items
3. Checking the nozzle spring action

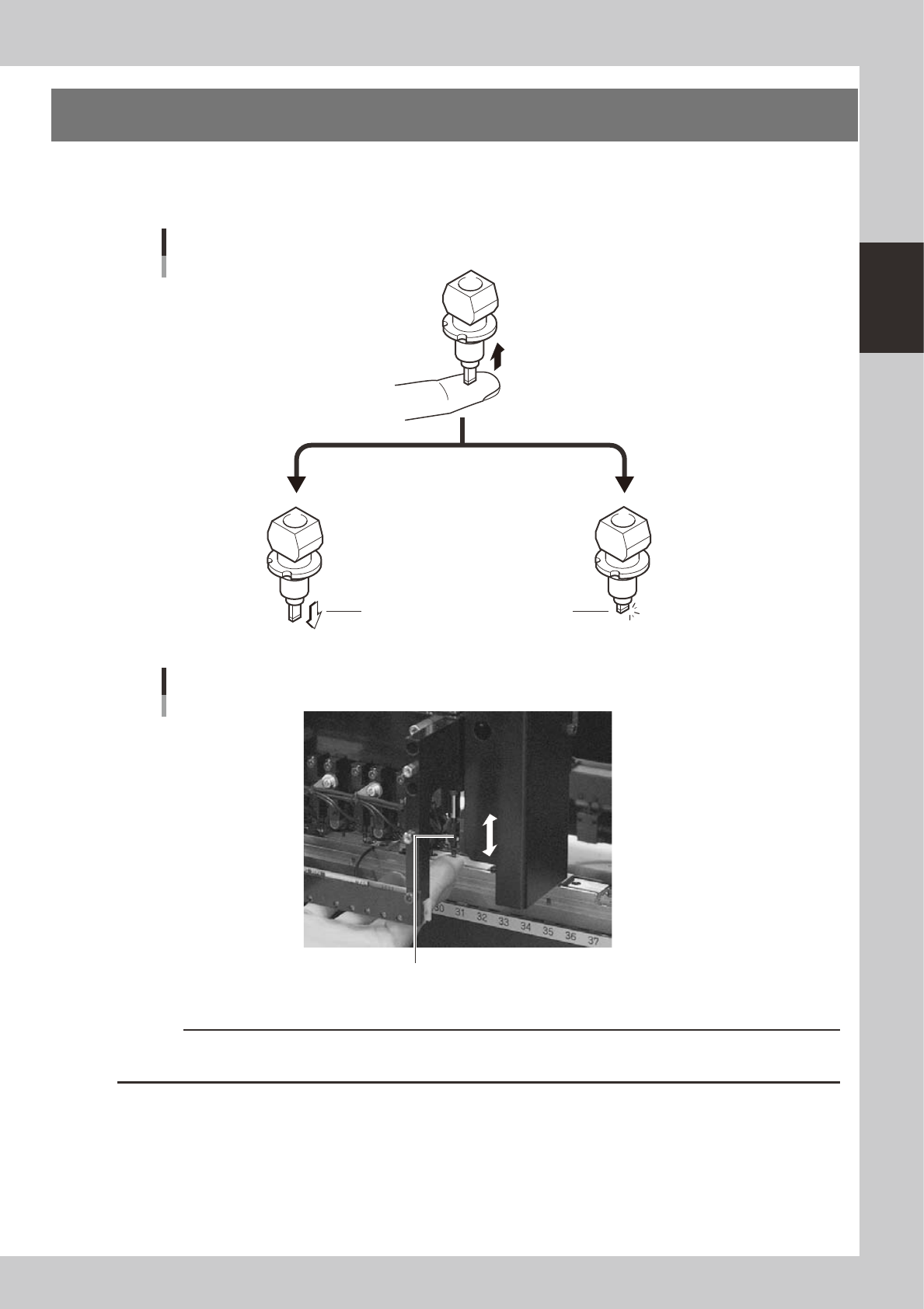

Check the spring action of the nozzles and nozzle holders. Press on a nozzle or nozzle holder and if it
returns normally there is no problem. However, if the return action is poor (sluggish) then pickup errors and
recognition errors will occur.
Press on the nozzle tip with your hand.
Returns to original
position
Returns sluggishly
or does not return.
Checking the nozzle spring action
OK No good
53204-F9-00
Checking the nozzle holder spring action
Nozzle holder
53205-F9-00
c
CAUTION
Remove the nozzle when checking the nozzle holder spring action. When the check shows that nozzle holder spring
action is poor, lubricate the nozzle by referring to section 2.1, "Cleaning and lubricating a nozzle holder" in Chapter 3.
2-6
2
Daily maintenance items

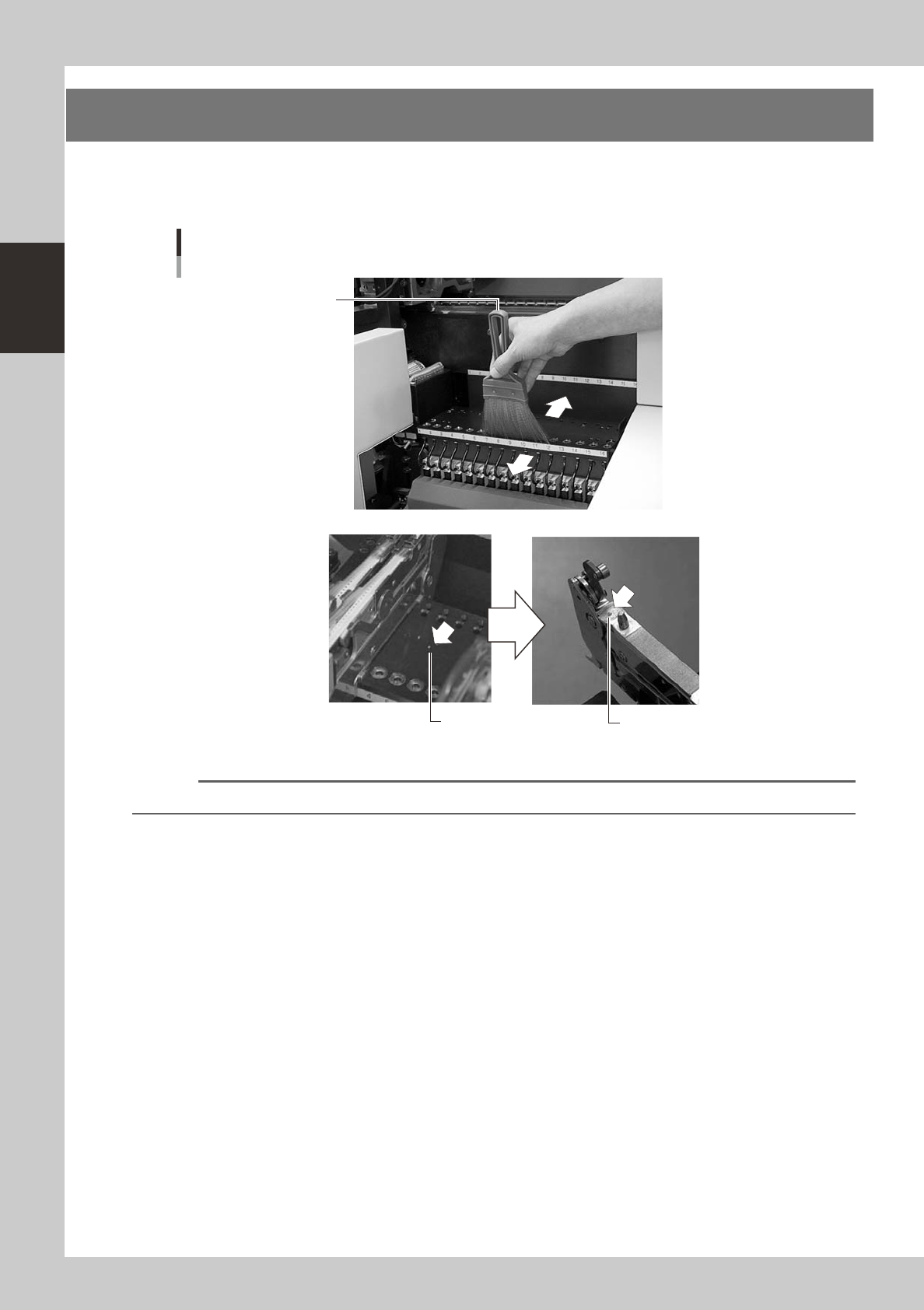

4. Cleaning the feeder plate
Clean the feeder plate by using the brush supplied with the machine. Chips or foreign matter falling on
the feeder plate might bite into the surface during feeder setting and cause the pickup position to deviate.
Periodic inspection and cleaning are recommended to prevent this problem.
Chips
Chips adhering to the bottom
of a tape feeder
Cleaning brush
Cleaning the feeder plate
53206-F9-00
Reference
You can clean chips and debris on the feeder plate while dropping them into the holes in the rear of the feeder plate.
