PC200
PVA
Revision G (2019)
35 of 56
PC200R-SS Bill of Materials
ITEM
DESCRIPTION
Part #
QTY.
*
Assembly Drawing
112-2643
Ref
1.
Air Cylinder
114-3794
1
2.
Cylinder Cap
114-3795
1
3.
Separation Block
114-8205
1
4.
Piston
114-3797
1
5.
Rod
114-8213
2
6.
Seal Plate
114-8206
1
7.
Standard: Fluid Body, Stainless Steel
114-8207
1
*
Option (RCA|RCB): Fluid Body, Recirculation Ports, SS
(114-9816)
1
8.
Standard (1): Manifold, 1:1, Stainless Steel
114-4482
1
*
Option (2): Manifold, Wide Ratio, SS
(114-3801)
1
*
Option (3): Manifold, Wide Ratio, SS (Reverse A/B)
(214-3830)
1
*
Option (4): Manifold, 3-Port, SS
(114-9495)
1
*
Option (5): Manifold, 3-Port, SS (Reverse A/B)
(214-3745)
1
*
Option (6): Manifold, Bayonet Style, SS
(114-5810)
1
9.
Nut, Retaining
214-3833
1
10.
Bolt, Shoulder, #10-24 x 1.00”
01473
2
11.
Bearing, Sintered Sleeve, .188 x .375 x .250” Long
01502
2
12.
Set Screw, 3/8”-24 x 1”
01426
1
13.
Washer, Sealing, 3/8”
01427
1
14.
Nut, Jam – 3/8”-24
01428
1
15.
Standard (U): Seal, Loaded Lip, Urethane
12500187
4
*
Option (T): Seal, Loaded Lip, PTFE
Contact PVA
4
16.
O-Ring, 030 Buna
VLV-030B
1
17.
O-Ring, 123 Buna
VLV-123B
1
18.
O-Ring, 108 Buna
VLV-108B
2
19.
O-Ring, 016 Viton
VLV-016V
6
20.
Fastener, #6-32 x .375” SHCS, Stainless Steel
SHSS6-32X.375
2
21.
Fastener, #10-32 x .625” SHCS, Stainless Steel
SHSS10-32X.625
4
22.
Fastener, #10-32 x 1.50” SHCS, stainless steel
SHSS10-32X1.5
4
23.
Air fitting, #10-32 x ¼” tube elbow
KQ2L07-32A
1
24.
Air fitting, #10-32 x ¼” tube elbow w/ speed control
AS1201F-U10/32-07
1
25.
Bleed Screw
214-5367
2
26.
Washer, Nylon
214-5368
2
*PVA BOM B12-1950
PC200
PVA
Revision G (2019)
36 of 56
PC200R-AL Bill of Materials
ITEM
DESCRIPTION
PART #
QTY.
*
Assembly Drawing
112-2643
Ref
1
Air Cylinder
114-3794
1
2
Cylinder Cap
114-3795
1
3
Separation Block
114-8205
1
4
Piston
114-3797
1
5
Rod
114-8213
2
6
Seal Plate
114-8206
1
7
Fluid Body, Aluminum
114-8207-AL
1
8
Standard (1): Manifold, 1:1, Stainless Steel
114-4482
1
*
Option (2): Manifold, Wide Ratio, SS
(114-3801)
1
*
Option (3): Manifold, Wide Ratio, SS (Reverse A/B)
(214-3830)
1
*
Option (4): Manifold, 3-Port, SS
(114-9495)
1
*
Option (5): Manifold, 3-Port, SS (Reverse A/B)
(214-3745)
1
*
Option (6): Manifold, Bayonet Style, SS
(114-5810)
1
9
Nut, Retaining
214-3833
1
10
Bolt, Shoulder, #10-24 x 1.00”
01473
2
11
Bearing, Sintered Sleeve, .188 x .375 x .250” Long
01502
2
12
Set Screw, 3/8”-24 x 1”
01426
1
13
Washer, Sealing, 3/8”
01427
1
14
Nut, Jam – 3/8”-24
01428
1
15
Seal, Loaded Lip, Urethane
12500187
4
16
O-Ring, 030 Buna
VLV-030B
1
17
O-Ring, 123 Buna
VLV-123B
1
18
O-Ring, 108 Buna
VLV-108B
2
19
O-Ring, 016 Viton
VLV-016V
6
20
Fastener, #6-32 x .375” SHCS, Stainless Steel
SHSS6-32X.375
2
21
Fastener, #10-32 x .625” SHCS, Stainless Steel
SHSS10-32X.625
4
22
Fastener, #10-32 x 1.50” SHCS, stainless steel
SHSS10-32X1.5
4
23
Air fitting, #10-32 x ¼” tube elbow
KQ2L07-32A
1
24
Air fitting, #10-32 x ¼” tube elbow w/ speed control
AS1201F-U10/32-07
1
25
Bleed Screw
214-5367
2
26
Washer, Nylon
214-5368
2
*PVA BOM B12-2147
PC200
PVA
Revision G (2019)
37 of 56

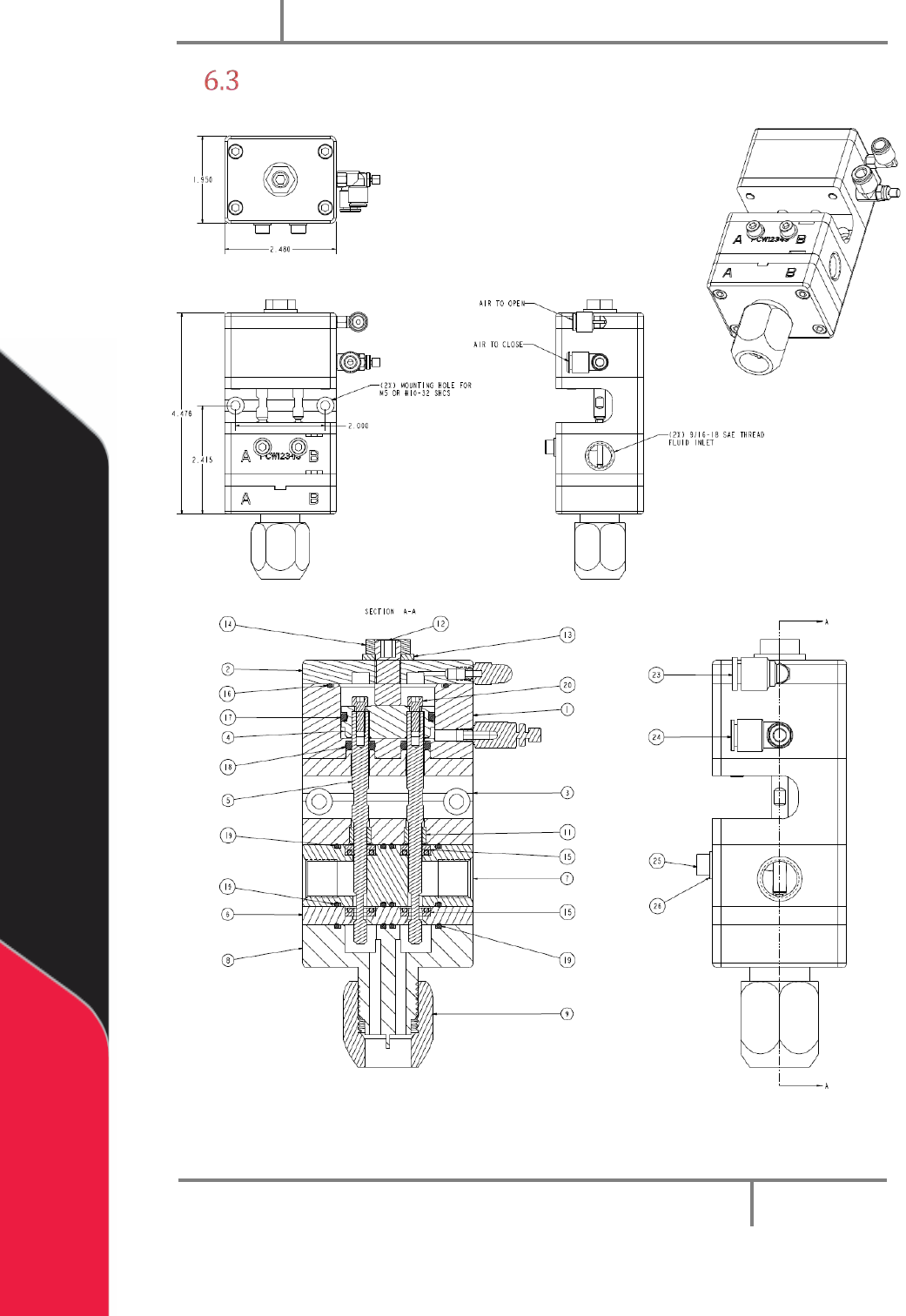

PC200R Series Mechanical Drawings
Figure 59: Mechanical Drawings PC200R
