PC200
PVA
Revision G (2019)
42 of 56
Figure 61: Mechanical Drawing PC200RW
PC200RW Series Exploded View
Figure 62: Exploded View PC200RW
PC200
PVA
Revision G (2019)
43 of 56

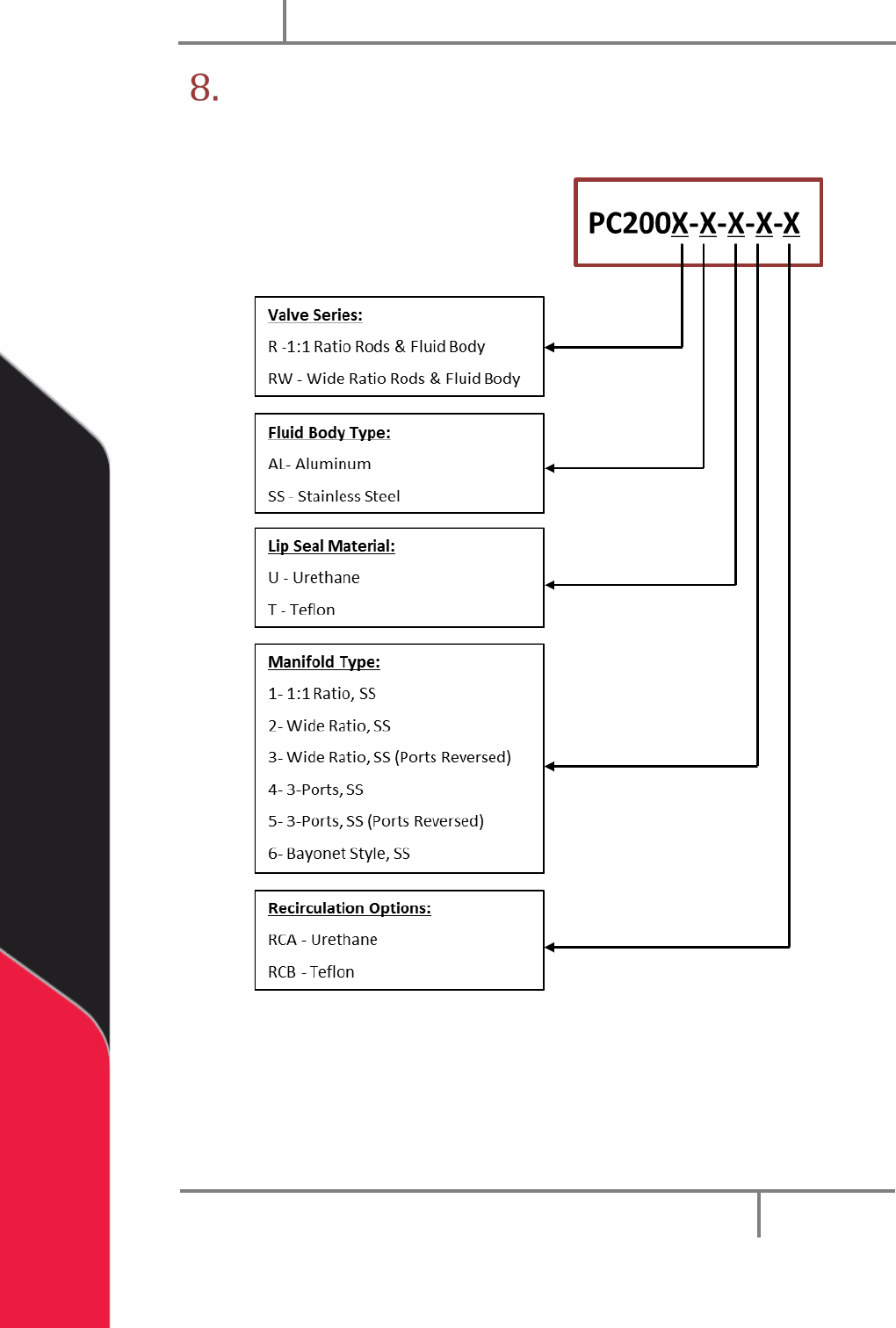

How to Order
Figure 63: Part Number Configuration
PC200
PVA
Revision G (2019)
44 of 56
Accessories and Options
Item
Part Number
Description
1
114-0557-W
Ratio Cap, UHMW
2
214-3832
Night Cap
3
XMLRL-1
Fitting, #10-32 x Male Luer
4
01449
Precision Orifice, #10-32 x .035"
5
214-3833
Retaining Nut, Standard Mixer
6
114-5740
Retaining Nut, Bayonet Mixer
7
4M-C04L-1-V-SS
Check Valve, 1/4" NPT, 1 psi cracking pressure, Viton
8
4M-C04L-1-KZ-SS
Check Valve, 1/4" NPT, 1 psi cracking pressure, Kalrez
9
6-1/4AOEG-S
Fitting, 9/16-18 SAE x 1/4" NPT Elbow, Carbon Steel
10
6-1/4AOEG-SS
Fitting, 9/16-18 SAE x 1/4" NPT Elbow, Stainless Steel
11
KJL07-32
Fitting, One Touch, 1/4" Tube
12
AS1201F-
U10/32 07
Fitting, One Touch, Speed Control, 1/4" Tube
13
6HP5ON-SS
Recirculation Hole Plug, Hollow Hex, 9/16-18 SAE, SS
14
214-0544
Tool, Lip Seal Alignment
15
PV101
Hand Gun, Pneumatic
16
PV101E
Hand Gun, Electric
17
PVA-BALANCE
Tooling Arm w/ Mounting Bracket
18
B62-2048
2.5cc Syringe - Silicone Lubricant for Seals
