TECHNICAL REFERENCE
DRIVES AND SENSORS
Chapter Issue 8 Dec 02 ProFlow Manual 1.27
DRIVES AND SENSORS
Motors (GSX, Lt and Infinity)
The ProFlow system on GSX, Lt and Infinity machines utilizes the machines
existing squeegee motors and sensors for all vertical movement configurations.

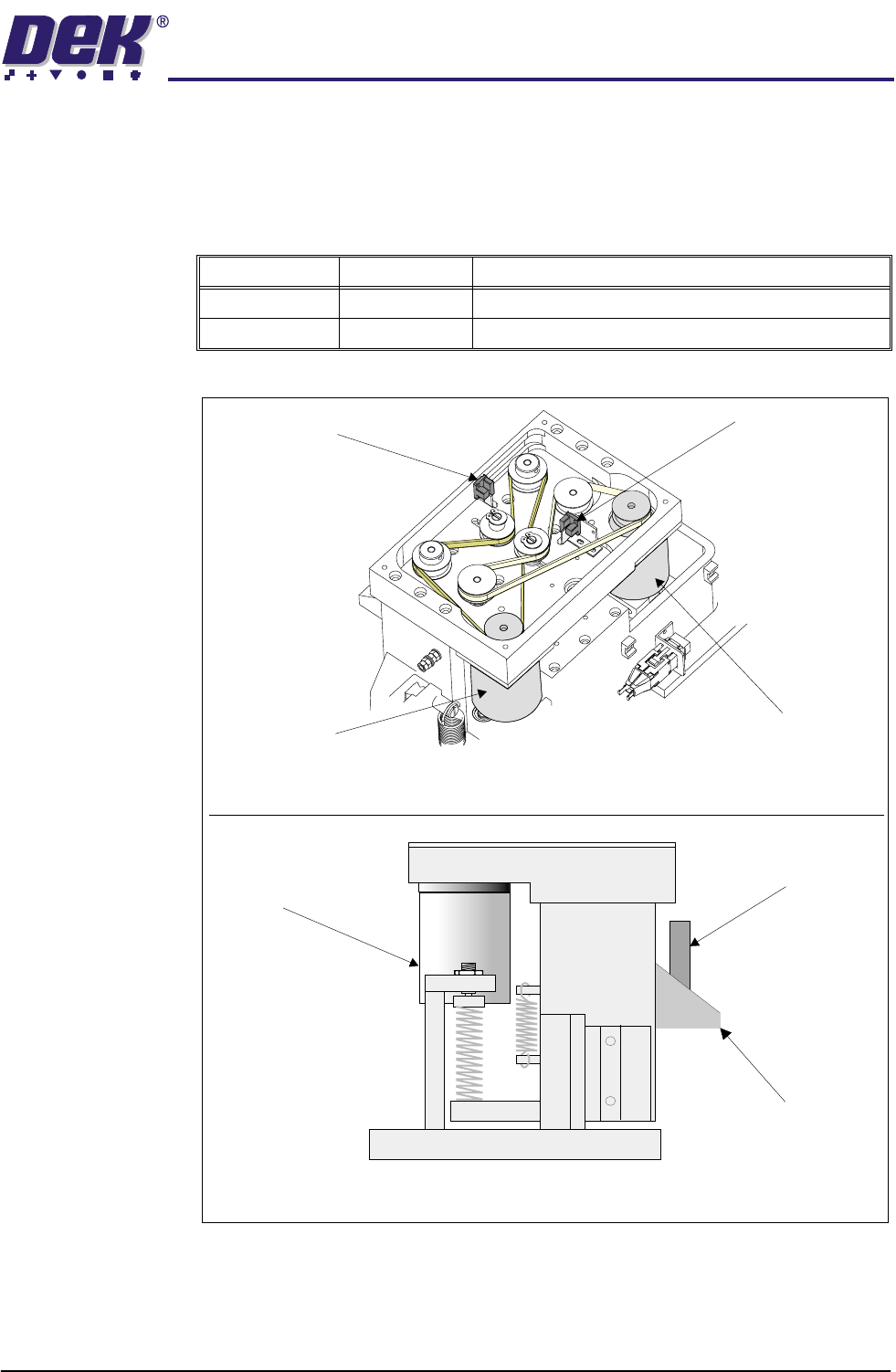

Figure 1-20 Squeegee Motor and Sensor Locations
Name Type Functional Description
Front Squeegee Stepper Motor Raises and lowers the downstop to the required height
Rear Squeegee Stepper Motor Raises and lowers the ProFlow to the required height
Side View on Squeegee Mounting Assembly
Stepper Motor
Drive (2 positions)
Rear Squeegee
Attachment Plate
Front Squeegee
Attachment Plate
Front Squeegee
Home Sensor
Front Squeegee
Stepper Motor
Rear Squeegee
Stepper Motor
Rear Squeegee
Home Sensor
Rear View of Printhead Pressure Mechanism (cover removed)
TECHNICAL REFERENCE
DRIVES AND SENSORS
1.28 ProFlow Manual Chapter Issue 8 Dec 02
Motor (fixed head
machines)
The ProFlow system on fixed head machines utilizes the ProFlow printhead
mechanism motor and sensor for all vertical movement configurations

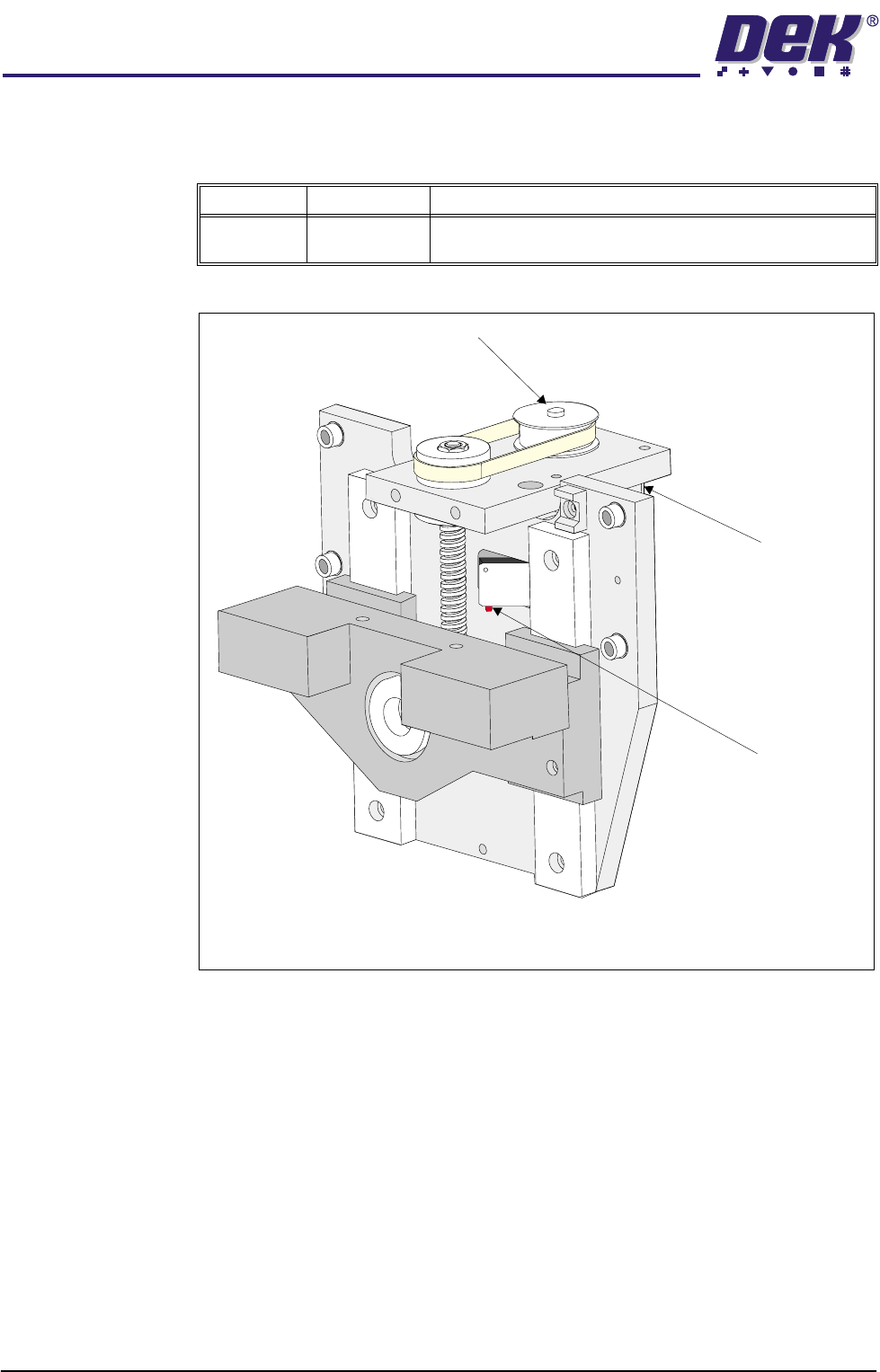

Figure 1-21 ProFlow Mechanism Motor and Sensor Location
Name Type Functional Description
ProFlow
Mechanism
Stepper Motor Raises and lowers the ProFlow to the required height
ProFlow Mechanism
Stepper Motor Drive Pulley
Stepper Motor (Behind
Attachment Plate)
ProFlow Home Sensor
TECHNICAL REFERENCE
DRIVES AND SENSORS
Chapter Issue 8 Dec 02 ProFlow Manual 1.29
Sensors
GSX and Lt Machines
Name Type Test Point Functional Description
Cassette Low Reed Switch Y3 X3 PCADADIO Detects when the transfer head is low on paste/empty
Squeegee
Front Home
Hall Effect Y1 X4 Pin b24 Detects when the ProFlow downstop has moved into
the home position
Squeegee
Rear Home
Hall Effect Y1 X4 Pin c26 Detects when the ProFlow unit has moved into the
home position
Infinity Machines
Name Type Test Point Functional Description
Cassette Low Reed Switch MultiMove X12 IN6 Detects when the transfer head is low on paste/empty
Squeegee
Front Home
Hall Effect Stepper Multiplexer Detects when the downstop has moved into the home
position
Squeegee
Rear Home
Hall Effect Stepper Multiplexer Detects when the ProFlow unit has moved into the
home position
Fixed Head Machines
Name Type Test Point Functional Description
Cassette Low Reed Switch MultiMove X12 IN6 Detects when the transfer head is low on paste/empty
ProFlow Home Microswitch Stepper Multiplexer Detects when the ProFlow unit has moved into the
home position
