System components and configurations

Setup Center System components

Installation Manual SIPLACE Setup Center 2.3

4 System components and configurations

4.1 System components

4.1.1 Setup Center

A complete installation of SIPLACE Setup Center requires:

 SIPLACE Pro Interface and SIPLACE Pro Desk

SIPLACE Setup Center consists of the following components:

 SIPLACE Setup Center GUI

 SIPLACE Setup Center Database

 Database Backup Tool

 Error Reporting Tool

In addition the following tools can be installed:

 Setup Selection Assistant

 SIPLACE Pro Trace Config Assistant

4.1.2 Scanner system

4.1.2.1 Dragon Scanner

The Setup Center supports the radio-controlled scanner system "Dragon M101" by Datalogic. This

scanner has a four-line display and supports 1D barcodes only.

Communication between the scanner and the Setup Center requires the cradle "OM-Dragon". This is

connected to the Setup Center PC via the serial port. Each Setup Center GUI supports one cradle. Up

to 32 scanners can be linked to one cradle. Setup Center supports simultaneous operation with multiple

scanners.

The barcode types supported in standard configuration are:

 EAN 8/EAN 13/UPC A/UPC E

 Interleaved 2/5

 Code 39

 Code 128

 Code 93

4.1.2.2 Symbol MC70

The Setup Center supports the 2D barcode scanning with the "Symbol MC70" scanner, equipped with

2D scan engine, usable with 2,4 GHz and 5 GHz WLAN.

2D barcodes contains more information than 1D barcodes. The support for 2D barcode scanners

enables the operator to scan more packaging information at same time.

The following barcode types are supported by the scanner software:

 Code 39, Code 128, Code 93, Codabar, Code 11

 Interleaved 2 of 5,

 Discrete 2 of 5,

 MSI,

 UPC/EAN family (EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, UPC/EAN supplementals),

 Coupon Code,

System components and configurations

System components Forced Setup Verification

12 Installation Manual SIPLACE Setup Center 2.3

 Code 39 Trioptic,

 Composite Code,

 PDF417,

 Micro PDF417,

 RSS Expanded, RSS Limited, RSS-14,

 Data Matrix,

 Maxi Code,

 QR Code,

 US Postnet, US Planet,

 UK 4-state,

 Australian 4-state,

 Canadian 4-state,

 Japanese 4-state,

 Dutch Kix.

4.1.3 Forced Setup Verification

The Activation CD activates the forced setup verification and the component level indicator at the

SIPLACE placement machine.

The following station software versions support the forced setup verification:

 407.04 SP2 or higher

 505.04 SP1 or higher

 604.01 or higher

The following station software versions support the unforced setup verification:

 408

 503

 601

 602

 603

The forced setup verification monitors the verification status of individual tracks. Non-verified tracks are

disabled to force setup verification.

The component level indicator identifies the component fill level for each track, and updates the fill level

for each track at the end of each PCB. Further, it manages threshold values for each track and stops the

pick up process, if a threshold is reached.

4.1.4 Docking Station

The docking station is the link between the X-Series changeover table and the X-Series feeder and forms

the communication point between SC PC and feeders/changeover tables. Docking stations supply the

feeders with compressed air and energy. Data transfer is via a CAN bus cable.

There are various docking stations, for the different table types:

 Docking station for X-Series tables

System components and configurations

SIPLACE Pro System configuration

Installation Manual SIPLACE Setup Center 2.3

4.2 System configuration

There are several different recommended installation scenarios for SIPLACE Setup Center. The

installation depends on the working area where SIPLACE Setup Center will be used and on other

conditions as described below.

4.2.1 SIPLACE Pro

It is recommended that at least the SIPLACE Pro Interface (SPI) is installed on the system. SIPLACE

Setup Center works with SIPLACE Pro 3.2, 4.1 and 5.0 but it uses different files, depending on the

SIPLACE Pro version.

Further information about this is given in the according installation steps for SIPLACE Setup Center GUI.

4.2.2 Setup Center Database

Before the first installation you must decide which type of data management will be used. The following

decision tree should give you support with this decision. Please read through the questions thoroughly

and follow the appropriate result path. As a result you get the recommended kind of installation for the

SIPLACE Setup Center database.

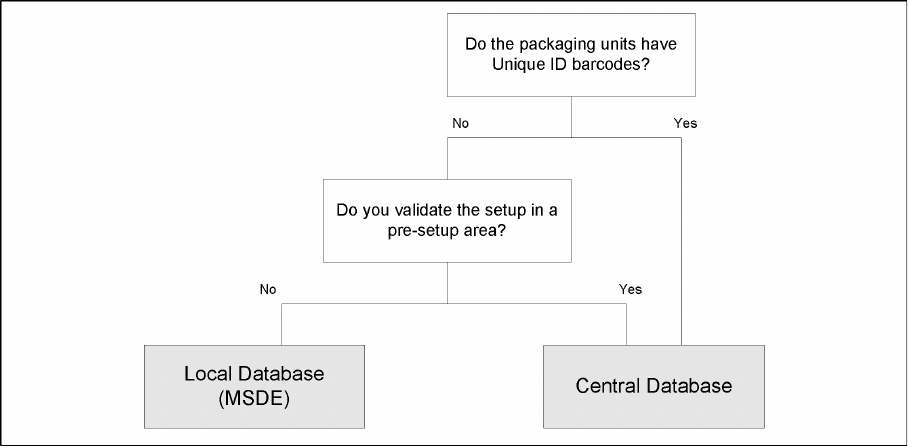

4-1: Decision Tree for SIPLACE Setup Center Database

Questions:

 Do the packaging units have Unique ID barcodes?

Each packaging unit in the factory must be marked with a unique barcode. It is possible that the

unique ID is part of a combined barcode.

 Do you validate the setup in a pre-setup area?

The pre-setup area is used to validate the setup for correctness and completeness. The validated

tables are docked to the production line(s) for use.

 Local database (MSDE)

This scenario does track the numbers of components on each packaging unit. The current number

of components are "remembered" when the packaging unit is torn down. If the packaging unit is

moved to another line the other Setup Center system does not know this reel and will start with the

start quantity. Therefore the operator need to check each partially fractured packaging unit he gets
