Installation

Setup Center Software Installation

Installation Manual SIPLACE Setup Center 2.3

Step 5

X The installation routine is now started.

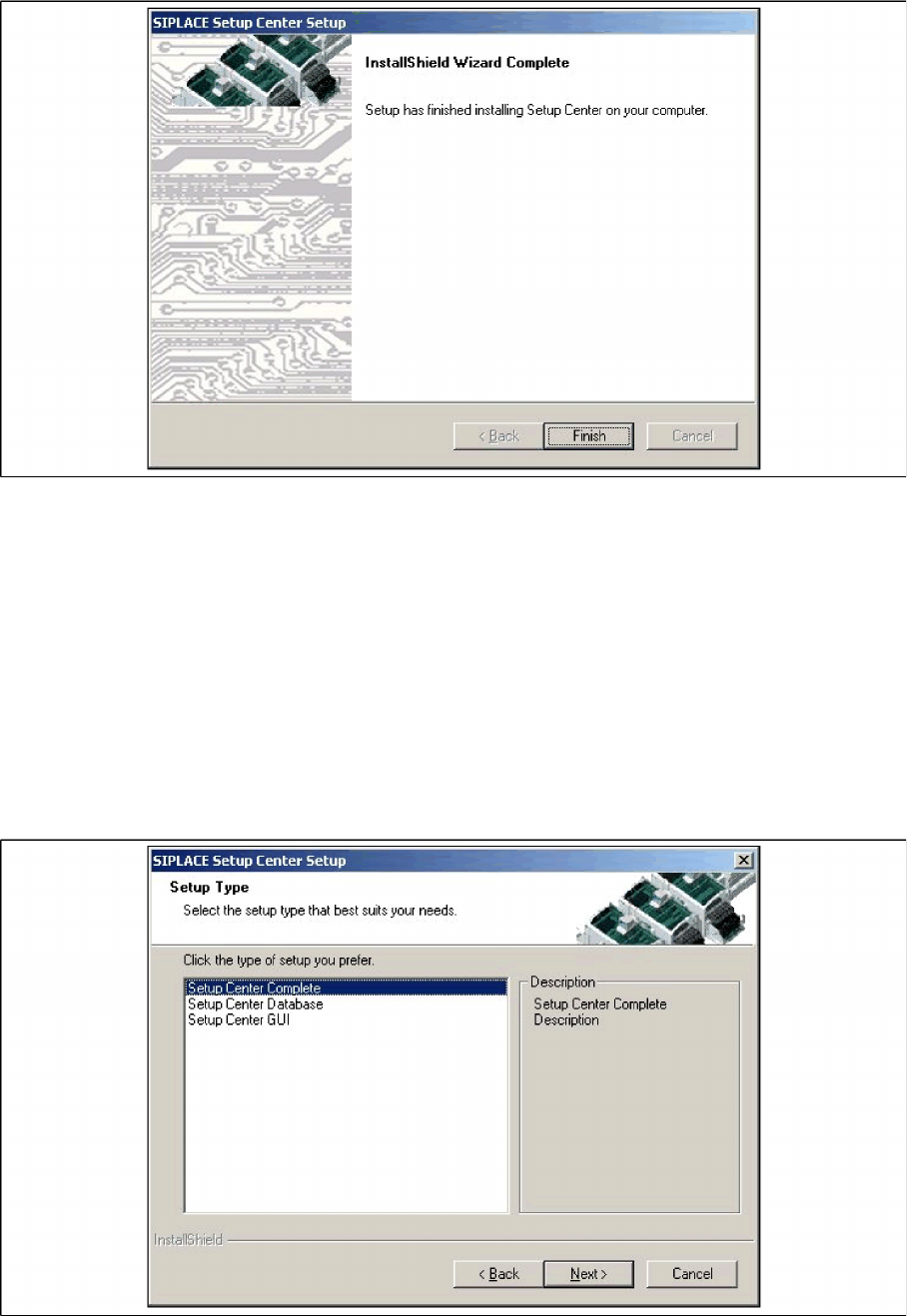

X The "Setup Complete" window confirms that the installation has been completed successfully.

X Click Finish.

Setup Type – Complete

This setup type contains all SIPLACE Setup Center components for operating the system on a single

computer. It is used to install a Setup Center stand alone system.

The Setup detects weather SQL Server or MSDE (Microsoft Data Desktop Engine) has already been

installed.

Select this type to install all SIPLACE Setup Center system components (GUI, Database) on one

compute. However, it is possible to integrate further clients on other computers.

Step 1

Run through the steps in chapter "General Settings".

X Select the SIPLACE Setup Center complete system setup type.

Installation

Software Installation Setup Center

54 Installation Manual SIPLACE Setup Center 2.3

X Click Next.

Step 2

The installation detects the existing SPI version and installs the according SIPLACE Setup Center files.

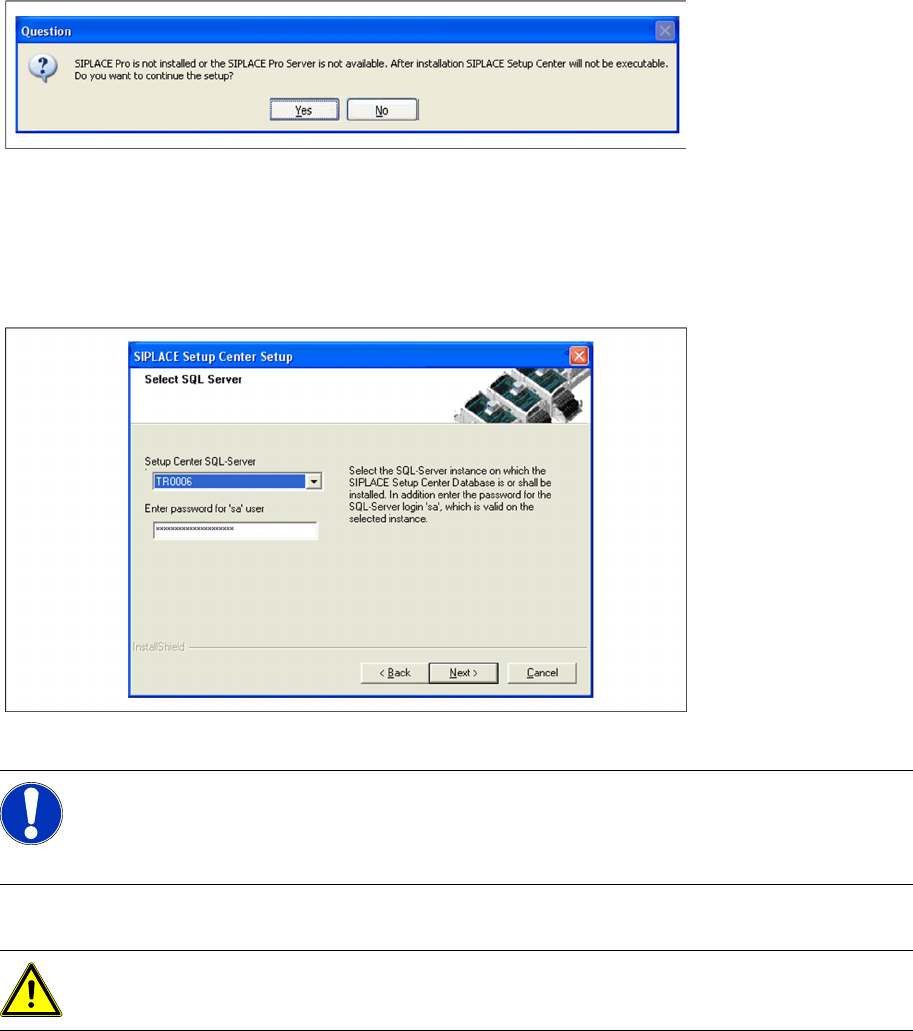

In case no SPI is detected, a warning message is displayed.

X Make sure that SIPLACE Pro is already installed or the SIPLACE Pro Server is available.

X Click Yes to continue the setup.

Step 3

X Enter the information required to be connected with the SQL Server and database in the Select SQL-

Server dialog box.

X Enter the Passwordfor the SQL Server user "sa", i.e. the SQL server system administrator.

X Choose your SQL Server Instance from the pull-down menu.

X Click Next.

Step 3a

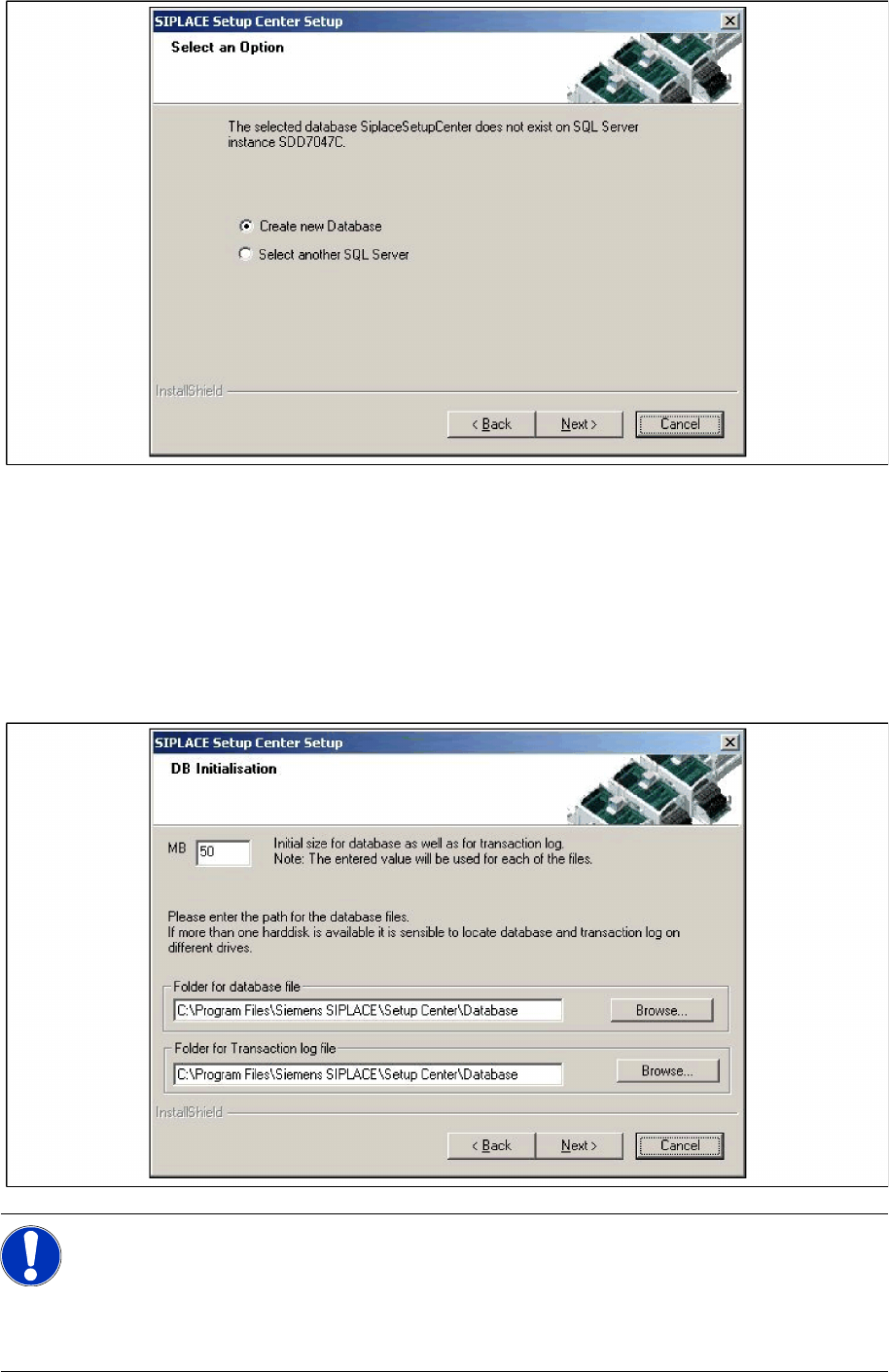

X The following dialog appears, in case neither database with the name "SiplaceSetupCenter" nor the

correct version exists:

NOTE:

This password is empty if MSDE has been freshly installed. In this case, erase the displayed

default password. Subsequently, a window will open, prompting you to change this password.

You may accept the Siemens Service default password or choose one of your own.

ATTENTION:

Only the SQL Server Instances on the local computer are selectable

Installation

Setup Center Software Installation

Installation Manual SIPLACE Setup Center 2.3

X Choose Select another SQL Server, you return to the previous dialog.

X Click Next to create a new database.

Step 4

X Enter the information required to be connected with the SQL Server and database in the DB

Initialization dialog box.

X The figure you enter in the MB text box defines the size of the SIPLACE Setup Center database files

(default: 50) which are to be created during the installation.

X Confirm the default value or enter the size you want in the MB text box.

NOTE:

The specified size is only an initial value. The database will grow automatically as required.

However, only the database administrator is capable of freeing up unused disk space. In the

database files edit field, enter the directory in which the

SIPLACESetupCenter.mdf

file is to

be created. In the transaction log file edit field, enter the name of the directory in which the

SIPLACESetupCenter.mlf

database file is to be created.
