SC-450 PreciseCoat Conformal Coating Jet Maintenance and Service
24 © 2024 Nordson Corporation
5.6 Removing the SC-450
Tools and Materials Needed:
•
Metric Allen Wrench Set
•
S
hipping
Kit
(
Item 23
)
• Torque Wrench (0-50 in-lbs)
WARNING!
Ensure the fluid system is completely depressurized prior to loosening any fittings
in the fluid path. Failure to do so may cause serious injury to personnel.
WARNING!
Protect the solenoid valve from contact with coating material or solvents.
Contamination could cause solenoid valve failure.
5.6.1 Depressurizing the SC-450
To depressurize the SC-450:
1. Remove fluid needle, see 5.5.1 Cleaning and Replacing the Fluid Needle.
2. Flush the fluid system with an appropriate solvent. Refer to the applicable coating system
Installation, Operations, and Maintenance Manual.
?
NOTE
If a solvent is used to flush the system, make sure the fluid lines are clean and
dry before resuming operations.
3. Click on Edit > Edit Mode from the EasyCoat Operator Screen to open the Edit Screen.
4. From the EasyCoat Edit Screen, select Utilities > Pressure Adjust > SC-450 (Figure 5-2).

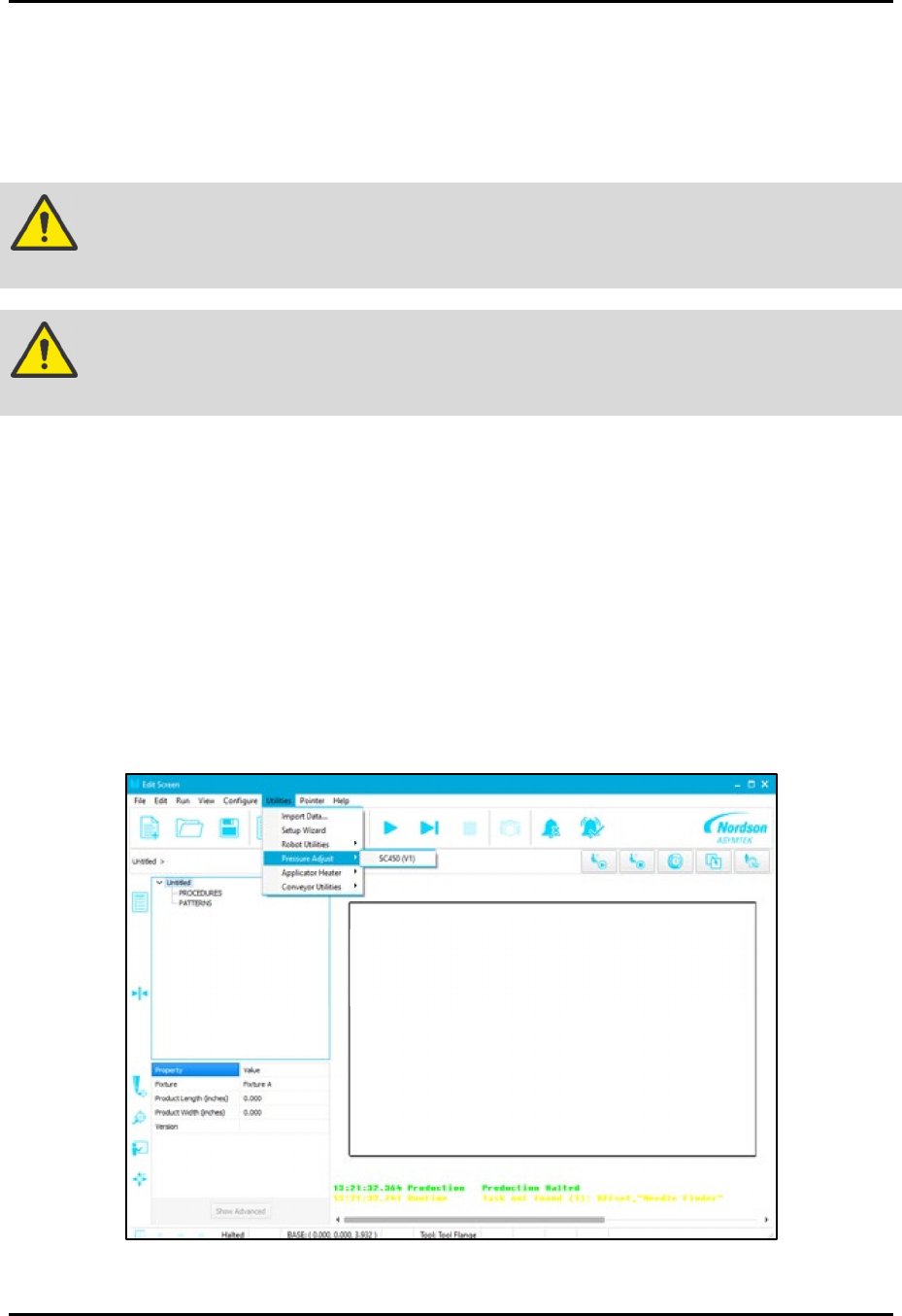

Figure 5-2 Utilities - Pressure Adjust Menu
SC-450 PreciseCoat Conformal Coating Jet Maintenance and Service
© 2024 Nordson Corporation 25
5. Depressurize the fluid system using the fluid pressure switch located at the back of the
coating system. Refer to the applicable coating system Installation, Operations, and
Maintenance Manual.
6. Disable the SC450 Heater on the SC450 Heater tab (Figure 5-3).
7. Slide the fluid pressure bar to the left to reduce the SC-450 fluid pressure to zero (0) psi
prior to fluid needle inspection, removal, cleaning, or replacement.
8. Position the SC-450 at the purge cup by running the appropriate macro or manually moving
the SC-450 to the purge cup.
9. Toggle the Applicator Off button in the EasyCoat software to turn off the pressure.
> No fluid should dispense. If fluid does dispense, continue to dispense until all residual
pressure is relieved.

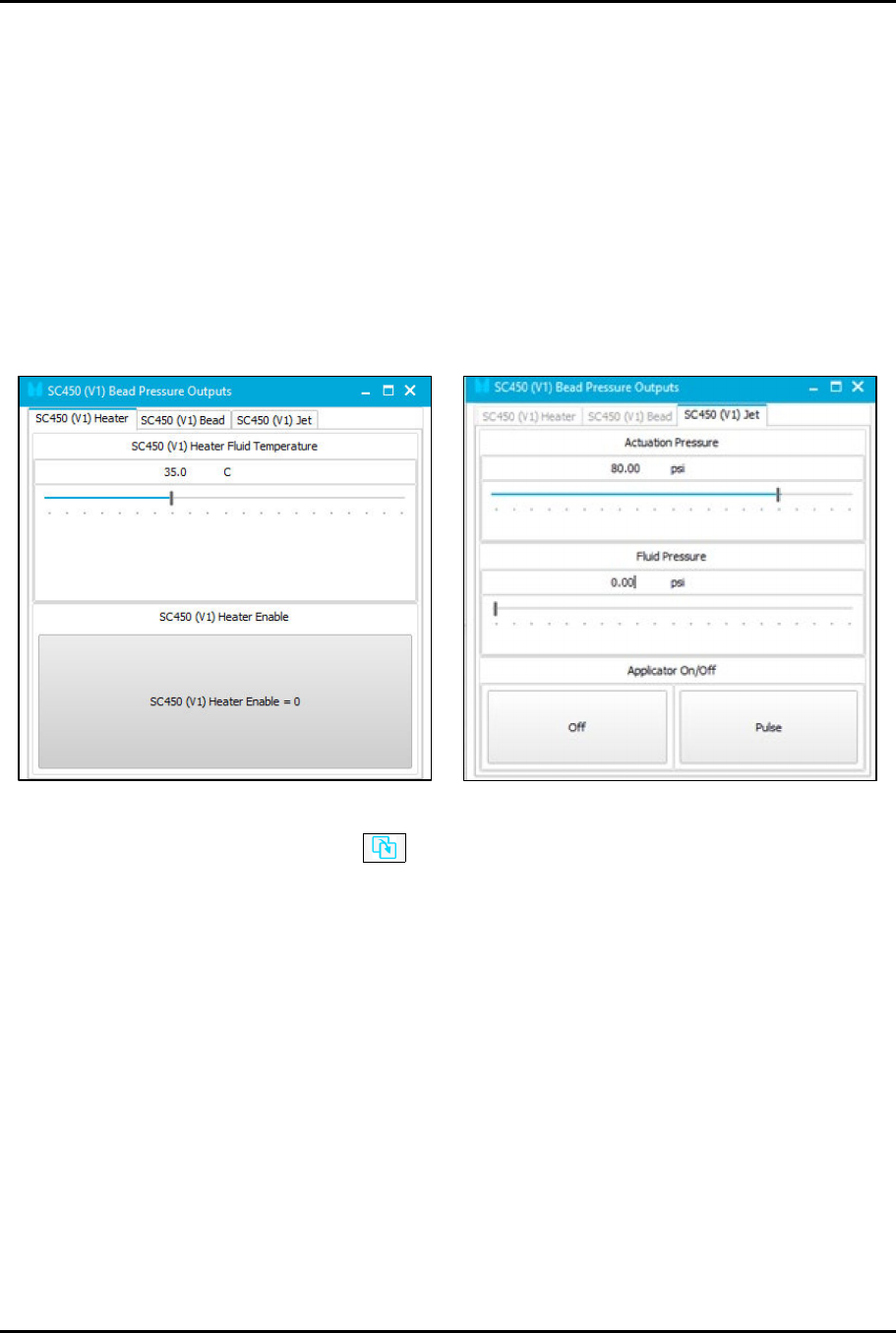

Figure 5-3 Pressure Outputs
10. Use the Go To Front button to move the SC-450 to the front center of the dispensing
area.
11. Open the front hood of the conformal coating system.
12. Lay towels or a cup under the SC-450 to collect fluid spills.
13. Disconnect the pneumatic, electrical, and fluid connections, see 5.6.2 Disconnecting the
Pneumatic, Electrical, and Fluid Connections.
SC-450 PreciseCoat Conformal Coating Jet Maintenance and Service
26 © 2024 Nordson Corporation
5.6.2 Disconnecting the Pneumatic, Electrical, and Fluid Connections
WARNING!
Protect the solenoid valve and other non-wetted parts from contact with fluid. Do
not immerse in solvent.
To disconnect the pneumatic, electrical, and fluid connections (Figure 5-4):
1. Depressurize the SC-450, see 5.6.1 Depressurizing the SC-450.
2. Perform a service shutdown. Refer to the applicable coating system Installation,
Operations, and Maintenance Manual.
3. For the SL-940:
a. Disconnect the valve solenoid cable from the SC-450 to the V2 position.
b. Disconnect fluid line (red tubing) from the fluid fitting and place the fluid line over the
purge cup for residual fluid.
?
NOTE
If only the SC-450 is to be removed, seal the fluid system immediately using the
appropriate cap or plug. Plugging the fluid lines prevents fluid curing due to air
exposure.
c. Disconnect Valve air from the Valve air connection on the dispense head.
4. For the SL-1040:
a. Disconnect the valve solenoid cable from the SC-450 to the valve connection on the
dispense head.
b. Disconnect fluid line (black tubing) from the fluid fitting and place the fluid line over the
purge cup for residual fluid.
?
NOTE
If only the SC-450 is to be removed, seal the fluid system immediately using the
appropriate cap or plug. Plugging the fluid lines prevents fluid curing due to air
exposure.
c. Disconnect Valve air from the Valve air connection on the dispense head.
