2. Maintenance Check List

The periodic maintenance items (inspection, cleaning, lubrication, etc.)

are classied and described based on how frequently each item should be

performed.

Use the tables below as check lists.

Reference

Refer to "3. Maintenance Spots" for the spots to be maintained.

2.1 Monthly Maintenance

Table D4-1

Object Units

Inspection, Cleaning,

and Lubrication Spots

Work Grease Required Items Check

3.3.1

Pallet

Pallet Inspection

and

Cleaning

Rag and

Visual Inspection

0706-002

2. Maintenance Check List

4-7

AJK-MLT-ID

2.2 Quarterly Maintenance

.OTE

DE1: DAPHNE EPONEX GREASE No. 1

NM1: MOLYNOC GREASE AP1

Table D5

Object Units

Inspection, Cleaning,

and Lubrication Spots

Work Grease Required Items Check

3.3.1

Pallet

Rail Inspection

Scale

Top Surface Inspection

Scale

3.3.2

Elevator Shaft

Ball Screw Lubrication DE1 Oiled Rag and Brush

Linear Guide Lubrication DE1 Oiled Rag, Brush and

Hand Grease Gun

Belt Inspection

Visual Inspection

3.3.3

Traverse

Pallet Receiver Inspection

Visual Inspection

Linear Guide Lubrication DE1 Oiled Rag, Syringe, and

Nozzle (No. 18)

Pallet Chuck Lubrication DE1 Oiled Rag, Syringe, and

Nozzle (No. 18)

3.3.4

Magazine Base

Cylinder Connection

Section

Lubrication NM1 Oiled Rag, Syringe, and

Nozzle (No. 18)

3.3.

Magazine

Rack Shutter Fulcrum

Section

Lubrication NM1

Oiled Rag, Syringe, and

Nozzle (No. 18)

2.3 Yearly Maintenance

.OTE

DE1: DAPHNE EPONEX GREASE No. 1

Table D5-1

Object Units

Inspection, Cleaning,

and Lubrication Spots

Work Grease Required Items Check

3.3.4

Magazine Base

Magazine Rail Lubrication

DE1

Oiled Rag, Syringe, and

Nozzle (No. 18)

0706-002

2.2 Quarterly Maintenance

4-8

AJK-MLT-ID

3. Maintenance Spots

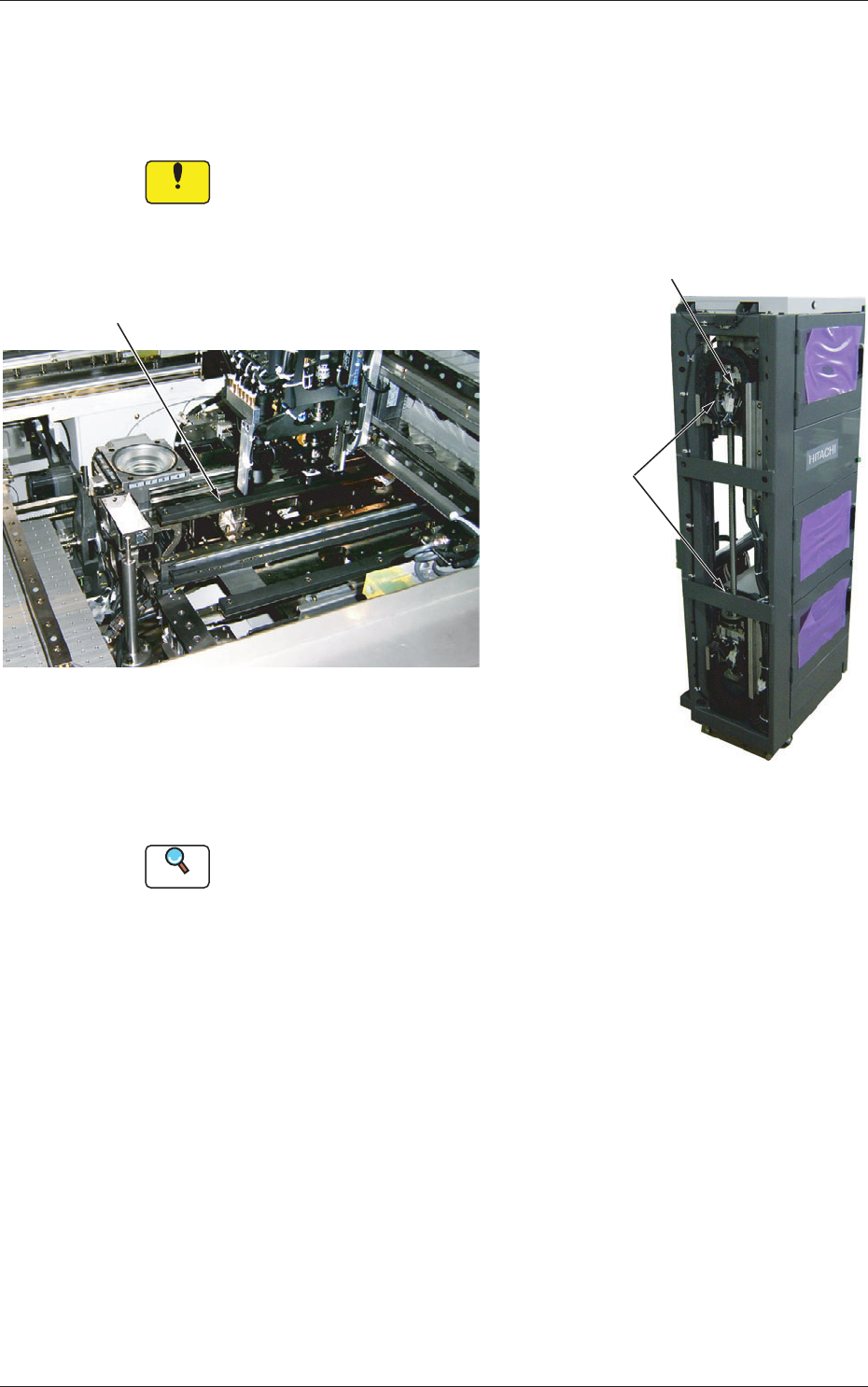

3.1 Whole View

Notice

Any operations with a cover(s) being removed are included.

After the maintenance work, be sure to attach the cover back in

place.

Traverse

Elevator Shaft

Magazine Base

Fig. D2

Reference

Refer to "3.3" and the subsequent items for the detailed information on the

spots of each section to be maintained and how to maintain them.
