2-20
AJK-MLT-ID
3.2.2 Motor
This window enables the operator to view the manual operation (manual axis
operation) of each device and the system information.

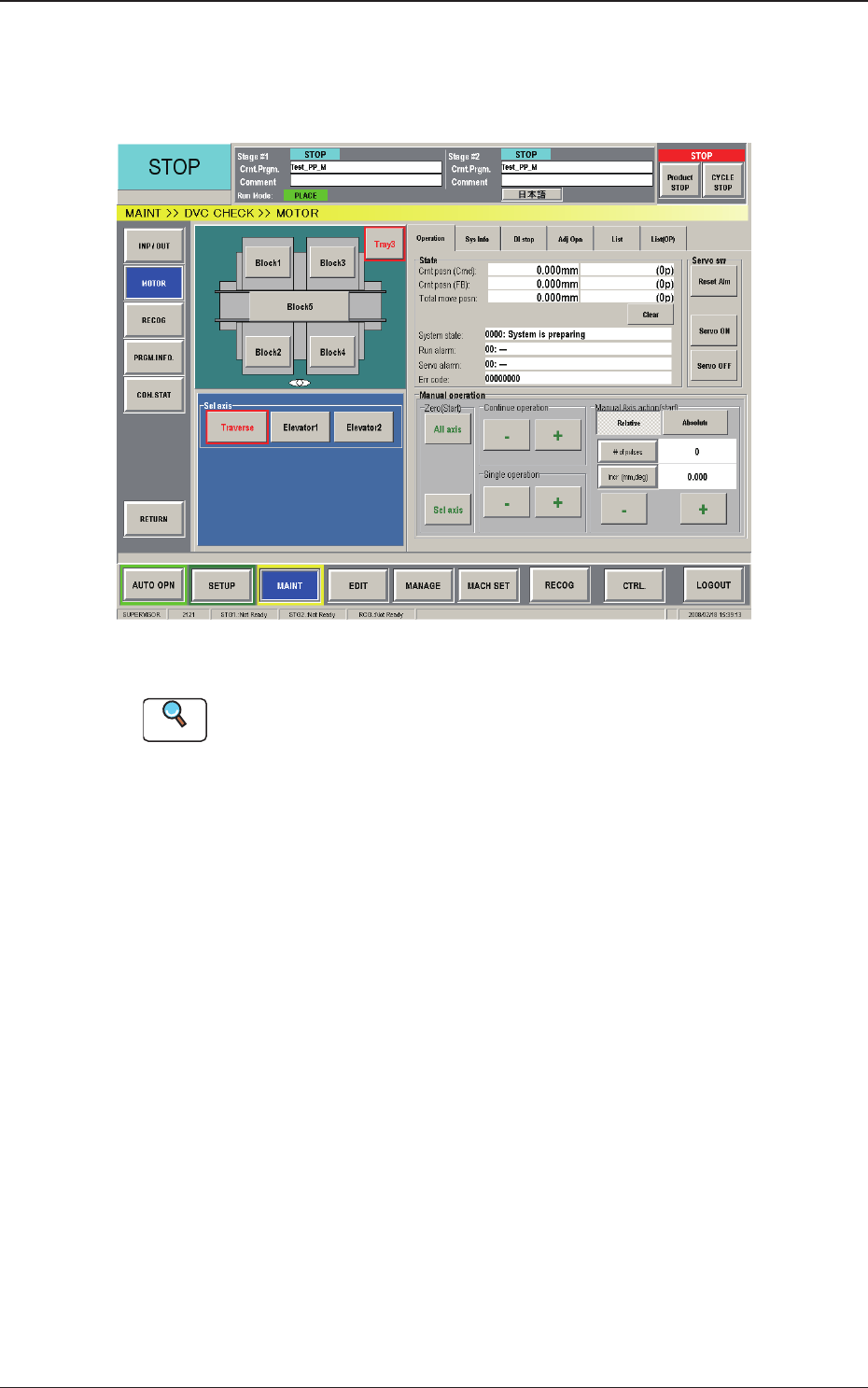

Fig. B14 "MOTOR" Window
Reference
Refer to "3.1 "I/O DIAG" Window" in "Chapter 4: Menus for
Maintenance" (Volume 2: Operation) in the instruction manual of the main
machine for details.
3.2 Device Check
0804-003
2-21
AJK-MLT-ID
3.3 Unit Adjustment
When the [UNIT ADJ] button on the submenu bar of the "MAINT" window
is pressed, the "UNIT ADJ. >> LINEAR Measure" window appears as an
initial one.

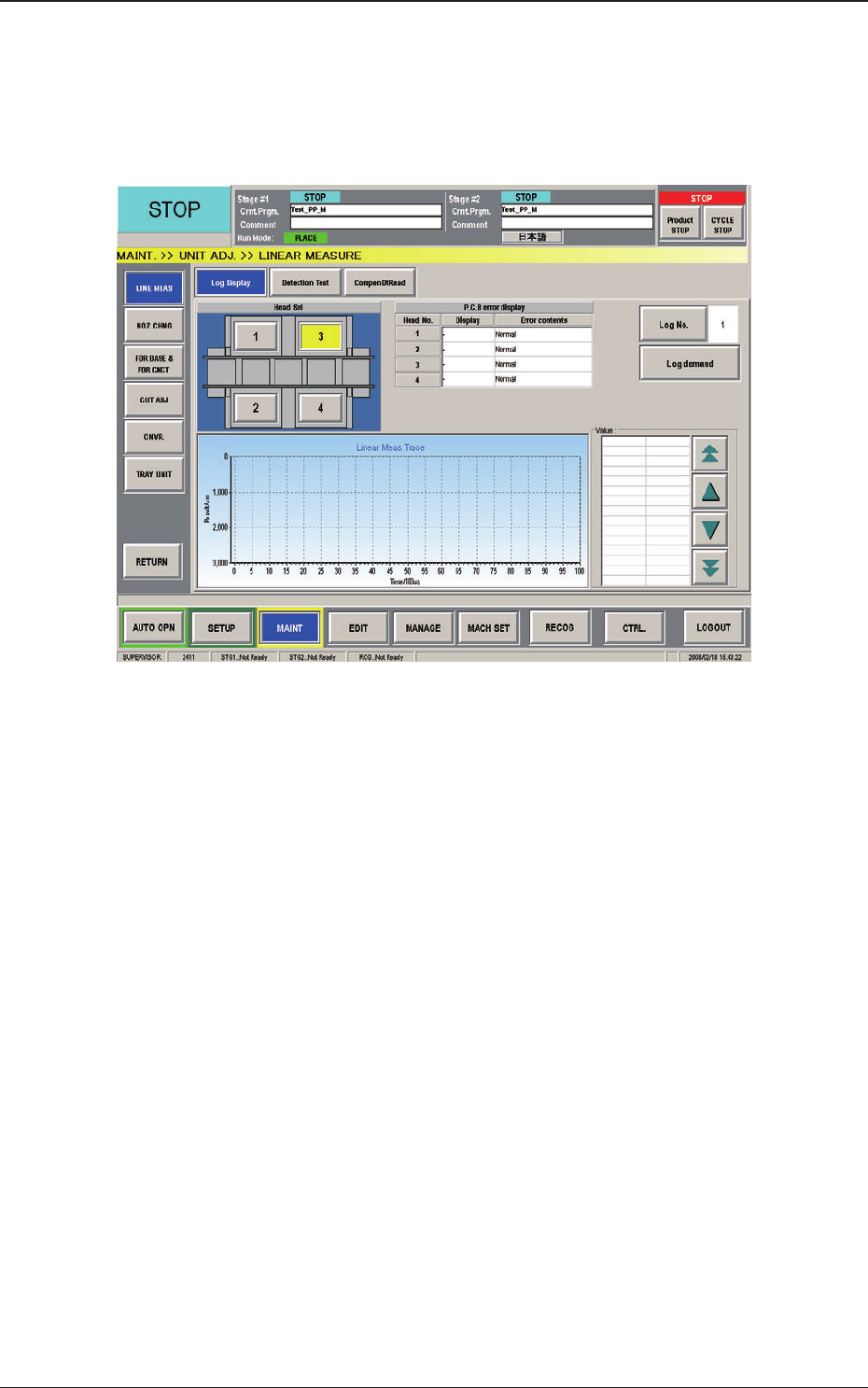

Fig. B15 "LINEAR Measure" Window
3.3 Unit Adjustment
0804-003
2-22
AJK-MLT-ID
3.3.1 Tray Unit
This window enables the operator to manually operate the multi-layer tray
feeder.
[1] [2] [3]
[4] [5]

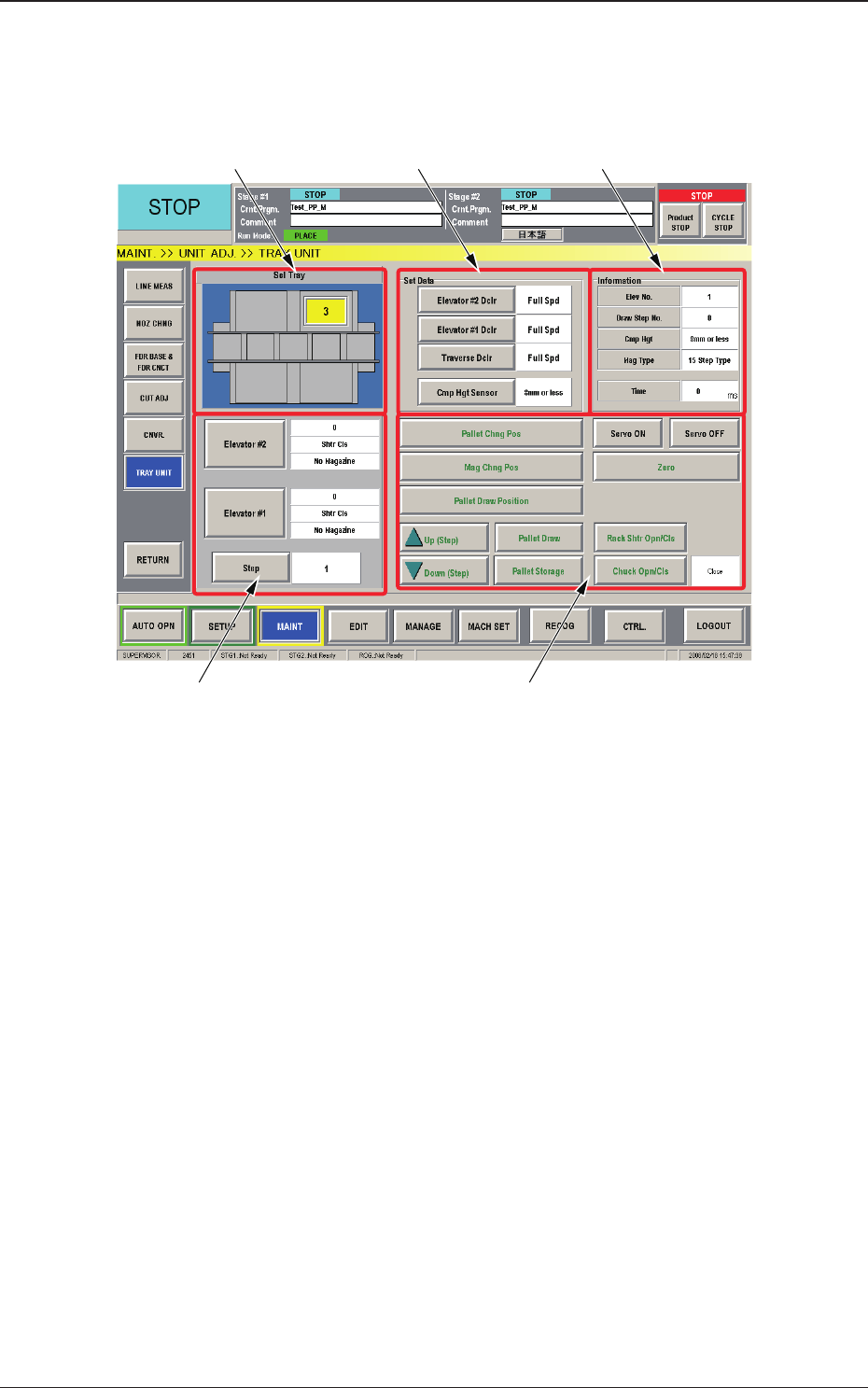

Fig. B16 "TRAY UNIT" Window
[1] Sel Tray
The installed multi-layer tray feeders are displayed, making it possible
for the operator to select one of the feeders.
[2] Set Data
Speed deceleration rates can be specied for each section of the multi-
layer
tray feeder.
Elevator #2 Dclr :
This is used to set the speed reduction rate of
Elevator #2.
Elevator #1 Dclr :
This is used to set the speed reduction rate of
Elevator #1.
Traverse Dclr :
This is used to set the speed reduction rate of the
Traverse.
Cmp Hgt Sensor :
This is used to set the level in which the height of
the Cmp Hgt Sensor.
3.3 Unit Adjustment
0804-003
