4-12
AJK-MLT-ID
3.3 Inspection, Cleaning, and Lubrication Spots
0706-002

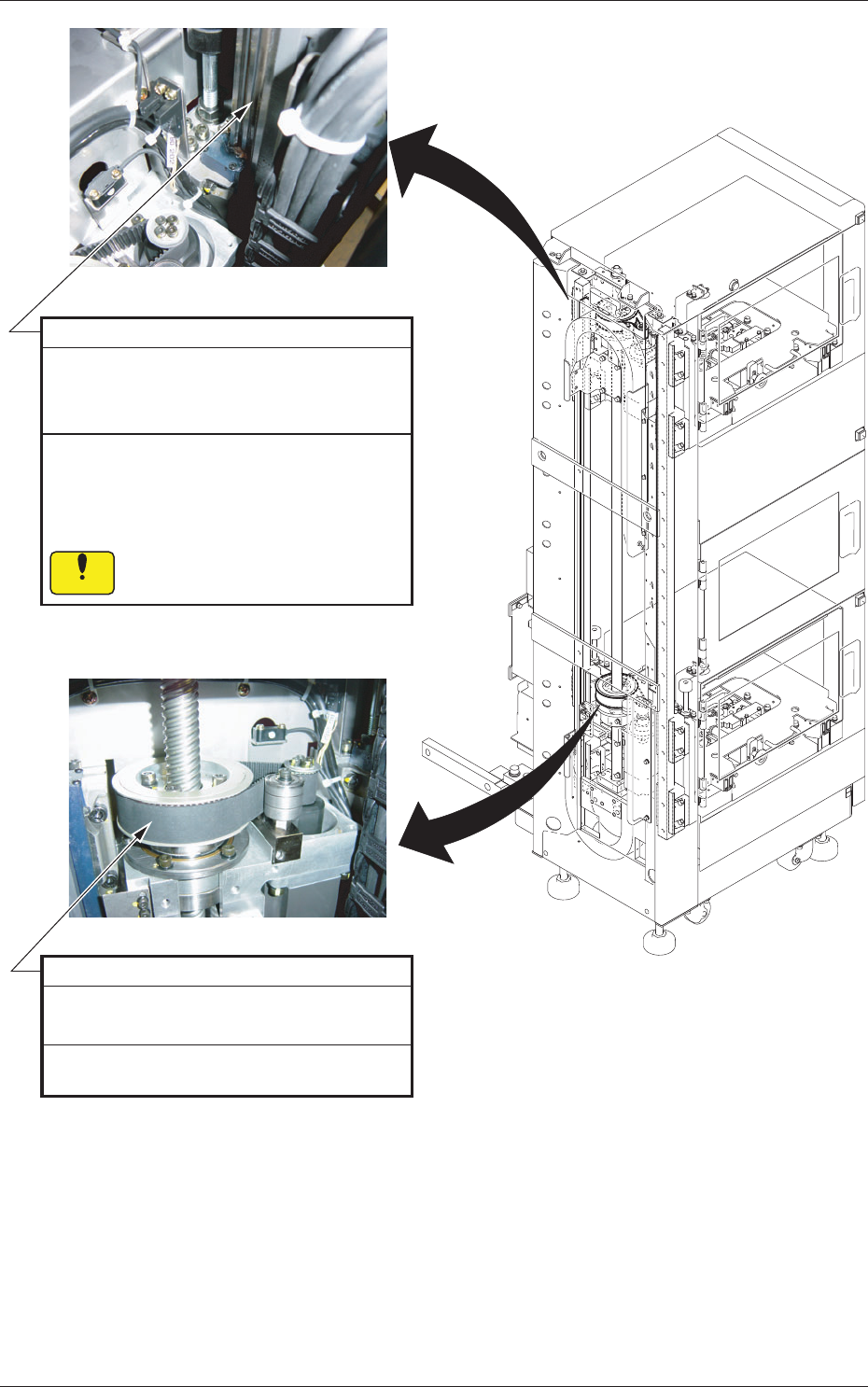

Linear Guide
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with an oiled rag and
apply new one with a brush or supply
grease from eight grease nipples with a
grease gun.
Take ample care not to leave any
waste threads after cleaning.
Notice
Belt
Every 3 Months Inspection
Required Time: 1 minute
Visually inspect the wear of the belt.
Fig. D6
4-13
AJK-MLT-ID
3.3 Inspection, Cleaning, and Lubrication Spots
0706-002

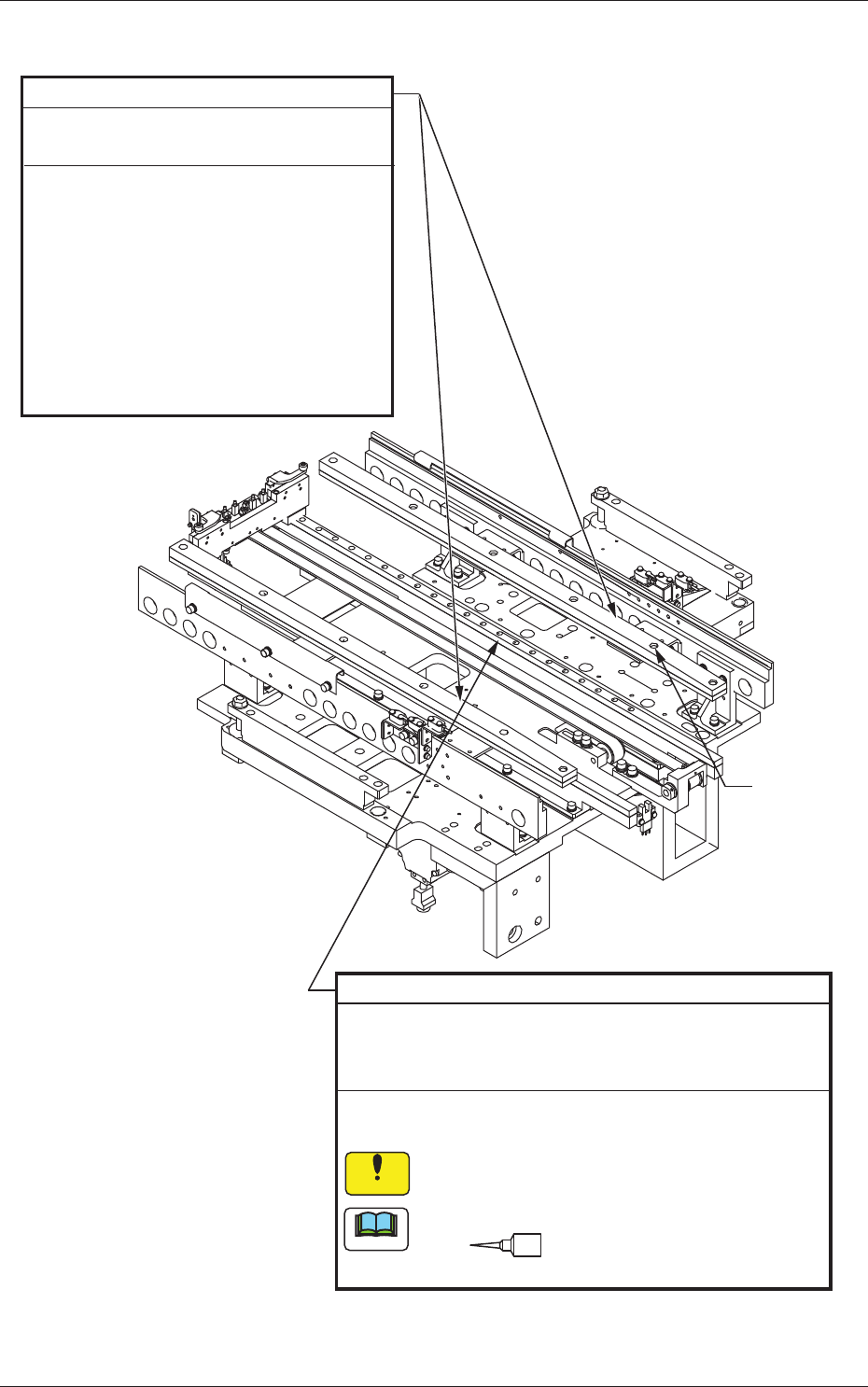

3.3.3 Traverse
Pallet Receiver
Every 3 Months Inspection
Required Time: 1 minute
Visually inspect the wear of the pallet
receiver.
When the receiver is worn out to the extent
that the pallet is warped, follow the steps
below for the replacement.
1. Remove sixth bolts fastening the pallet
receiver and detach the receiver.
2. Attach a new pallet receiver and tighten
the bolts.
Linear Guide
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with an oiled rag and apply new one
to the grooves of the linear guide with a syringe.
Take ample care not to leave any
waste threads after cleaning.
Note
No. 18
Use No. 18 (green) nozzle.
Bolt
Notice
Fig. D7
4-14
AJK-MLT-ID
3.3 Inspection, Cleaning, and Lubrication Spots
0706-002

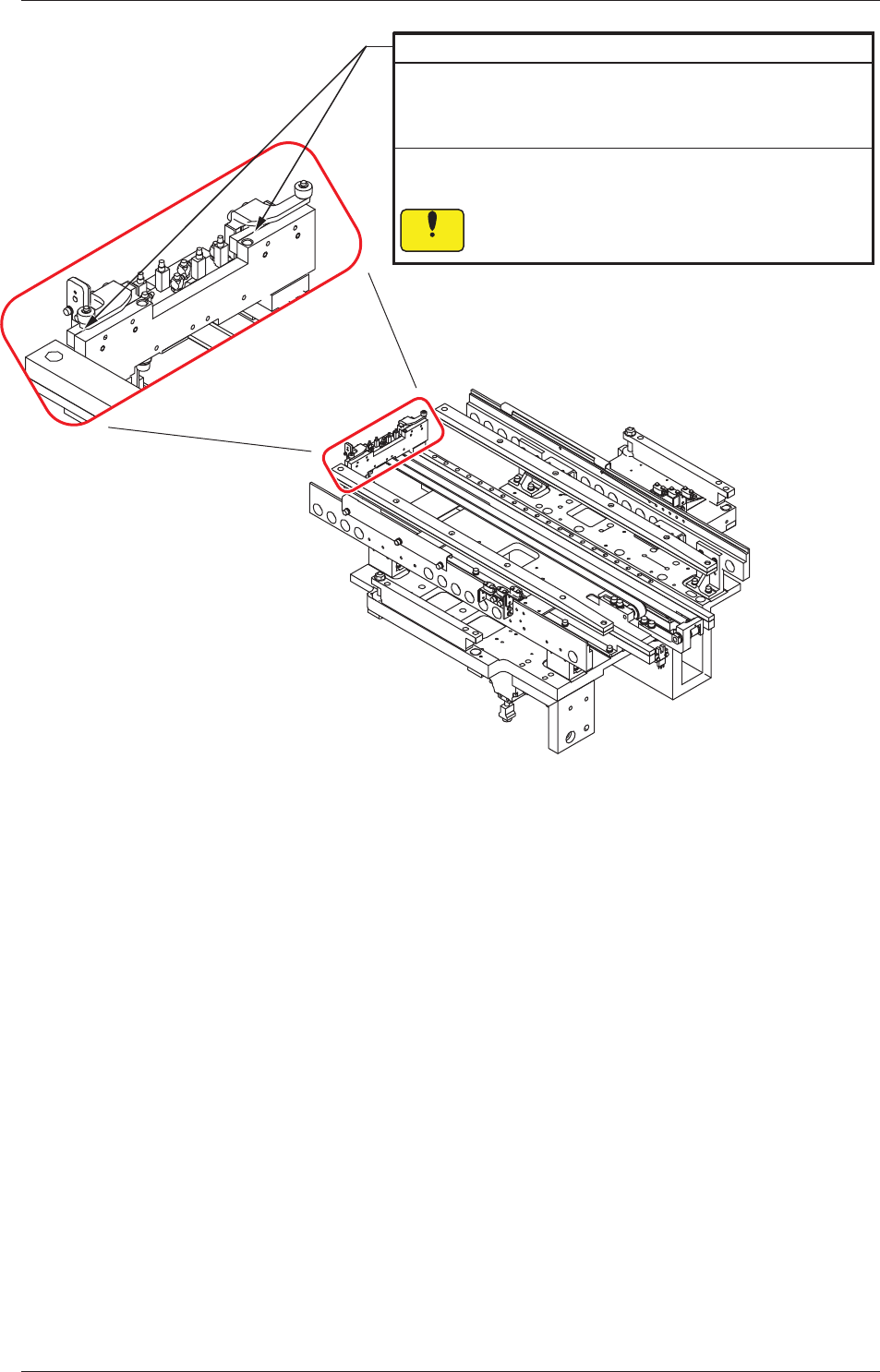

Pallet Chuck
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with an oiled rag and apply new one
to the grooves of the linear guide rails with a hand.
Take ample care not to leave any waste threads
after cleaning.
Notice
Fig. D8
