2-29
AJK-MLT-ID
(6) Move the object traverse drawing position for the manual alignment
operation with the image movement buttons until it is located at the
center of the crosshair.
(7) Press the
button in the recognition window to determine the
position.
The recognition window closes and the "T
raverse Axis Draw"
window resumes.
(8)
The results of the teaching operation appear in the text boxes
entitled "Adj" in the "Traverse Axis Draw" window.
(9)
Whenthe[End]buttonispressed,the"ConrmationtoSaving"
dialog box opens, asking you to answer if the data should be saved
or not.
When
the[Yes]buttonispressed,thedataisreectedonthe
component library data is written over the previous one.
Pressing the [No] button cancels the data save operation.
0806-001
3.4 Teaching Operation
2-30
AJK-MLT-ID
3.4.2 "Teach Standard Tray Pos" Window
This window can be used to correct the tolerance between the traverse mark
and standard tray positions.
To set the correction values as traverse X/Y offsets, perform a manual
alignment operation to specify the standard tray position.
When the [Teach Standard Tray Pos] button is pressed in the "Pick-Up
Location" window, the "Teach Standard Tray Pos" window appears.
[2]
[1]
[4]
[2]

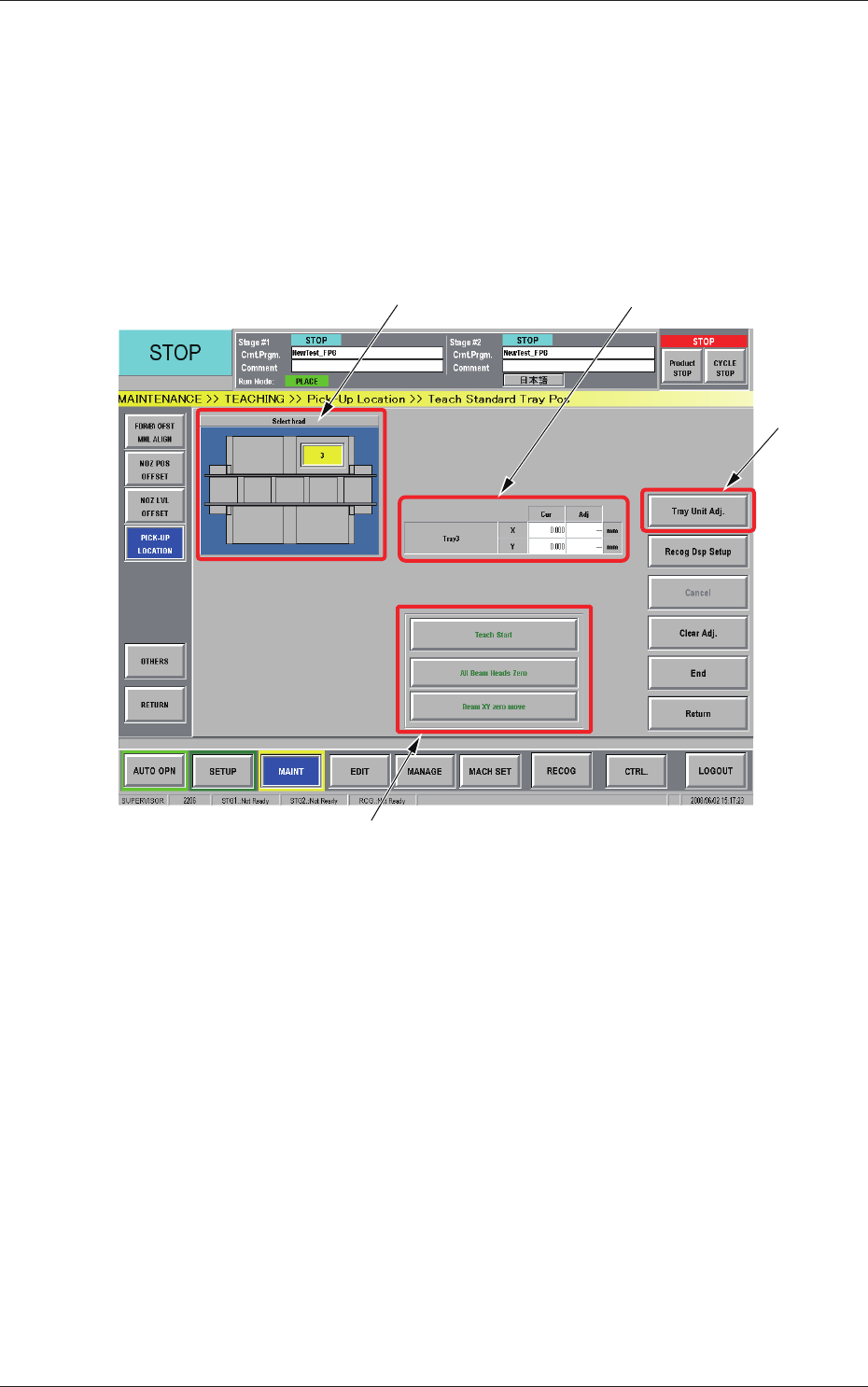

Fig. B23 "Teach Standard Tray Pos" Window
[1] Head Selection Buttons
Each head in the graphic image of the machine is provided with a
button function.
The installed multi-layer tray feeders are displayed, making it possible
for the operator to select one of the feeders.
[2] Tray3
Displayed are the current values that indicate the position of Tray #3.
After a teaching operation is performed, the results appear in the text
boxes entitled "Adj".
Cur :
Values before Teaching Operation
Adj :
Results of Teaching Operation
0806-001
3.4 Teaching Operation
2-31
AJK-MLT-ID
[3] Operation Buttons
[Teach Start] Button
When pressed, this button performs a teaching operation on the pickup
position.
When the [START] button on the operation panel is pressed in 10
seconds after this button, the "Manual Alignment Operation Guide"
window appears.
[All
Beam Heads Zero] Button
When pressed, this button zeroes the stage on which a teaching
operation is performed.
[Beam
XY zero move] Button
When pressed, this button returns the beams to their X and Y origins.
[4]
[Tray Unit Adj.] Button
When pressed, this button opens the "TRAY UNIT" window.
Fig. B24 "TRAY UNIT" Window
·
Procedure for Teaching Operation
(1) Select the feeder base for which the teaching operation should be
performed.
(2)
Press the [Fdr No.] button and enter the required feeder No.
(3) Press the [All Beam Heads Zero] button to zero the stage on the
teaching side.
0806-001
