2.4.1 Feeder (B) Offset
Displayed is the current feeder (B) offset data.
The feeder (B) offset data can be conrmed, adjusted, or cleared (initialized).
[1]
[3]
[2]

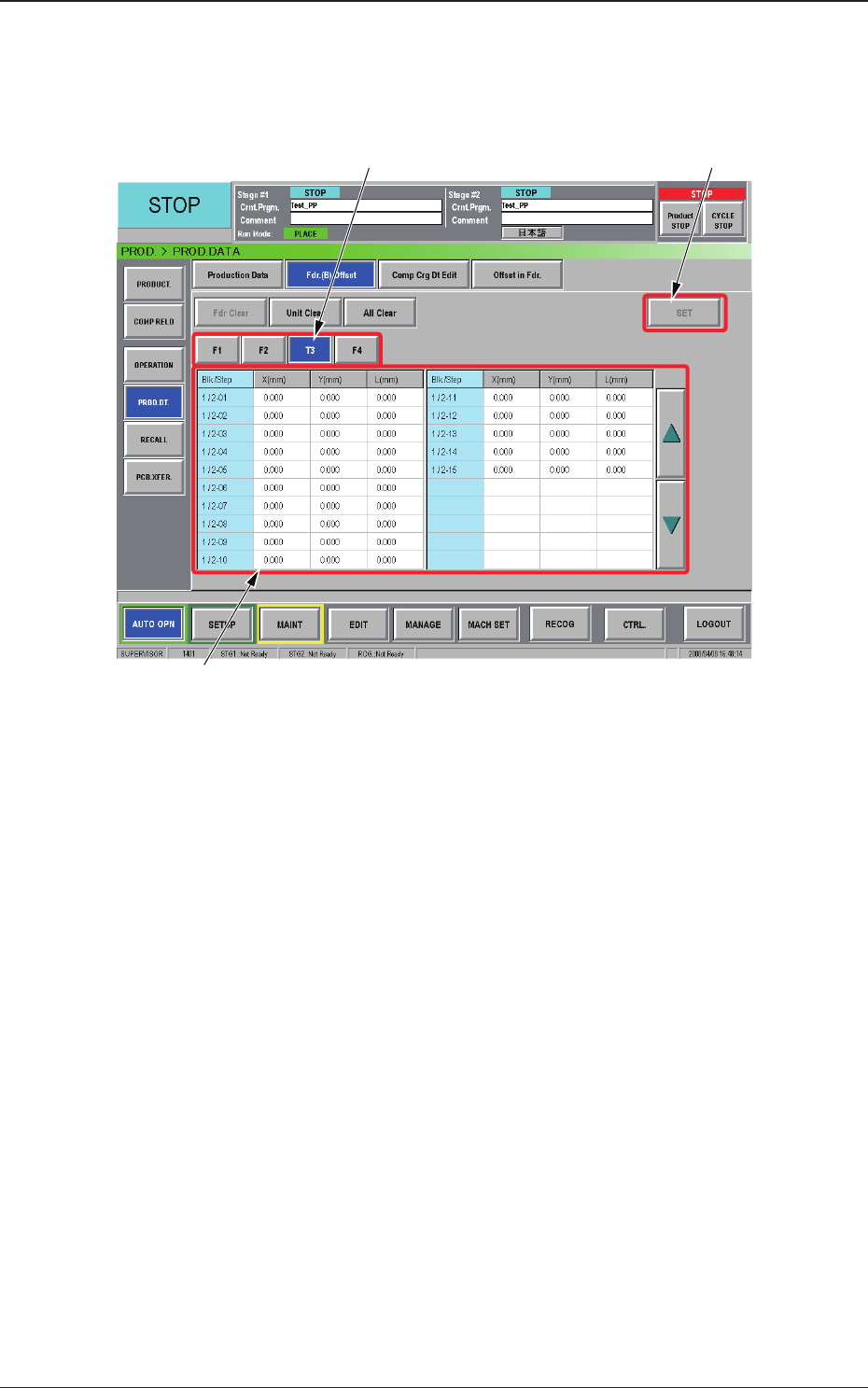

Fig. B7 "Fdr. (B) Offset" Window
[1] Unit Selection Buttons
Select the feeder base (the [Tn] button in the case of the multi-layer tray
feeder) whose feeder (B) offset data should be conrmed or cleared.
[2] Information
Display
Displayed is the data of the feeder base (the multi-layer tray feeder)
selected currently in [1].
When a value in the "X (mm)", the "Y (mm)", or the "L (mm)" text box
of each "Blk/Step" No. is pressed, the "Fdr. (B) Offset" window opens,
making it possible to adjust the feeder (B) offset data.
[3] [SET]
Button
When the [Set] button is pressed, the selected value is replaced with the
adjusted one.
2.4 Production Data
0804-003
2-15
AJK-MLT-ID
2.4.2 Component Carriage Data Editing
This window enables the operator to check and change the component
carriage data for the production model.
[1] [2]
[3] [4]

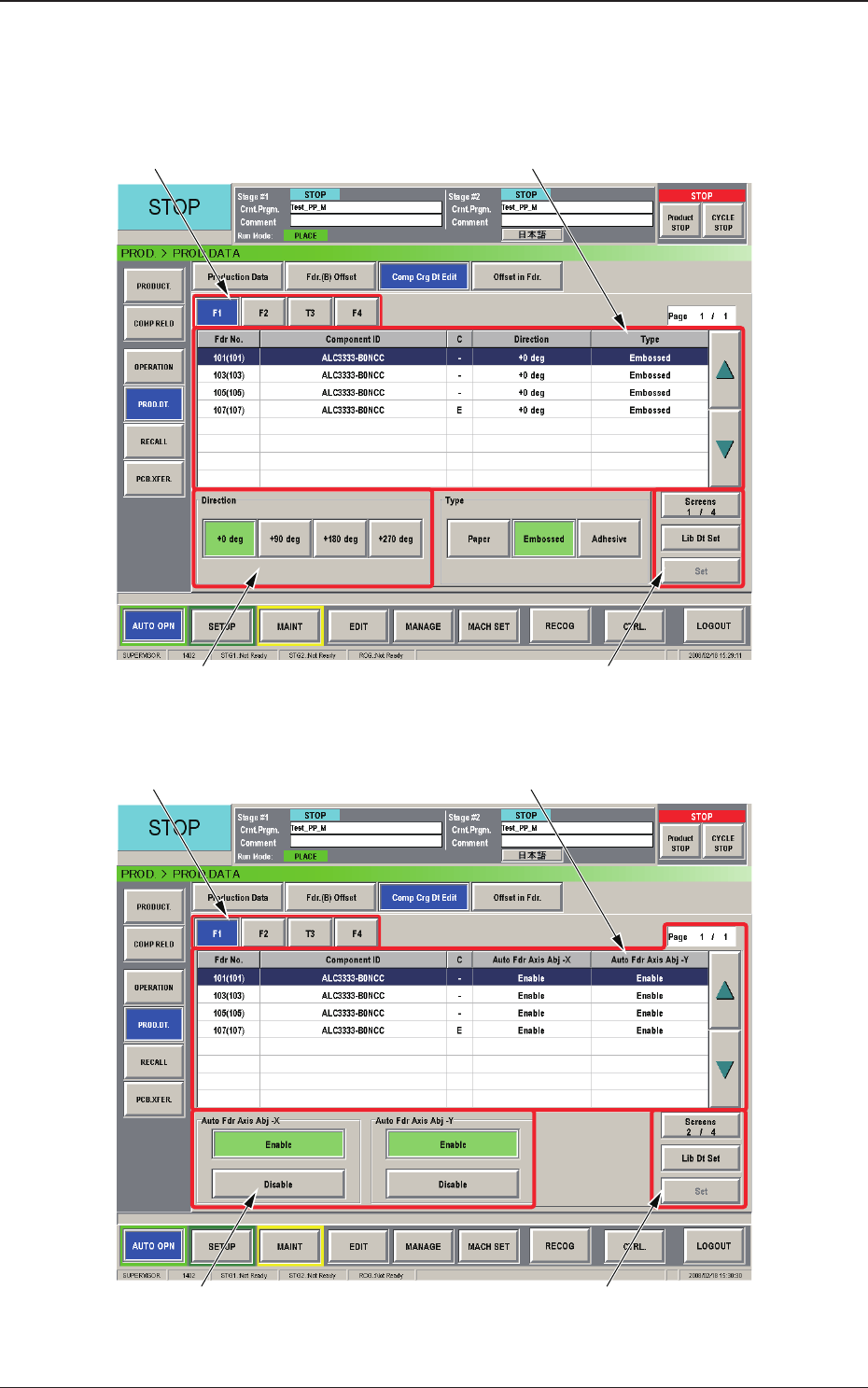

Fig. B8 "Comp Crg Dt Edit" Window (1/4)
[1] [2]
[3] [4]
Fig. B9 "Comp Crg Dt Edit" Window (2/4)
2.4 Production Data
0804-003
2-16
AJK-MLT-ID
[1] [2]
[3] [4]
Fig. B10 "Comp Crg Dt Edit" Window (3/4)
[1] [2]
[3] [4]
Fig. B10-1 "Comp Crg Dt Edit" Window (4/4)
