5-3 AJK-ML T-ID 0706-002 2.2 Elevator Section (FP-G200R) Symbol Name Symbol Name -M02 Elevator (Lower) Driving Motor -M03 Elevator (Upper) Driving Motor -B0202 Elevator U/D Approach Check -B0421 Lower Rack Shutter (Opera…
5-2
AJK-MLT-ID
0706-002
2. Layout of Sensors and Loads Frame Section (FP-G200R)
2. Layout of Sensors and Loads

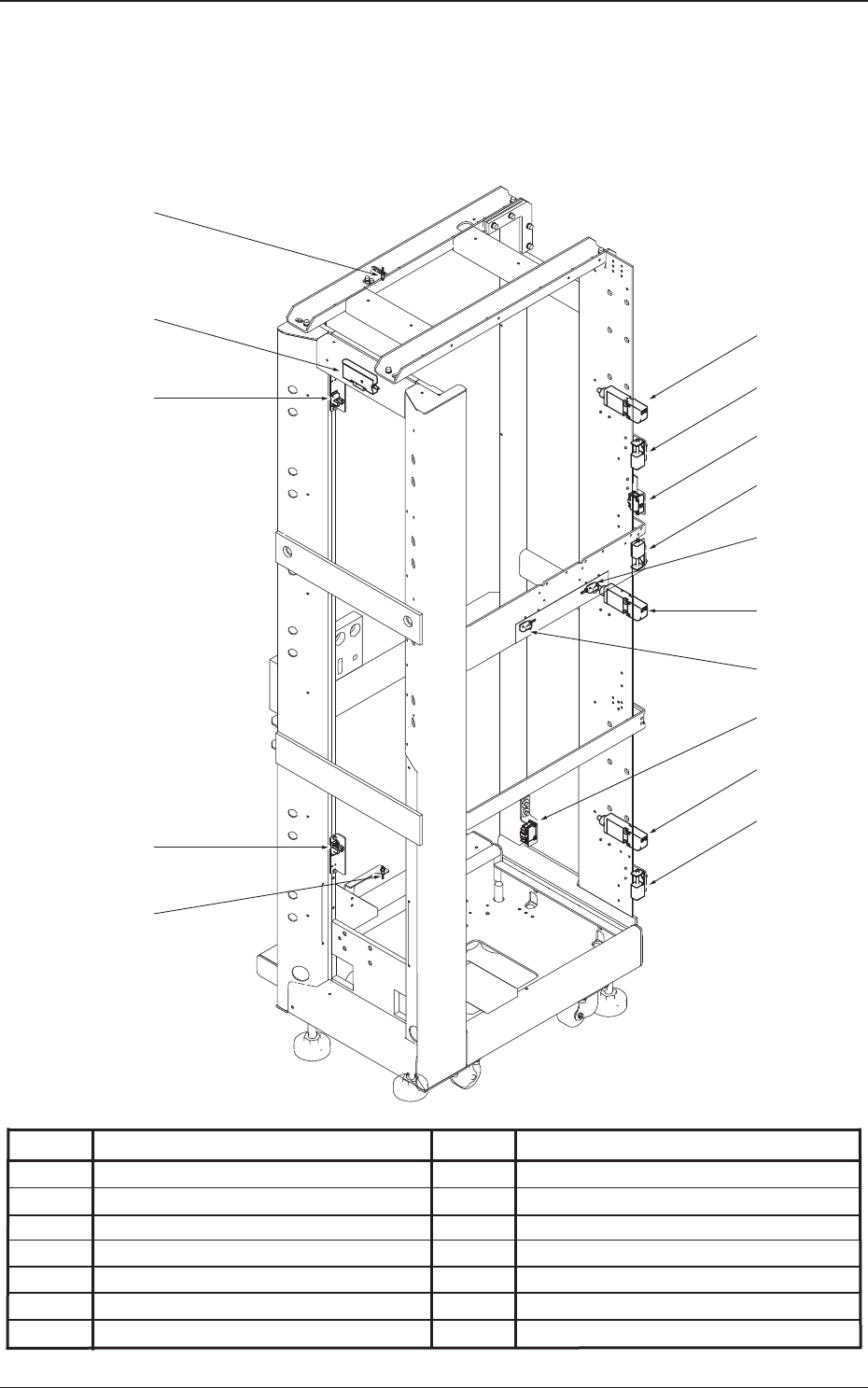

2.1 Frame Section (FP-G200R)
Symbol Name Symbol Name
-B0201
Elevator Limit (+)
-B0302
Elevator Limit (-)
-B0420
Ejected Pallet Detection
-B0420 Amp
Ejected Pallet Detection Amplifier
-S0501
Safety Door (Lower) Door Switch Detection
-S0502
Safety Door (Upper) Door Switch Detection
-S0503
Safety Door (Magazine) Door Switch Detection
-S0504
Maintenance Cover Open Detection LS1
-S0505
Maintenance Cover Open Detection LS2
-S0518
Missing Pallet (Return Position) Detection (Right)
-S0519
Missing Pallet (Return Position) Detection (Left)
-Y0101
Safety Door Lock (Lower)
-Y0102
Safety Door Lock (Upper)
-Y0103
Safety Door Lock (Magazine)
-Y0101
-S0519
-S0501
-S0503
-S0502
-S0504
-S0505
-Y0103
-Y0102
-S0518
-B0201
-B0420
-B0420 Amp
-B0420
-B0302
(Light Receiving)
(Light Emitting)
5-3
AJK-MLT-ID
0706-002

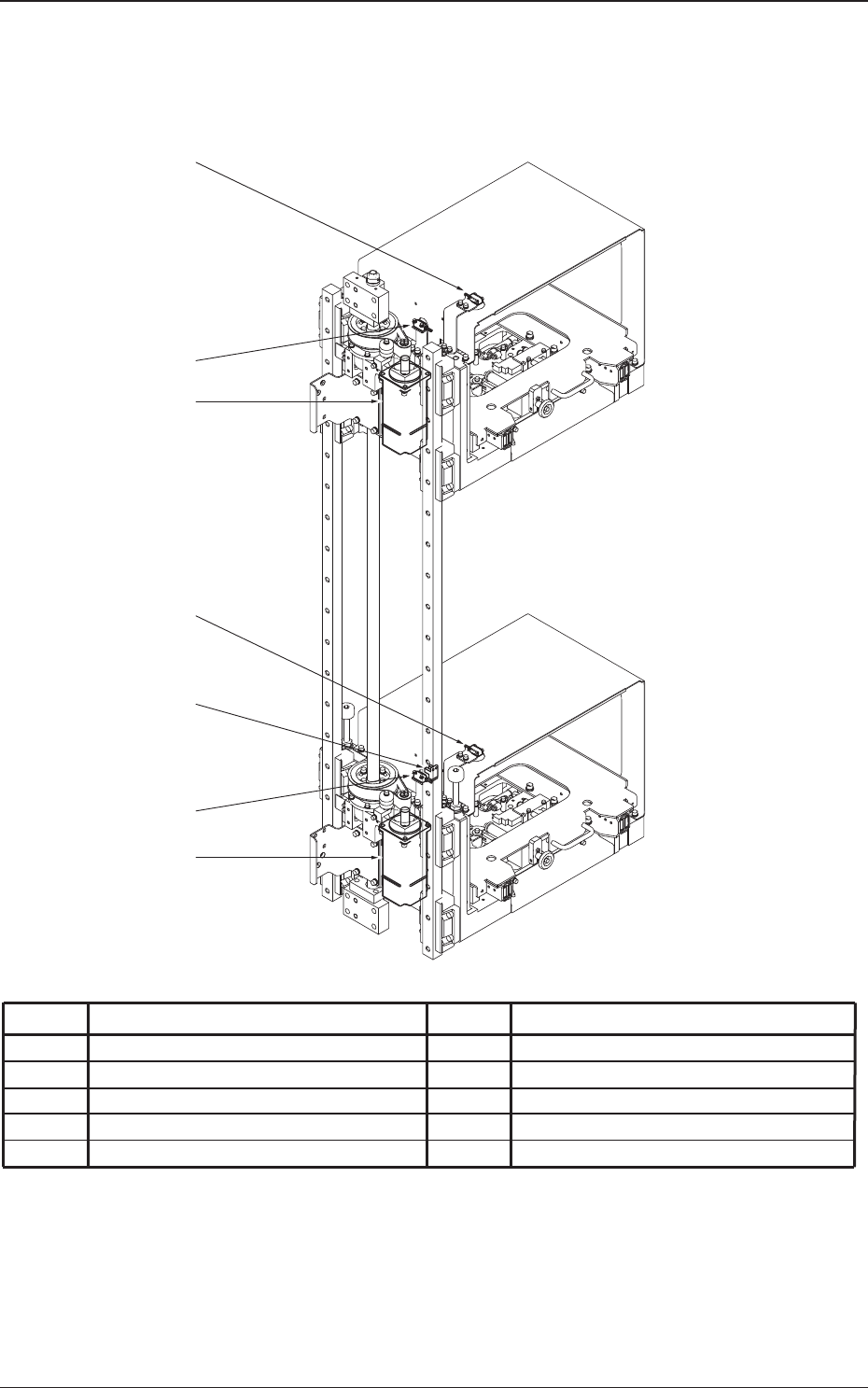

2.2 Elevator Section (FP-G200R)
Symbol Name Symbol Name
-M02
Elevator (Lower) Driving Motor
-M03
Elevator (Upper) Driving Motor
-B0202
Elevator U/D Approach Check
-B0421
Lower Rack Shutter (Operator Side) Closing Check
-B0427
Upper Rack Shutter (Operator Side) Closing Check
-B0512
Magazine (Lower) Type Determination
-B0515
Magazine (Upper) Type Determination
-B0427
-M02
-B0512
-B0202
-B0421
-M03
-B0515
2. Layout of Sensors and Loads Elevator Section (FP-G200R)
5-4
AJK-MLT-ID
0706-002

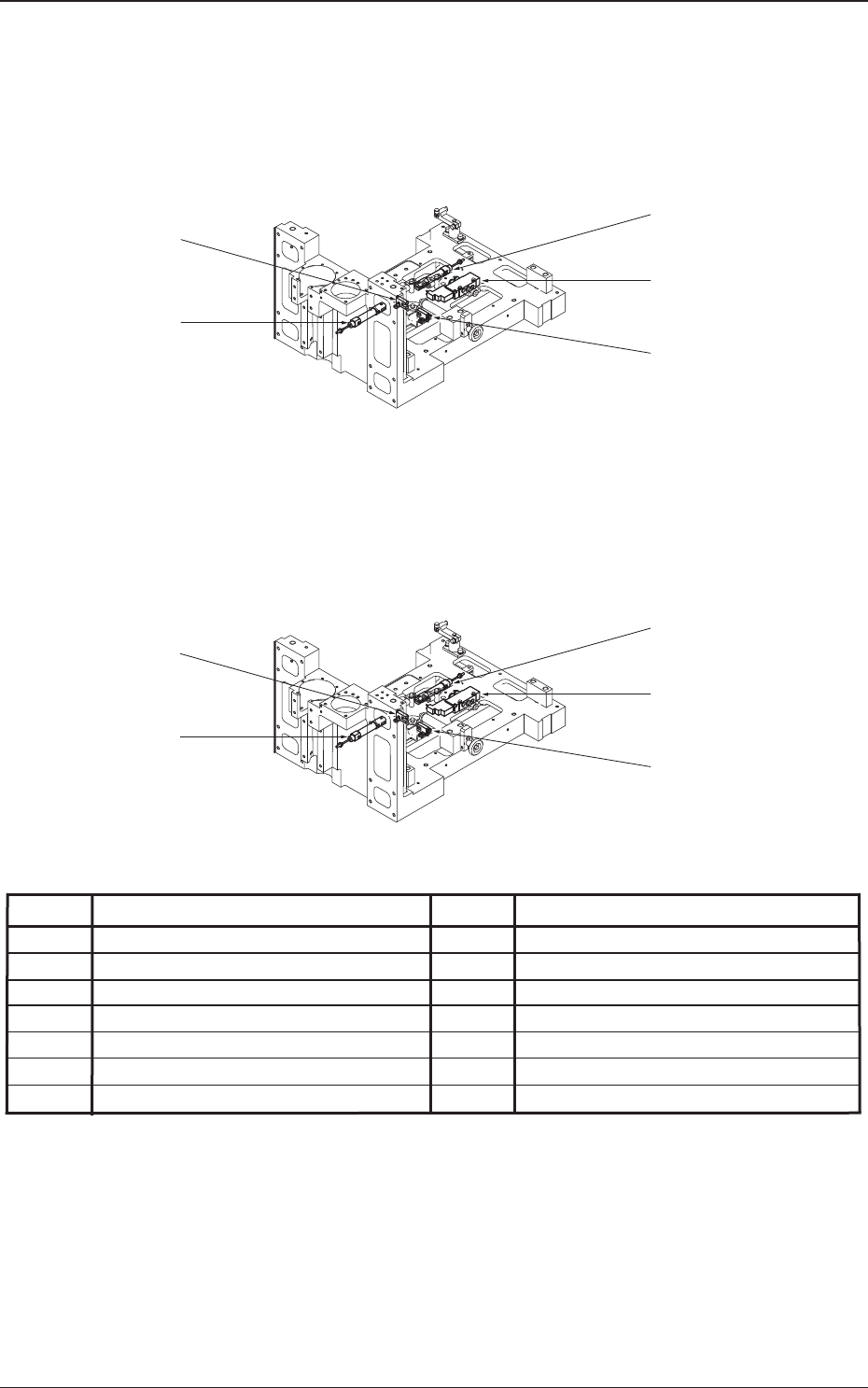

2.3 Rack Base Section (FP-G200R)
Symbol Name Symbol Name
-B0422
Traverse Side Rack Shutter (Lower) Opening Check 1
-B0423
Traverse Side Rack Shutter (Lower) Opening Check 2
-B0424 Traverse Side Rack Shutter (Lower) Closing Check 1
-B0425 Traverse Side Rack Shutter (Lower) Closing Check 2
-B0426 Magazine (Lower) Positioning Check
-B0428
Traverse Side Rack Shutter (Upper) Opening Check 1
-B0429
Traverse Side Rack Shutter (Upper) Opening Check 2
-B0430 Traverse Side Rack Shutter (Upper) Closing Check 1
-B0431 Traverse Side Rack Shutter (Upper) Closing Check 2
-B0432 Magazine (Upper) Positioning Check
-B0513
Magazine Stopper (Lower) Return Check
-B0516
Magazine Stopper (Upper) Return Check
-Y0532
Magazine (Lower) Rack Shutter Open/Close Valve
-Y0534
Magazine (Upper) Rack Shutter Open/Close Valve
-B0426
-B0428,-B0430
-B0432
-B0429,-B0431
-Y0534
-B0516
-B0423,-B0425
-Y0532
-B0513
-B0422,-B0424
(Lower Section)
(Upper Section)
2. Layout of Sensors and Loads Rack Base Section (FP-G200R)
